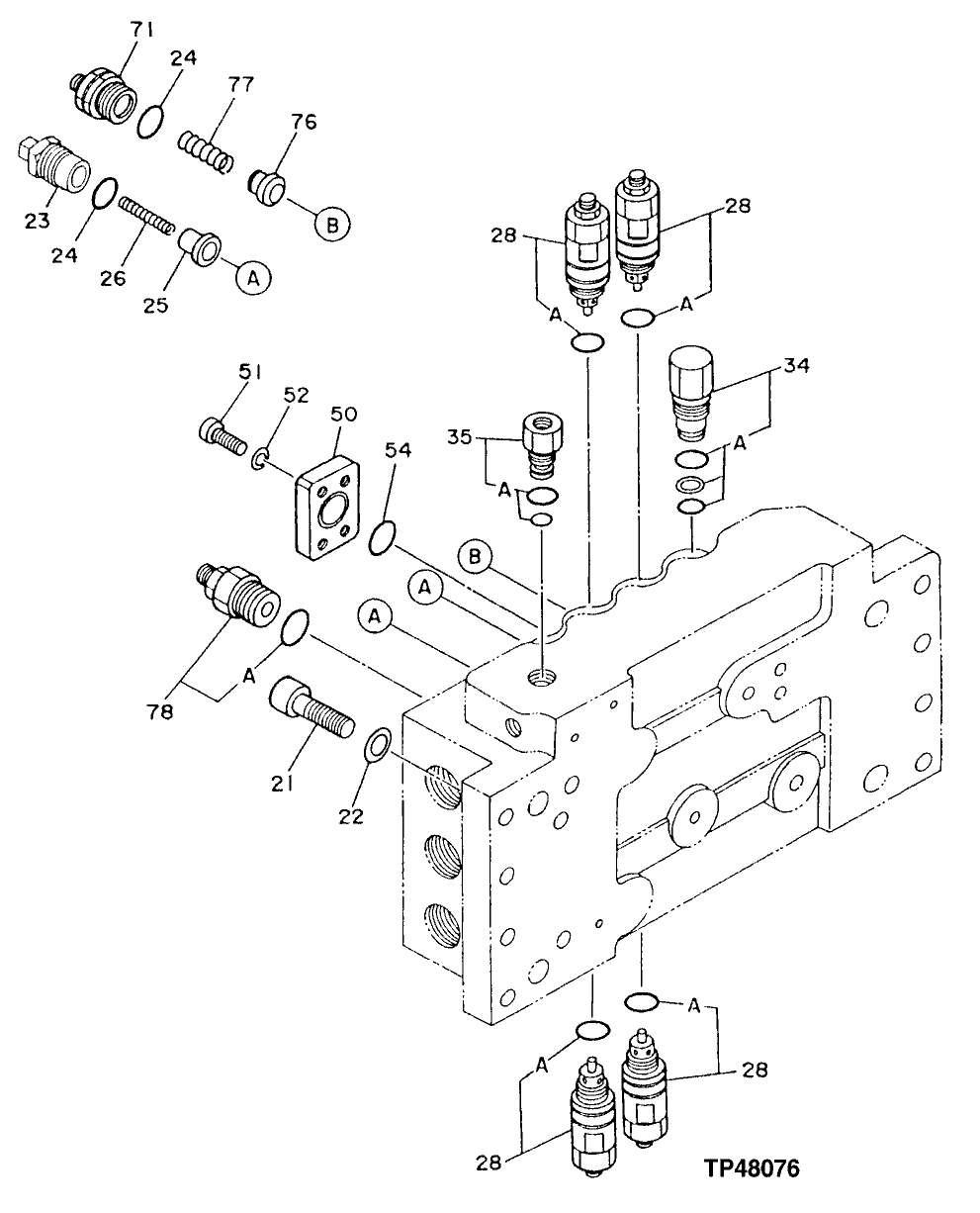

Запчасти John Deere 92DLC 172 - Control Valve 3360 HYDRAULIC SYSTEM

0

4224898

Hyd Actuated Control Valve

SUB FOR AT205874, AT186103 OR 4224898 EX Not Illustrated Contains All Items On This Page - Additional Components L isted On Previous and Following Pages

1шт.

21

0309602

Bolt

SUB FOR TH111964

8шт.

22

24M7113

Washer

17 X 28 X 3 mm

8шт.

23

0496323

Fitting Plug

SUB FOR AT204926

2шт.

24

U17409

O-Ring

26.594 X 2.946 mm

3шт.

25

0496312

Poppet

SUB FOR AT168183

2шт.

26

0224410

Spring

SUB FOR TH102729

2шт.

28

4228353

Pressure Relief Valve

SUB FOR TH111705

4шт.

28A

U12547

O-Ring

23.470 X 2.946 mm

1шт.

34

4378250

Fitting Plug

SUB FOR TH109976 OR AT177442

1шт.

34A

4257234

Seal Kit

SUB FOR TH112254 OR 4S00741

1шт.

35

0309712

Fitting Plug

SUB FOR TH109977

1шт.

35A

Seal Kit

SUB FOR TH112255, 4S00742 NLA

1шт.

4257235

Seal Kit

SUB FOR TH112255 OR 4S00742

1шт.

50

0309733

Strap

SUB FOR TH111921

1шт.

51

J901032

Screw

SUB FOR TH102040

4шт.

52

12M7066

Lock Washer

10 mm

4шт.

54

A4730R

O-Ring

24.994 X 3.531 mm

1шт.

71

0332204

Fitting Plug

SUB FOR TH111082

1шт.

76

0309729

Poppet

SUB FOR TH109999

1шт.

77

0224413

Spring

SUB FOR TH102749

1шт.

78

0309730

Check Valve

SUB FOR TH110000

1шт.

78A

U17409

O-Ring

26.594 X 2.946 mm

1шт.
