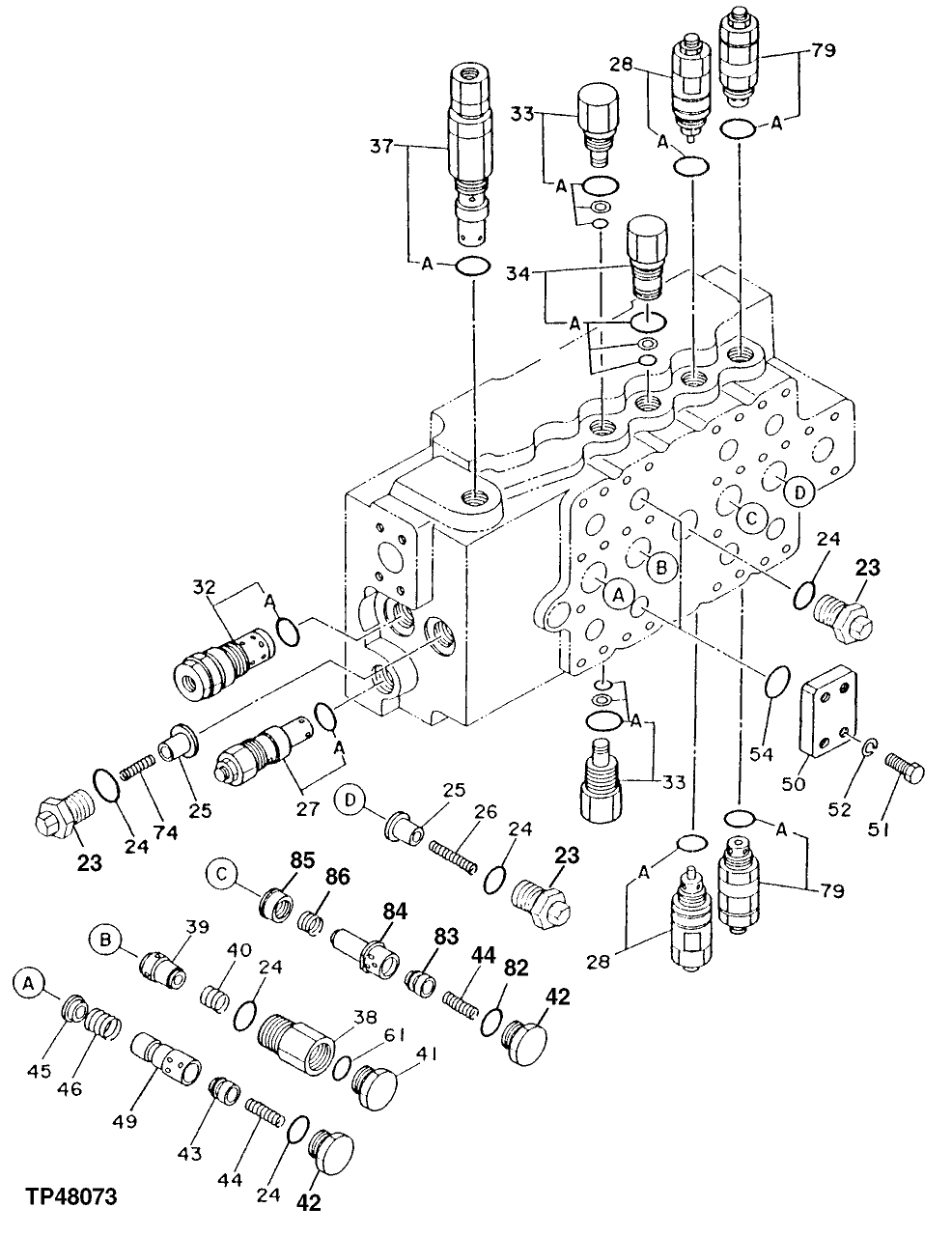

Запчасти John Deere 92DLC 171 - Control Valve 3360 HYDRAULIC SYSTEM

0

4224898

Hyd Actuated Control Valve

SUB FOR AT205874, AT186103 OR 4224898 EX Not Illustrated Contains All Items On This Page - Additional Components L isted On Previous and Following Pages

1шт.

23

0496323

Fitting Plug

SUB FOR AT204926

3шт.

24

U17409

O-Ring

26.594 X 2.946 mm

5шт.

25

0496312

Poppet

SUB FOR AT168183

2шт.

26

0459532

Spring

SUB FOR AT200930

1шт.

27

4239967

Pressure Relief Valve

SUB FOR AT205885

1шт.

27A

U12547

O-Ring

23.470 X 2.946 mm

1шт.

28

4228353

Pressure Relief Valve

SUB FOR TH111705

2шт.

28A

U12547

O-Ring

23.470 X 2.946 mm

1шт.

32

0309709

Pressure Relief Valve

SUB FOR TH109974

1шт.

32A

U17409

O-Ring

26.594 X 2.946 mm

1шт.

33

0667927

Fitting Plug

SUB FOR TH109975, AT177441 OR AT213687

2шт.

33A

4257233

Seal Kit

SUB FOR TH112253 OR 4S00740

1шт.

0413616

O-Ring

SUB FOR 4154207 Includ ed In Seal Kit 4257233

1шт.

34

4378250

Fitting Plug

SUB FOR TH109976 OR AT177442

1шт.

34A

4257234

Seal Kit

SUB FOR TH112254 OR 4S00741

1шт.

37

4228356

Pressure Relief Valve

SUB FOR TH111081 Dig

1шт.

37A

U12547

O-Ring

23.470 X 2.946 mm

1шт.

38

0309713

Fitting Plug

SUB FOR TH109978

1шт.

39

0309714

Poppet

SUB FOR TH109979

1шт.

40

0309715

Spring

SUB FOR TH109980

1шт.

41

0412310

Fitting Plug

SUB FOR AT154037

1шт.

42

0496324

Fitting Plug

SUB FOR AT204927

2шт.

43

0125107

Check Valve

SUB FOR TH109983

1шт.

44

0125108

Spring

SUB FOR TH109984

2шт.

45

0496316

Poppet

SUB FOR AT166924

1шт.

46

4237927

Spring

SUB FOR AT166925

1шт.

49

0496317

Sleeve

SUB FOR AT166922

1шт.

50

0309733

Strap

SUB FOR TH111921

2шт.

51

J901032

Screw

SUB FOR TH102040

8шт.

52

12M7066

Lock Washer

10 mm

8шт.

54

A4730R

O-Ring

24.994 X 3.531 mm

2шт.

61

AT318035

O-Ring

SUB FOR 4506424 OR TH100055

1шт.

74

0309728

Spring

SUB FOR TH109997

1шт.

79

4228354

Pressure Relief Valve

SUB FOR TH111707

2шт.

79A

U12547

O-Ring

23.470 X 2.946 mm

1шт.

82

U17409

O-Ring

26.594 X 2.946 mm

1шт.

83

0125107

Check Valve

SUB FOR TH109983

1шт.

84

0496309

Sleeve

SUB FOR AT200944

1шт.

85

0496311

Poppet

SUB FOR AT200946

1шт.

86

4237927

Spring

SUB FOR AT166925

1шт.
