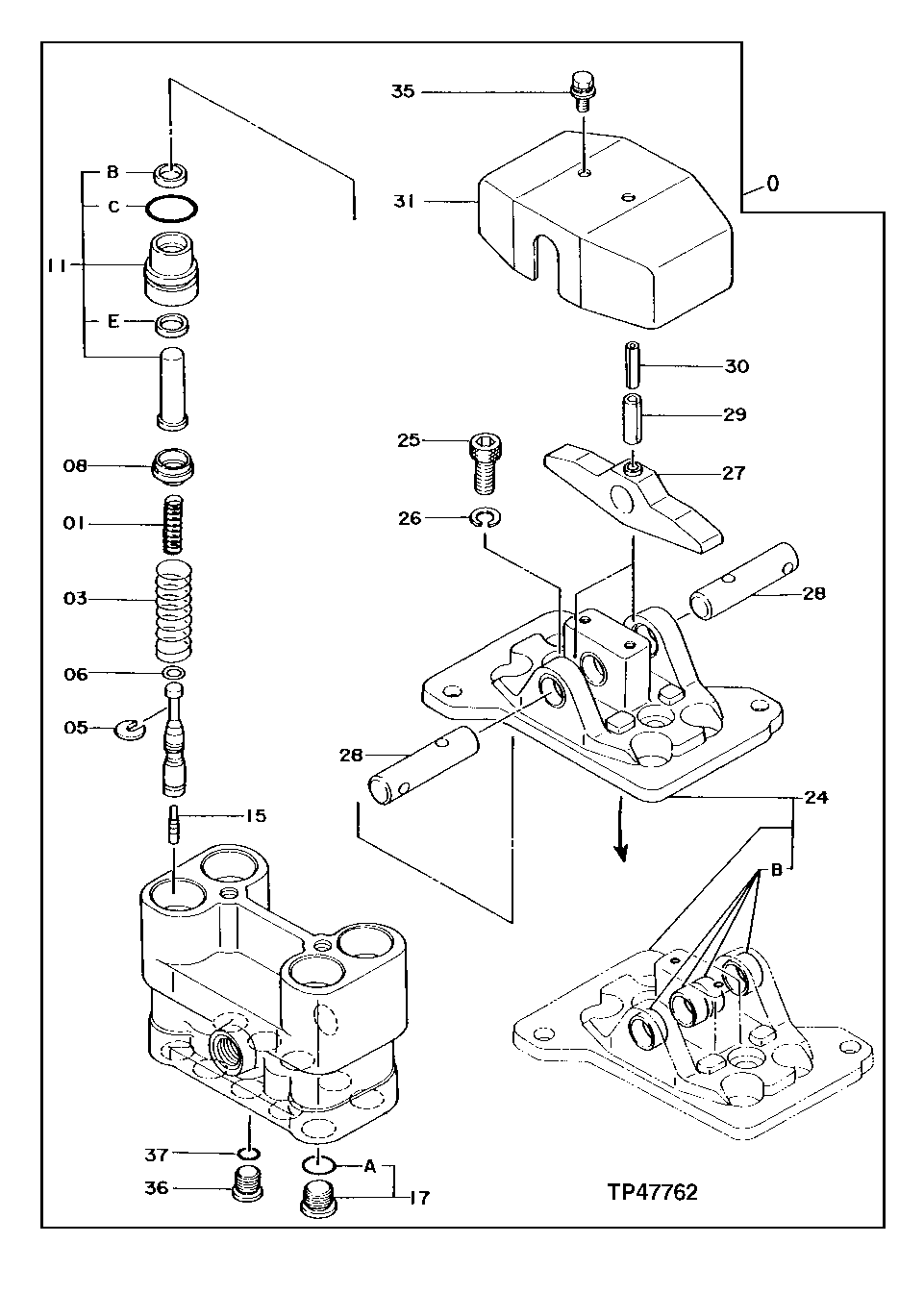

Запчасти John Deere 92DLC 162 - FOOT CONTROL PILOT VALVE 3315 Controls Linkage

0

9073404

Hyd Actuated Control Valve

(SUB FOR AT128307)

1шт.

1

4203421

Spring

(SUB FOR TH109235)

4шт.

3

4203413

Compression Spring

(SUB FOR TH109236)

4шт.

5

4177777

Spacer

(SUB FOR TH109216)

4шт.

6

4173208

Shim

(SUB FOR TH109217)

20шт.

8

4203412

Guide

(SUB FOR TH109237)

4шт.

11

9089355

Plunger

(SUB FOR AT128176)

4шт.

11B

4240150

Seal

(SUB FOR TH111960)

1шт.

11C

U46166

O-Ring

24.400 X 3.100 mm

1шт.

11E

4240151

Seal

(SUB FOR TH109224)

1шт.

15

4184929

Piston

(SUB FOR TH109228)

4шт.

17

9111583

Fitting Plug

(SUB FOR AT134350)

4шт.

17A

CH10570

O-Ring

1шт.

24

9085785

Holder

(SUB FOR TH111961)

1шт.

24B

4238834

Bushing

16.073 X 18.073 X 10 mm (SUB FOR TH111963)

4шт.

25

19M8440

Screw

M10 X 25

2шт.

26

12M7066

Lock Washer

10 mm

2шт.

27

3035803

Cam

(SUB FOR TH109243)

2шт.

28

4190983

Pin Fastener

16 X 68 mm (SUB FOR TH109244)

2шт.

29

34M7225

Spring Pin

8 X 28 mm (SUB FOR 34M6402)

2шт.

30

4213419

Spring Pin

4.750 X 28 mm (SUB FOR TH111654)

2шт.

31

2022964

Cover

(SUB FOR TH109246)

1шт.

35

19M8425

Cap Screw

M6 X 16

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

36

4208977

Drain Plug

(SUB FOR TH111351)

2шт.

37

CH11561

Packing

2шт.
