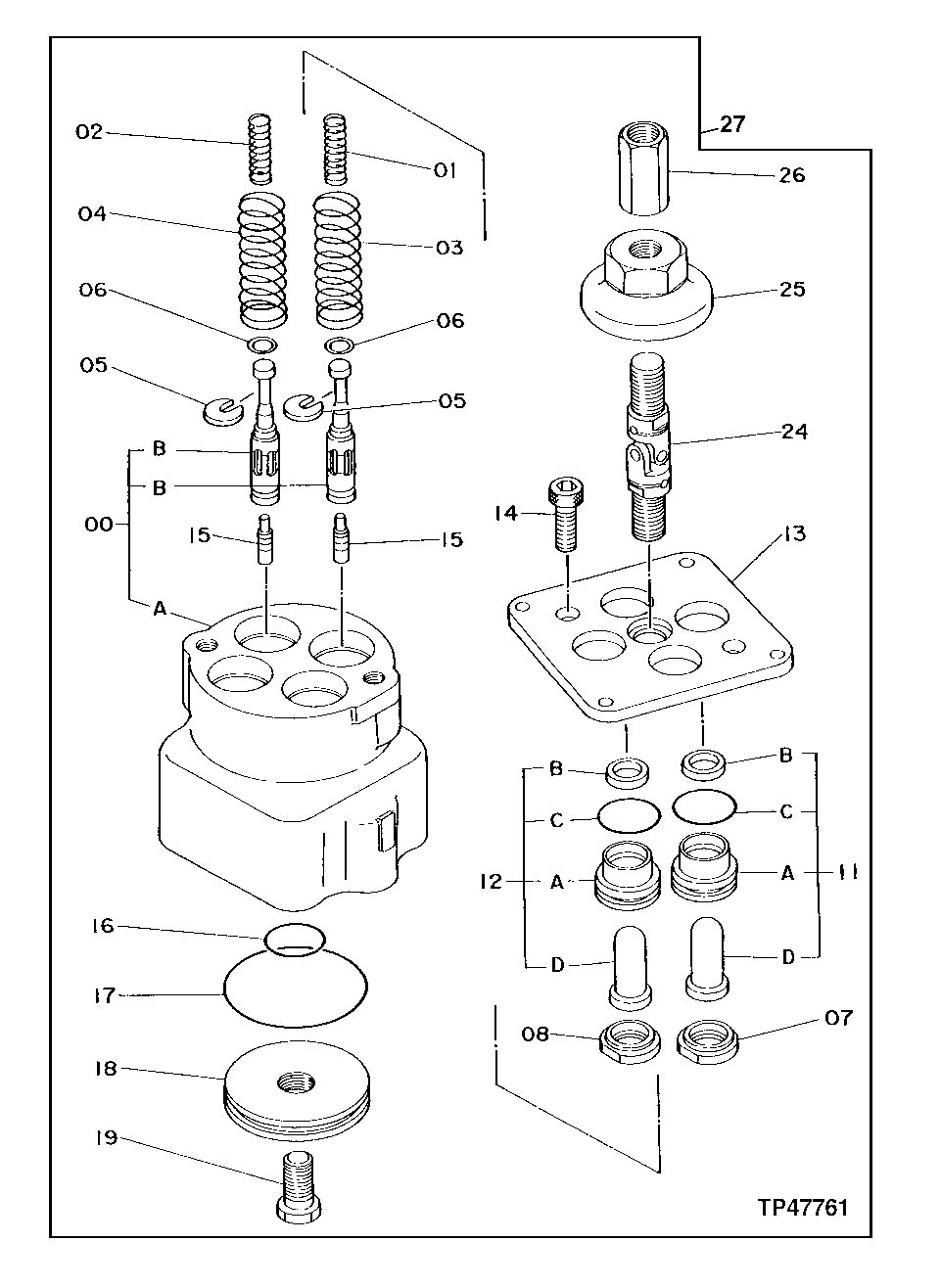

0
Case
( TH109211 NOT AVAILABLE FOR SERVICE)
1шт.
0A
Housing
(NOT AVAILABLE FOR SERVICE)
1шт.
0B
Spool
(NOT AVAILABLE FOR SERVICE)
4шт.
1
4201915
Spring
(SUB FOR TH109212)
2шт.
2
4166686
Compression Spring
(SUB FOR TH109213)
2шт.
3
4195421
Compression Spring
(SUB FOR TH109214)(USE W ITH ORIGINAL PILOT VALVE)
2шт.
4210793
Compression Spring
(USE WITH AT189840 PILOT VALVE) (SUB FOR AT134060)
2шт.
4
4186544
Compression Spring
(SUB FOR TH109215)(USE W ITH ORIGINAL PILOT VALVE)
2шт.
4210794
Compression Spring
(USE WITH AT189840 PILOT VALVE) (SUB FOR AT134061)
2шт.
5
4177777
Spacer
(SUB FOR TH109216)
4шт.
6
4173208
Shim
(SUB FOR TH109217)
20шт.
7
4179257
Guide
(SUB FOR TH109219)(1, 3 PORT)
2шт.
8
4177896
Guide
(SUB FOR TH109218)(2, 4 PORT)
2шт.
11
9104359
Plunger
(SUB FOR AT131267)
2шт.
11A
3052332
Bushing
(SUB FOR AT131268)
1шт.
11B
4476342
Seal
(SUB FOR AT131269, 4359926)
1шт.
11C
U46166
O-Ring
24.400 X 3.100 mm
1шт.
11D
3050142
Plunger
(SUB FOR AT131270)
1шт.
12
9104360
Plunger
(SUB FOR AT131271)
2шт.
12A
3052332
Bushing
(SUB FOR AT131268)
1шт.
12B
4476342
Seal
(SUB FOR AT131269, 4359926)
1шт.
12C
U46166
O-Ring
24.400 X 3.100 mm
1шт.
12D
3050143
Plunger
(SUB FOR AT131272)
1шт.
13
4284175
Plate
(SUB FOR AT131273)
1шт.
14
19M8440
Screw
M10 X 25
2шт.
15
4184929
Piston
(SUB FOR TH109228)
4шт.
16
CH11562
O-Ring
1шт.
17
CH11571
Packing
1шт.
18
4184954
Plate
(SUB FOR TH109229)(USE W ITH ORIGINAL PILOT VALVE)
1шт.
4284024
Plate
(USE WITH AT131277 OR AT189840 PILOT VALVE) (SUB FOR AT131276)
1шт.
19
19M8168
Screw
M12 X 25
1шт.
24
4285209
Universal Joint
(SUB FOR TH109230)
1шт.
25
4184931
Cam
(SUB FOR TH109231)
1шт.
26
4182067
Jointer
(SUB FOR TH109232)
1шт.
27
AT131277
Valve
NLA, (ORDER AT189840)
1шт.
AT189840
Hyd/Pilot Cntl Valve Reman
(USE AT131277 IF AVAILABLE) ( AT13126 6 NOT AVAILABLE) (REMAN FOR AT131277)
1шт.
AT189840
Hyd/Pilot Cntl Valve Reman
(USE AT131277 IF AVAILAB LE) (REMAN FOR AT131277)
1шт.
