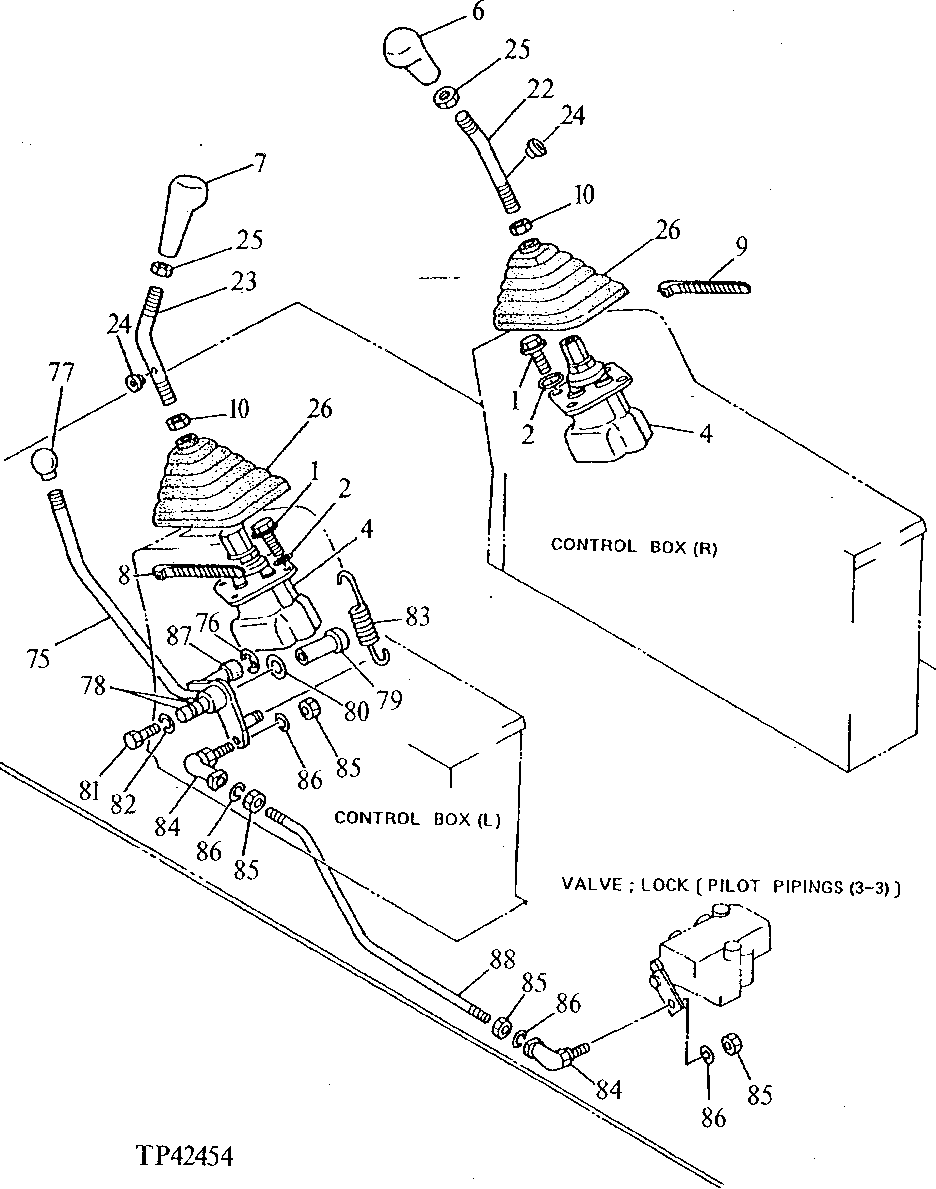

Запчасти John Deere 92DLC 156 - Control Lever 3315 Controls Linkage

1

19M8425

Cap Screw

M6 X 16

8шт.

2

12M7006

Lock Washer

6 mm

8шт.

4

AT131277

Valve

NLA, ORDER AT189840)

2шт.

AT189840

Hyd/Pilot Cntl Valve Reman

(USE AT131277 IF AVAILABLE) (PILOT) (REMAN FOR AT131277)

1шт.

6

4240686

Grip

(SUB FOR AT126858)(INCLU DES MOTION ALARM SWITCH)

1шт.

7

4196694

Grip

(SUB FOR TH108368)INCLUDES HORN SWITCH

1шт.

8

H77698

Tie Band

1шт.

9

H77698

Tie Band

1шт.

10

14M7141

Nut

M14

2шт.

22

8038794

Lever

(SUB FOR TH108370)

1шт.

23

8038794

Lever

(SUB FOR TH108370)

1шт.

24

487081

Grommet

(SUB FOR TH108081)

2шт.

25

14M7357

Nut

M12 (SUB FOR TH108372 OR 4201107)

2шт.

26

Boot

(SUB FOR TH108373)( 2024493 NLA)

2шт.

75

8039825

Lever

(SUB FOR AT114995)

1шт.

76

40M7088

Snap Ring

1шт.

77

4143169

Knob

(SUB FOR TH100268)

1шт.

78

TH100248

Needle Bearing

2шт.

79

4191973

Pin

(SUB FOR TH108391)

1шт.

80

24M7053

Washer

17 X 30 X 3 mm

1шт.

81

19M8451

Cap Screw

M10 X 14

1шт.

82

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

83

4189184

Extension Spring

(SUB FOR TH108392)

1шт.

84

T110021

Ball Joint Socket

2шт.

85

14M7273

Nut

M8

4шт.

86

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

87

4203482

Bushing

(SUB FOR TH108395)

1шт.

88

4205617

Rod

(SUB FOR TH108396)

1шт.
