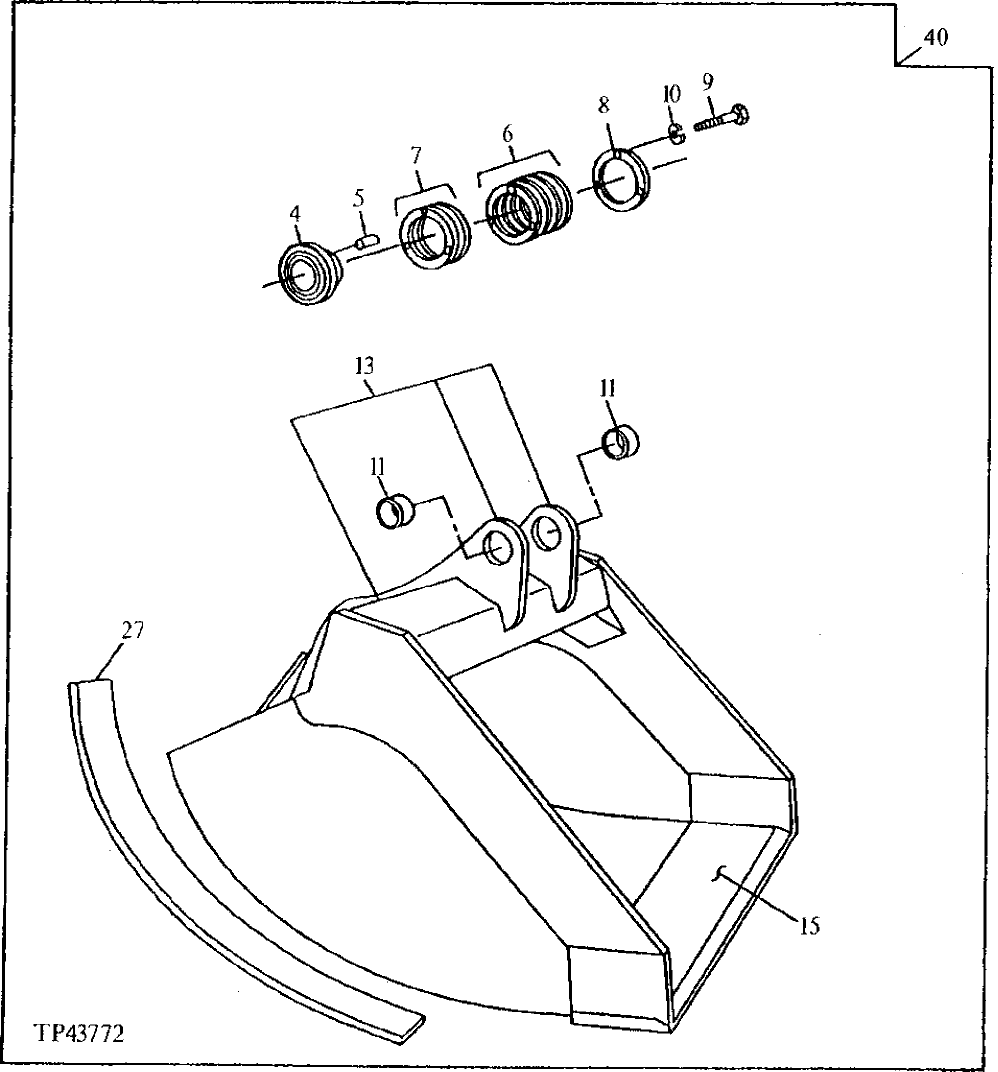

Запчасти John Deere 92DLC 144 - Ditch Cleaning Bucket 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

4

AT131084

Bushing

1шт.

5

R48685

Dowel Pin

1шт.

6

TH102460

Washer

(1.0 MM)

6шт.

7

TH102461

Shim

(0.5 MM)

2шт.

8

TH102463

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH102409

Bushing

2шт.

13

C610778

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

15

Cutting Edge

(CUT TO LENGTH FROM AT131089 BULK MATERIAL)

1шт.

27

300292

Bar

(F) (WEAR)

4шт.

40

Excavator Bucket

(F) (SUB AT332717)( AT160745NLA) WHOLEGOODS (60 INCH, 1.34 CU. YD.)

1шт.

Excavator Bucket

(F) ( AT160746 NLA) WHOLEG OODS (72 INCH, 1.66 CU. YD.)

1шт.
