Запчасти John Deere 92DLC 142 - Severe Duty Plate Lip Bucket 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

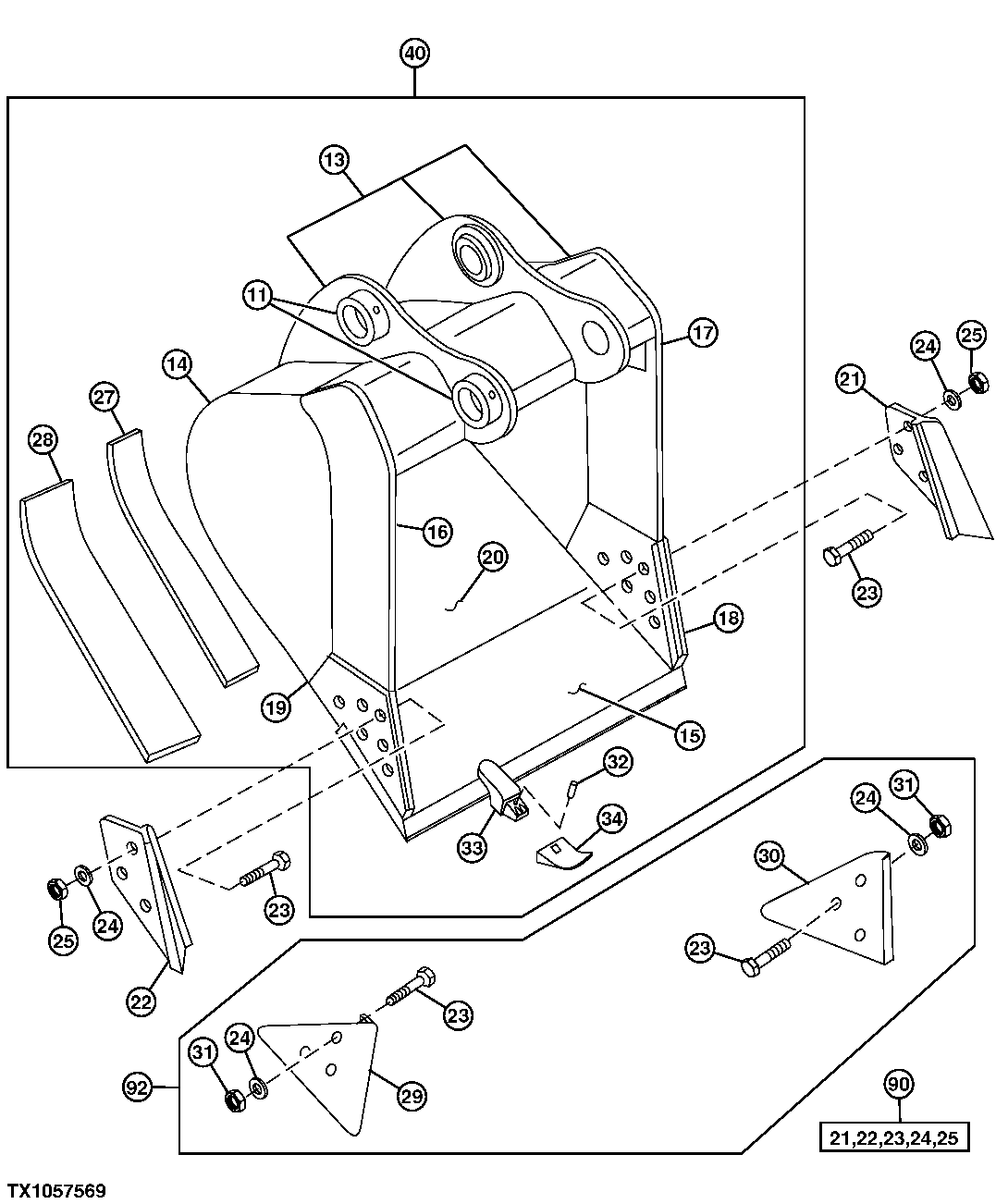

Схема запчастей John Deere 92DLC - 142 - Severe Duty Plate Lip Bucket 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

Артикул

Название

Примечание

Количество

4

AT131084

Bushing

1шт.

5

R48685

Dowel Pin

1шт.

6

TH102460

Washer

(1 MM)

6шт.

7

TH102461

Shim

(.5 MM)

2шт.

8

TH102463

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH102409

Bushing

2шт.

13

C603692

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

304371

Plate

(F) (RH / LH)

2шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

304368

Vertical Cutter

(F) (UPPER RH)

1шт.

17

304367

Vertical Cutter

(F) (UPPER LH)

1шт.

18

304369

Vertical Cutter

(F) (LH)

1шт.

19

304370

Vertical Cutter

(F) (RH)

1шт.

20

603868

Moldboard

(F) (30 INCH)

1шт.

603869

Moldboard

(F) (36 INCH)

1шт.

603870

Moldboard

(F) (42 INCH)

1шт.

21

Cutting Edge

(K) (SUB AT131085)

1шт.

22

Cutting Edge

(K) (SUB AT131085)

1шт.

23

09H1771

Bolt

(K) 7/8" X 3" (K2)

6шт.

24

12H245

Lock Washer

(K) 7/8" (K2)

6шт.

25

14H1077

Nut

(K) 7/8"

6шт.

27

603873

Bar

(F) (WEAR)(30 INCH)

1шт.

603874

Bar

(F) (WEAR)(36 INCH)

1шт.

603875

Bar

(F) (WEAR)(42 INCH)

1шт.

29

Shroud

(WEAR) (SUB AT167876 (K2))

1шт.

30

Shroud

(WEAR) (SUB AT167876 (K2))

1шт.

31

14H1044

Nut

7/8" (K2)

6шт.

32

TP400HD

Pin

ARшт.

33

T802X400

Bucket Tooth Adapter

ARшт.

34

TF400

Tooth

ARшт.

40

Excavator Bucket

(30 INCH- .95 CUBIC YARD) ( AT131046, AT131166, AT163645 OR AT332714 NLA)

1шт.

Excavator Bucket

(36 INCH - 1.16 CUBIC YARD) ( AT131047, AT131167, AT163646 OR AT332715 NLA)

1шт.

Excavator Bucket

(42 INCH - 1.38 CUBIC YARD) ( AT131048, AT131168, AT163647 OR AT332716 NLA)

1шт.

90

Kit

INCLUDES ALL (K) PARTS (SIDE CUTTER KIT) ( AT131085 NLA)

1шт.

91

Kit

INCLUDES ALL (K2) PARTS (EDGE PROTECTOR KIT) ( AT167876 NLA)

1шт.

Выбрано товаров: 37
