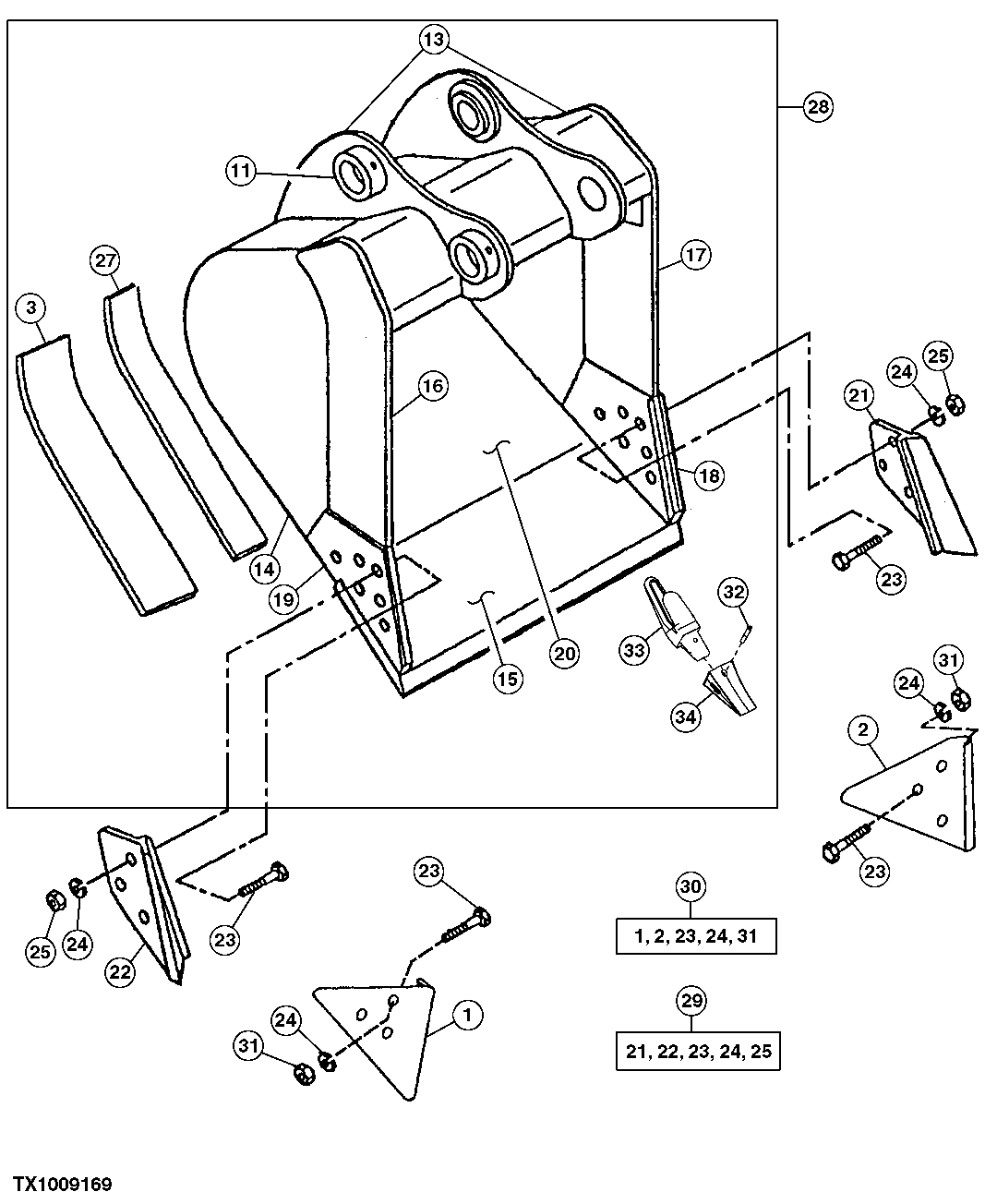

Запчасти John Deere 92DLC 139 - Heavy Duty High Capacity Bucket 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

1

Shroud

RH

1шт.

2

Shroud

LH

1шт.

3

304559

Bar

Wear; Outer

2шт.

11

TH102409

Bushing

2шт.

13

C603692

Pivot

Bucket Ear Blank Assembly

1шт.

14

306995

Plate

RH / LH

2шт.

15

AT131097

Dura-Max Cutting Edge

Cut To Length; 72"

1шт.

T154189

Dura-Max Cutting Edge

Cut To Length; 42"

1шт.

T154188

Dura-Max Cutting Edge

Cut To Length; 36"

1шт.

16

300283

Vertical Cutter

Upper RH

1шт.

17

300284

Vertical Cutter

Upper LH

1шт.

18

304568

Vertical Cutter

LH

1шт.

19

304567

Vertical Cutter

RH

1шт.

20

600171

Moldboard

Upper; 20 Inch

1шт.

600172

Moldboard

Upper; 36 Inch

1шт.

600173

Moldboard

Upper; 42 Inch

1шт.

600166

Moldboard

Lower; 30 Inch

1шт.

600167

Moldboard

Lower; 36 Inch

1шт.

600168

Moldboard

Lower; 42 Inch

1шт.

21

Cutting Edge

LH

1шт.

22

Cutting Edge

RH

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300291

Bar

Wear; Inner

2шт.

28

AT339182

Excavator Bucket

AT332709 NLA; 24 Inch - .92 Cubic Yard; Requires 3 Teeth

1шт.

Excavator Bucket

SUB FOR(1) AT339184; AT332710 NLA; 30 I nch - 1.20 Cubic Yard; Requires 4 Teeth

1шт.

AT339189

Excavator Bucket

AT332711 NLA; 36 Inch - 1.48 Cubic Yard; Requires 4 Teeth

1шт.

AT339191

Excavator Bucket

AT332712 NLA; 42 Inch - 1.75 Cubic Yard; Requires 5 Teeth

1шт.

29

End Bit

AT131085 NLA; Side Cutter K it; Includes Parts Marked A

1шт.

30

Kit

AT167876 NLA; Edge Protector Kit; Includes Parts Marked B

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TP400HD

Pin

ARшт.

33

T802X400

Bucket Tooth Adapter

ARшт.

34

TF400

Tooth

ARшт.
