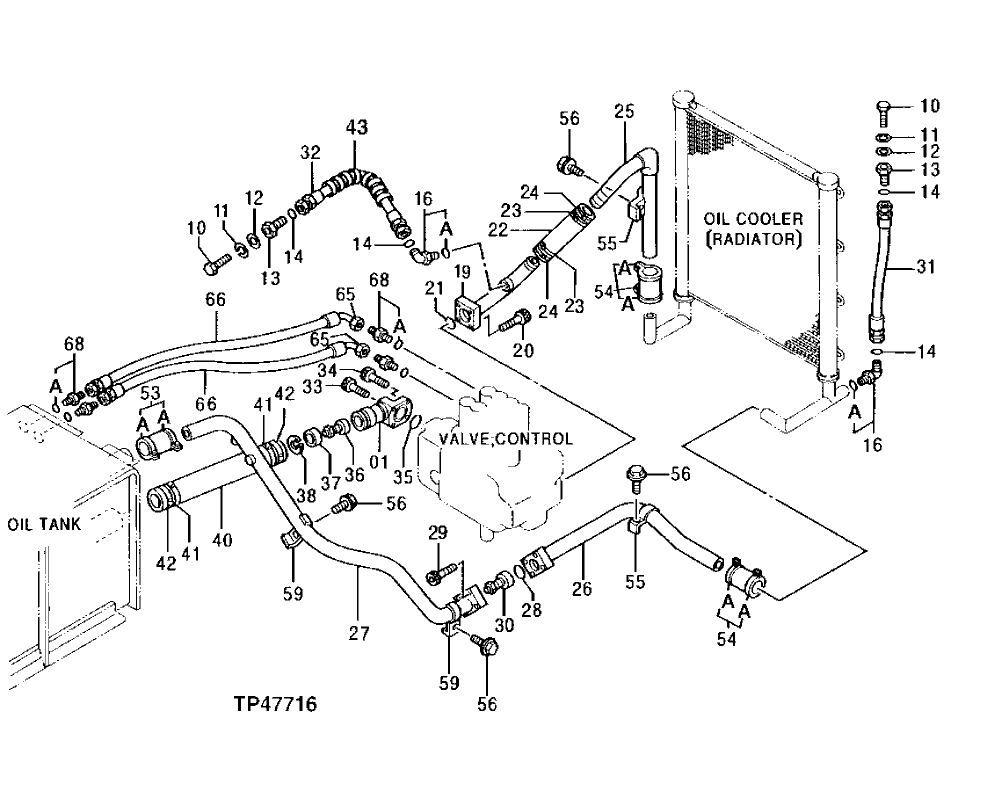

Запчасти John Deere 92DLC 134 - OIL COOLER PIPINGS 2160 HYDRAULIC SYSTEM

1

2022811

Coolant Manifold

(SUB FOR TH109525)

1шт.

10

19M8011

Cap Screw

2шт.

11

12H301

Lock Washer

2шт.

12

24M7047

Washer

2шт.

13

4204882

Fitting Plug

(SUB FOR TH109541)

2шт.

14

T77858

O-Ring

4шт.

16

4157562

Elbow Fitting

(SUB FOR TH109540)

2шт.

16A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

19

9728575

Line

(SUB FOR TH109527)

1шт.

20

19M8447

Screw

4шт.

21

A811040

O-Ring

(SUB FOR TH102992)

1шт.

22

TY24405

Bulk Hose

(SUB FOR TH101919, 4080206)

1шт.

23

TY22470

Clamp

(SUB FOR AR65293)

2шт.

24

RE25110

Clamp

2шт.

25

8064681

Line

(SUB FOR AT205802)

1шт.

26

8064708

Line

(SUB FOR AT205807)

1шт.

27

7030803

Line

(SUB FOR AT205791)

1шт.

28

A811045R

O-Ring

(SUB FOR T74492 OR A811045)

1шт.

29

19M8489

Screw

4шт.

30

4204745

Flow Control Hyd. Valve

(SUB FOR TH109531)

1шт.

31

4218424

Hydraulic Hose

(SUB FOR AT206052)

1шт.

32

TH111008

Hydraulic Hose

1шт.

33

19M8441

Screw

2шт.

34

M341022

Screw

(SUB FOR TH105695)

2шт.

35

A811040

O-Ring

(SUB FOR TH102992)

1шт.

36

4188627

Flow Control Hyd. Valve

(SUB FOR TH108305)

1шт.

37

4188628

Ring

(SUB FOR TH108306)

1шт.

38

40M1864

Snap Ring

1шт.

40

4120294

Hose

(SUB FOR TH109526)

1шт.

41

AT39141

Hose Clamp

2шт.

42

TY22472

Clamp

(SUB FOR AT145651)

2шт.

43

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

1шт.

53

4067834

Coupling

(SUB FOR TH102945)

1шт.

53A

4196260

Seal

(SUB FOR TH106967)

2шт.

54

4069801

Coupling

(SUB FOR TH101915 AND 4712341)

2шт.

54A

4196259

Seal

(SUB FOR TH106966)

2шт.

55

4053698

Clamp

(SUB FOR TH101936)

2шт.

56

12H301

Lock Washer

4шт.

19M7753

Cap Screw

4шт.

59

4053697

Clamp

(SUB FOR TH101030)

2шт.

65

AH89069

Elbow Fitting

2шт.

66

AE42282

Hydraulic Hose

2шт.

68

4200465

Adapter Fitting

(SUB FOR TH108328)

4шт.

68A

M800650

Packing

1шт.
