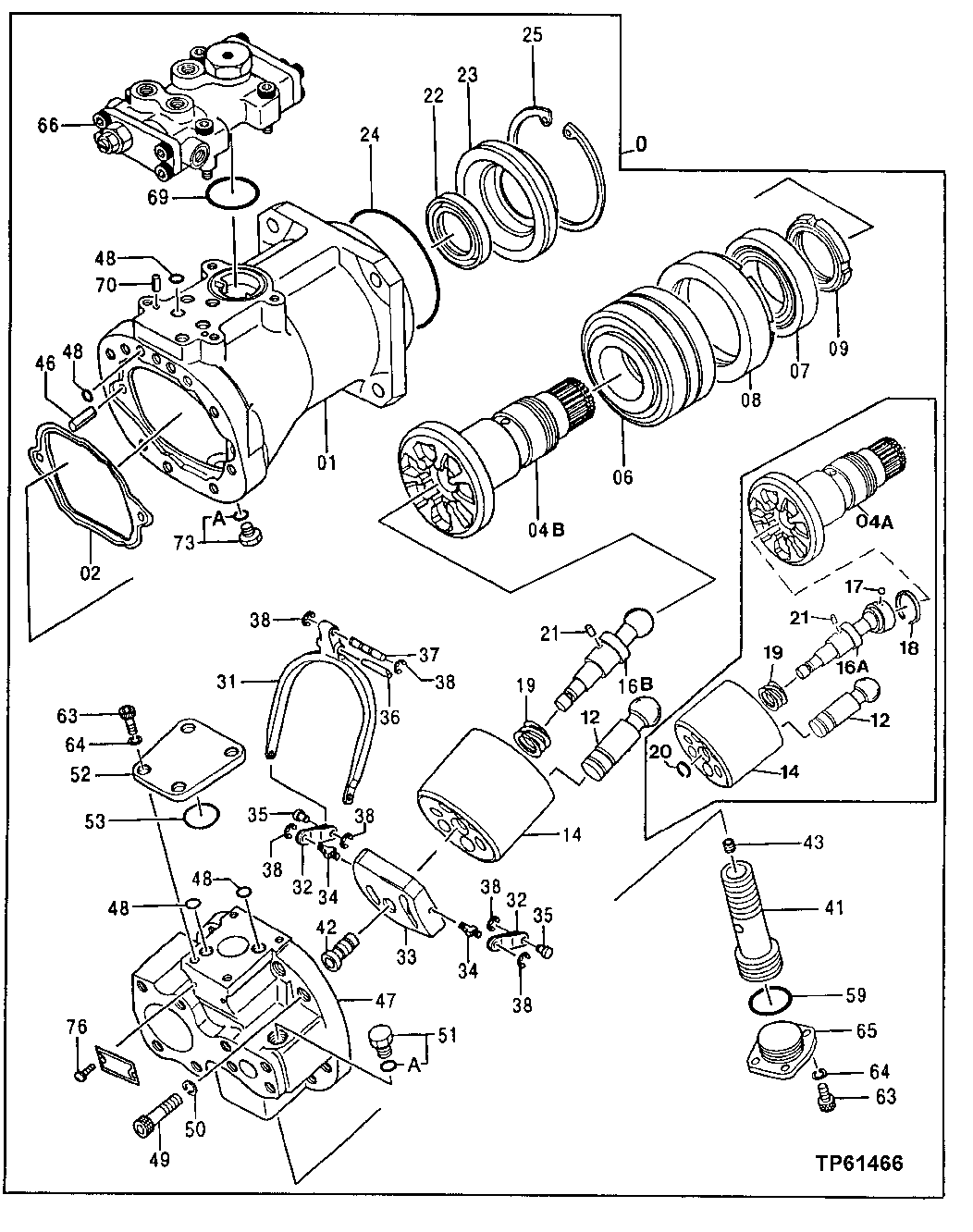

Запчасти John Deere 92DLC 130 - PUMP, SINGLE 2160 HYDRAULIC SYSTEM

0

9077555EX

Hydraulic Pump Reman

(USE IF AVAILABLE) (SUB AT217339)

1шт.

9077555EX

Hydraulic Pump Reman

(REMAN FOR 9077555 AND AT205808)

1шт.

1

Housing

(NOT AVAILABLE FOR SERVICE)

1шт.

2

8068521

Gasket

(SUB FOR TH112240 ) (SUB FOR AT250202)

1шт.

4A

2038877

Shaft

(SUB FOR TH111112, AT219590 AND AT219647)

1шт.

4B

2038877

Shaft

(SUB FOR AT219590)

1шт.

6

TH111233

Tapered Roller Bearing

1шт.

7

JD37194

Tapered Roller Bearing

1шт.

8

3035965

Spacer

(SUB FOR TH111140)

1шт.

9

4191665

Nut

M65 (SUB FOR TH111236)

1шт.

12

8051275

Piston

(SUB FOR AT203603)

7шт.

14

2022744

Rotor

(SUB FOR TH111111)

1шт.

16A

Shaft

( 8035539 NO LONGER AVAILABLE) (F URNISH 3081023 AND 2038877) (SUB F OR TH111473, AT219647 AND AT219590 )

1шт.

16B

3081023

Shaft

(SUB FOR AT219647)

1шт.

17

L38718

Ball

6 mm

1шт.

18

4191667

Snap Ring

(SUB FOR TH111238)

1шт.

19

4194362

Compression Spring

(SUB FOR TH111266)

1шт.

20

4193062

Snap Ring

(SUB FOR TH111251)

1шт.

21

4198956

Pin Fastener

5 X 10 mm (SUB FOR T107766)

1шт.

22

4639126

Seal

(SUB FOR TH112094)

1шт.

23

3035966

Cover

(SUB FOR TH111141)

1шт.

24

4191664

O-Ring

149.300 X 3.100 mm (SUB FOR TH111235)

1шт.

25

40M7194

Snap Ring

1шт.

31

3039569

Link

(SUB FOR TH111194)

1шт.

32

9724756

Lever

(SUB FOR TH109873)

2шт.

33

9749142

Valve

(SUB FOR AT168530 ) (SUB FOR AT250274)

1шт.

34

4179179

Dowel Pin

(SUB FOR TH109874)

2шт.

35

4179177

Dowel Pin

6 X 10 mm (SUB FOR TH109875)

2шт.

36

4200227

Dowel Pin

(SUB FOR TH109878)

1шт.

37

4179176

Dowel Pin

6 X 44 mm (SUB FOR TH109876)

1шт.

38

CH17951

Ring

6шт.

41

3106174

Piston

(SUB FOR 3036326 ) (ALSO ORDER 4641714 AND 4337812)

1шт.

4641714

Pin Fastener

1шт.

4337812

Set Screw

1шт.

42

4193245

Pin Fastener

(SUB FOR TH111254)

1шт.

43

4179838

Set Screw

M10 X 12 (SUB FOR TH109881)

1шт.

46

34M7061

Spring Pin

8 X 20 mm

2шт.

47

1011956

Cylinder Head

(SUB FOR AT200950)

1шт.

48

CH11560

Packing

10шт.

49

19M8341

Screw

M12 X 45

8шт.

50

12M7058

Lock Washer

12 mm (SUB FOR 12M6138)

8шт.

51

AT318013

Drain Plug

(SUB FOR 4093624 ) (SUB FOR TH102536)

1шт.

51A

M800650

Packing

1шт.

52

4204862

Cover

(SUB FOR TH111306)

1шт.

53

955020

O-Ring

(SUB FOR TH111628, 4006683)

1шт.

59

984623

O-Ring

41.700 X 3.500 mm (SUB FOR TH102592)

1шт.

63

19M8446

Screw

M8 X 20

8шт.

64

4514388

Spring Washer

(SUB FOR TH101835)

8шт.

65

4216295

Stop

(SUB FOR TH111927)

1шт.

66

9077557

Regulator

(SUB FOR AT205809)

1шт.

69

CH17260

Packing

1шт.

70

34M3845

Spring Pin

4 X 10 mm

2шт.

73

9134111

Fitting

(SUB FOR AT203648)

1шт.

73A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

76

37H99

Screw

0.100" X 1/4"

2шт.
