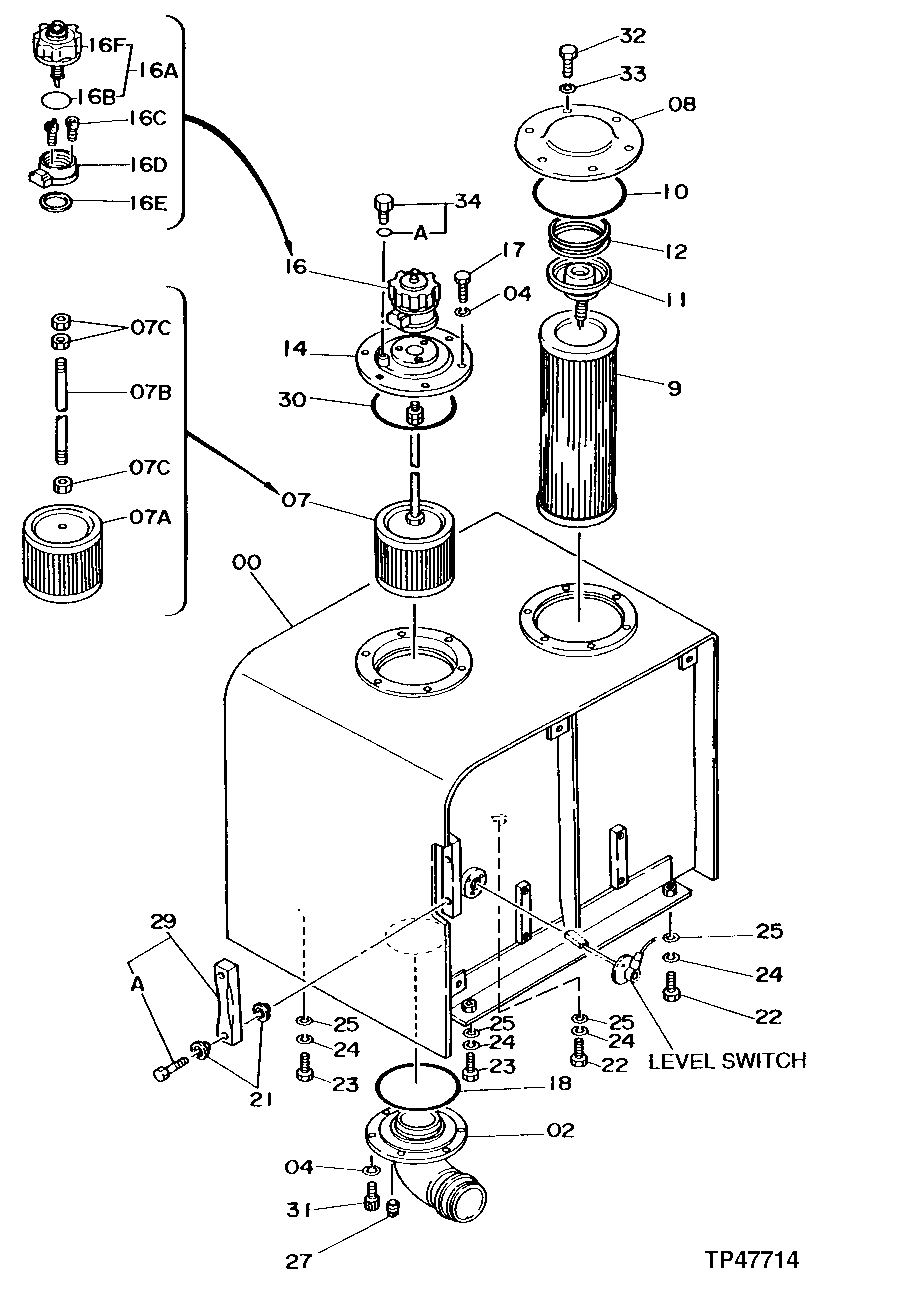

Запчасти John Deere 92DLC 127 - Oil Tank 2160 HYDRAULIC SYSTEM

0

5004773

Tank

(SUB FOR AT205787)

1шт.

2

2023377

Line

(SUB FOR TH111120)

1шт.

4

12M7066

Lock Washer

10 mm

12шт.

7

Filter

(SUB COMPONENTS) ( AT205845 NOT AVAILABLE FOR SERVICE)

1шт.

7A

4210224

Strainer

(SUB FOR TH110133)

1шт.

AT190750

Strainer

(ARCTIC) (32 MESH FOR ARCTIC CONDITIONS)

1шт.

7B

4211107

Rod

(SUB FOR TH110134)

1шт.

7C

14M7274

Nut

M10

3шт.

8

4204057

Cover

(SUB FOR TH111304)

1шт.

9

AT147343

Filter Element

1шт.

AT162766

Filter Element

(CLEAN-UP) (LIMITED USE - APPR OXIMATELY 3 HOURS) (IDLE SPEED)

1шт.

10

T110444

O-Ring

189.300 X 5.700 mm

1шт.

11

4180414

Flow Control Hyd. Valve

(SUB FOR TH109511)

1шт.

12

4226549

Extension Spring

(SUB FOR TH109512)

1шт.

14

8039818

Cover

(SUB FOR TH109513)

1шт.

16

Breather

(NOT AVAILABLE FOR SER VICE - SUB COMPONENTS)

1шт.

16A

4326285

Cap

(SUB FOR AT167080)

1шт.

16B

T162516

O-Ring

(SUB FOR TH111019, THIS APPLICATION)

1шт.

16C

19M8146

Screw

M5 X 16

3шт.

16D

4222875

Base

(SUB FOR TH111021)

1шт.

16E

4222876

Packing

(SUB FOR TH111022)

1шт.

16F

4251384

Filter Element

(SUB FOR AT122928)

1шт.

17

19M8784

Screw

M10 X 20 (SUB FOR 19M8356)

6шт.

18

TH100679

O-Ring

159.300 X 5.700 mm

1шт.

21

449558

Washer

(SUB FOR TH100675)

4шт.

22

19M8035

Cap Screw

M16 X 35

2шт.

23

19M7489

Cap Screw

M16 X 45

2шт.

24

12H294

Lock Washer

5/8"

4шт.

25

24M7338

Washer

17 X 30 X 3 mm

4шт.

27

942011

Fitting Plug

(SUB FOR 94-2011 AND TH100434)

1шт.

29

8039909

Level Gauge

(SUB FOR AT205904)

1шт.

29A

4100967

Bolt

(SUB FOR TH101894)

2шт.

30

TH100679

O-Ring

159.300 X 5.700 mm

1шт.

31

M351028

Screw

M10 X 28 (SUB FOR TH111069)

6шт.

32

19M8324

Cap Screw

M10 X 16

6шт.

33

12M7066

Lock Washer

10 mm

6шт.

34

4209653

Fitting Plug

(SUB FOR TH109514)

1шт.

34A

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.
