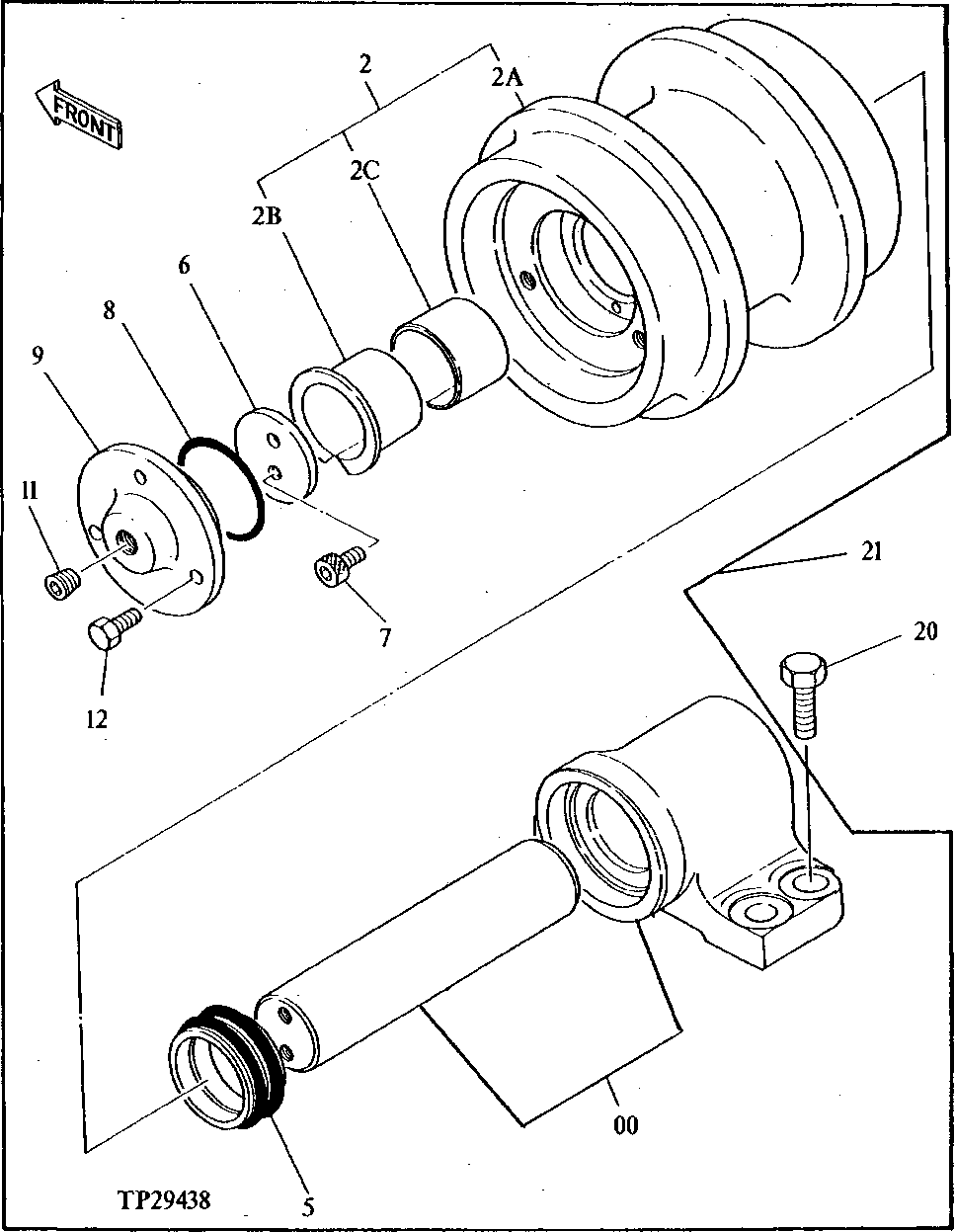

Запчасти John Deere 92DLC 4 - UPPER TRACK ROLLER 0130 TRACKS SYSTEMS

0

Bracket

(NOT AVAILABLE FOR SERVICE)

1шт.

2

Roller

( TH111604 NO LONGER AVAILABLE)

1шт.

2A

Roller

(NOT AVAILABLE FOR SERVICE)

1шт.

2B

Bushing

(NOT AVAILABLE FOR SERVICE)

1шт.

2C

Bushing

(NOT AVAILABLE FOR SERVICE)

1шт.

5

4317584

Seal

(SUB FOR TH111221 ) (SUB FOR AT213828)

1шт.

6

4282842

Washer

(SUB FOR AT131375)

1шт.

7

M351018

Bolt

M10 X 18 (SUB FOR AT131372)

2шт.

8

CH17154

Packing

1шт.

9

TH108091

Cover

(USE IF AVAILABLE)

1шт.

11

942011

Fitting Plug

(SUB FOR 94-2011 AND TH100434)

1шт.

12

19M8761

Screw

M10 X 22

3шт.

20

19M7488

Cap Screw

M16 X 40

16шт.

21

Carrier Roller

( 9105750 NLA) (SUB FOR AT131378)

4шт.
