Запчасти John Deere 92DLC 124 - DOOR LOCK 1910 Hood Or Engine Enclosure

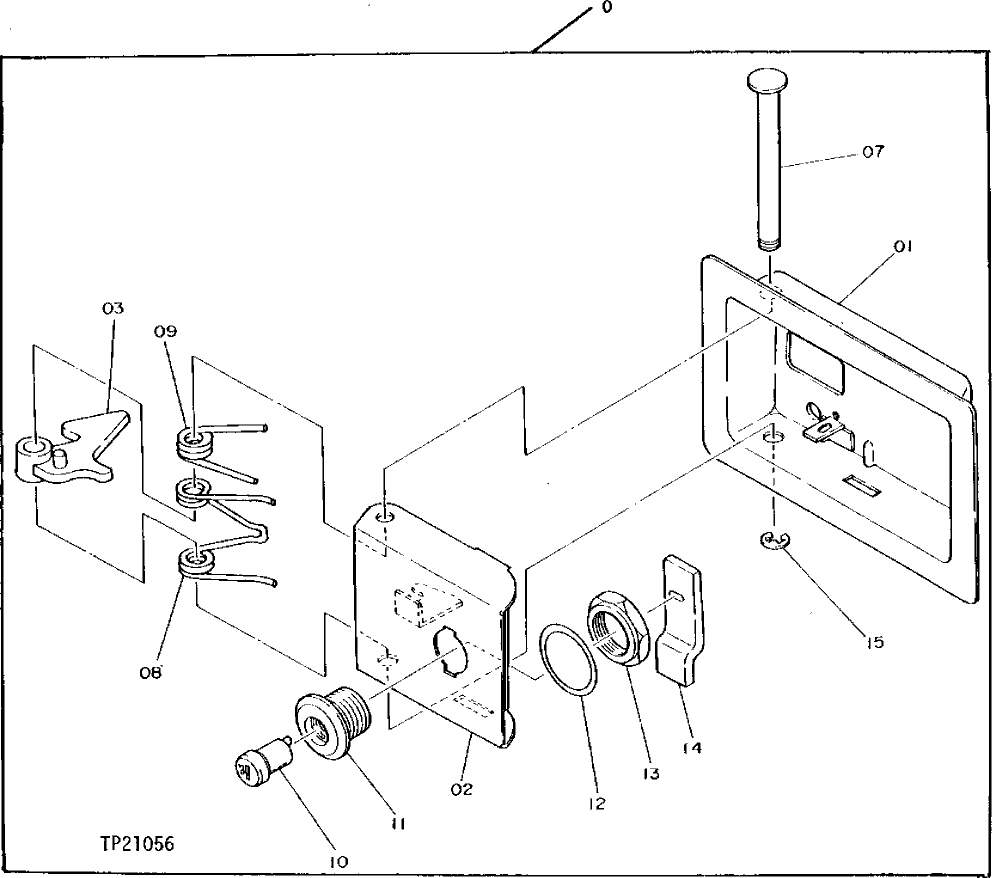

Схема запчастей John Deere 92DLC - 124 - DOOR LOCK 1910 Hood Or Engine Enclosure

Артикул

Название

Примечание

Количество

0

Lock

(SUB AT214010 ) (SUB FOR TH11012 6)( AT115741 NO LONGER AVAILABLE)

1шт.

1

8024490

Cover

(SUB FOR TH102241)

1шт.

2

4355969

Latch

(SUB FOR TH102242)

1шт.

3

Lever

( TH102229 NO LONGER AVAILABLE)

1шт.

7

4355972

Pin Fastener

(SUB FOR TH102230)

1шт.

8

4355973

Spring

(SUB FOR TH102233, THIS APPL ICATION ) (SUB FOR AT173242)

1шт.

9

4355974

Torsion Spring

(SUB FOR TH102243)

1шт.

10

4361411

Lock

(SUB FOR TH110128 ) (SUB FOR AT206102)

1шт.

4158653

Key

(SUB FOR TH101605)(NOT ILLUSTRATED)

1шт.

11

4134325

Lock

(SUB FOR TH110129 ) (SUB FOR TH102236)

1шт.

12

4355979

Ring

(SUB FOR TH102237, 4134322)

1шт.

13

4355980

Nut

(SUB FOR TH102238, 4134323)

1шт.

14

4355981

Strap

(SUB FOR TH102232, 4134331)

1шт.

15

CH11490

Ring

(SUB FOR TH102231)

1шт.

Выбрано товаров: 14
