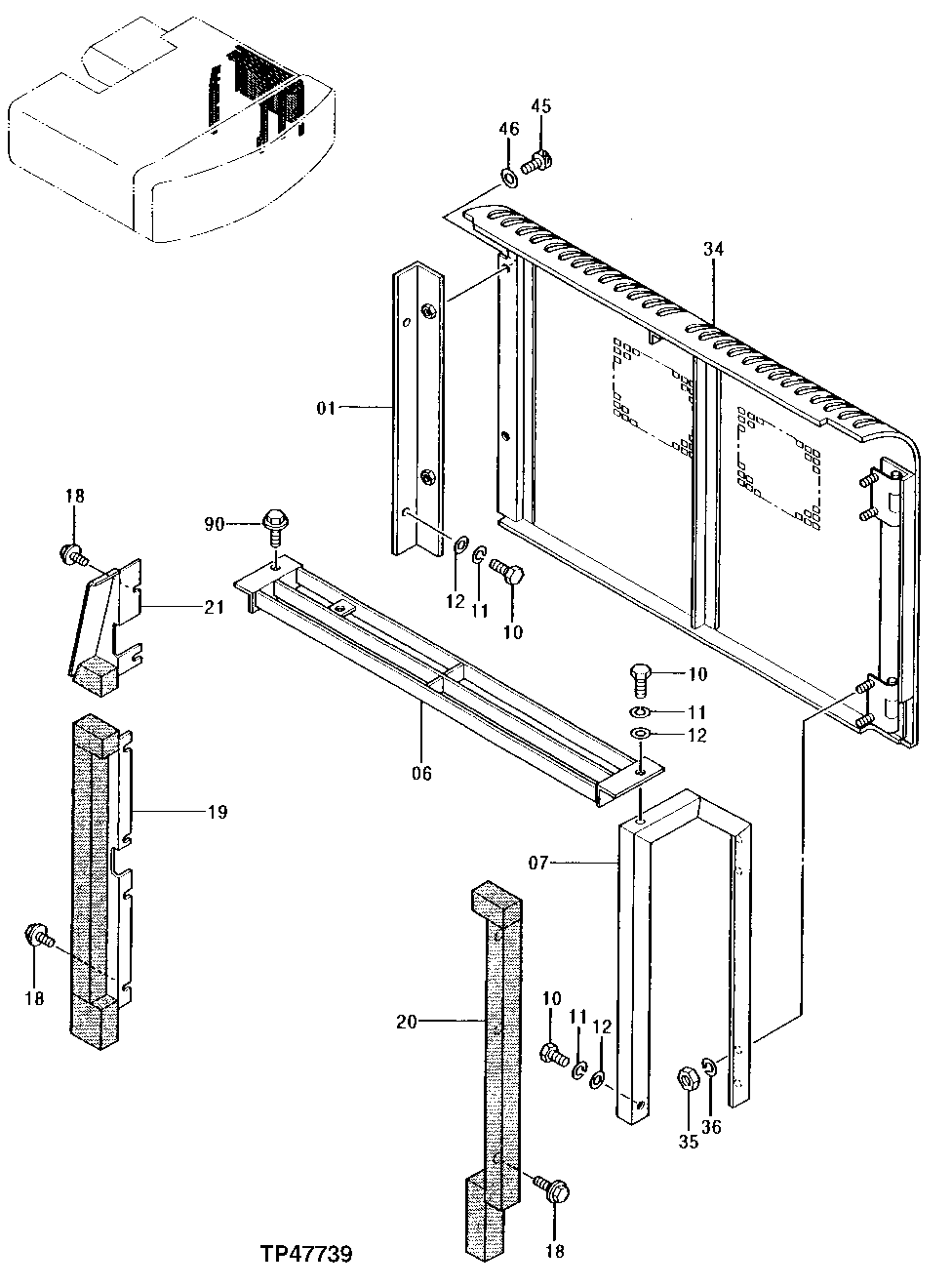

Запчасти John Deere 92DLC 119 - Cover 1910 Hood Or Engine Enclosure

1

9725238

Support

SUB FOR TH109667

1шт.

6

9742954

Guard

SUB FOR AT206096

1шт.

7

8040164

Support

SUB FOR AT205905

1шт.

10

19M8011

Cap Screw

M12 X 30

9шт.

11

12H301

Lock Washer

1/2"

9шт.

12

24M7047

Washer

13 X 24 X 2.500 mm

9шт.

18

19M8324

Cap Screw

M10 X 16

9шт.

12M7066

Lock Washer

10 mm

9шт.

19

8064680

Cover

SUB FOR AT205801

1шт.

20

8064686

Cover

SUB FOR AT205803

1шт.

21

8064667

Cover

SUB FOR AT205800

1шт.

34

Door

7028273 NLA, SUB FOR AT206087

1шт.

35

14M7275

Nut

M12

4шт.

36

12H301

Lock Washer

1/2"

4шт.

45

19M8443

Screw

M12 X 20

2шт.

46

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

90

12H301

Lock Washer

1/2"

1шт.

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

19M8011

Cap Screw

M12 X 30

1шт.
