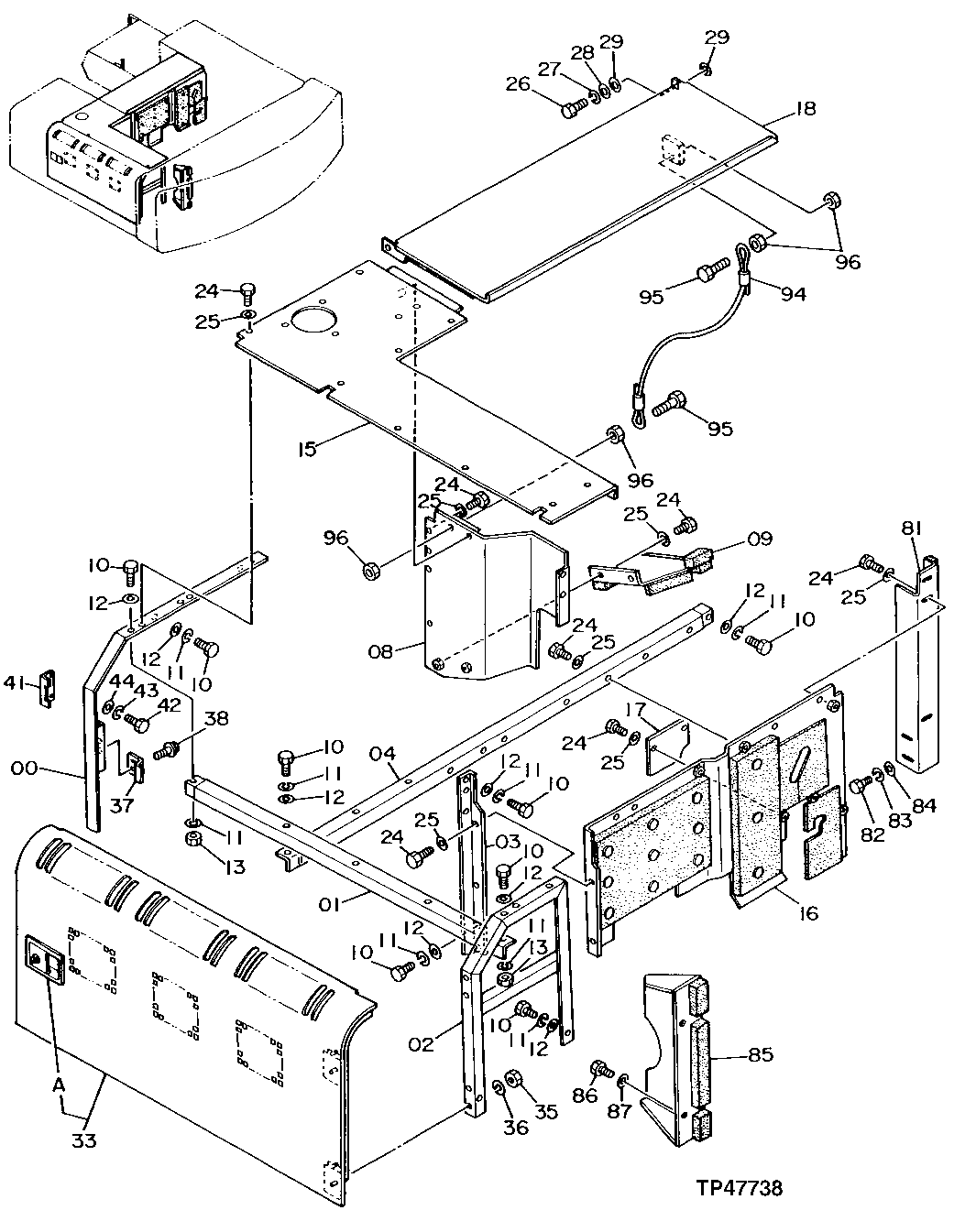

Запчасти John Deere 92DLC 118 - Cover 1910 Hood Or Engine Enclosure

0

8035504

Support

(SUB FOR TH109662)

1шт.

1

8041063

Support

(SUB FOR TH111644)

1шт.

2

8064690

Support

(SUB FOR AT205804)

1шт.

3

4189697

Support

(SUB FOR AT205830)

1шт.

4

8035749

Support

(SUB FOR TH109666)

1шт.

8

8064705

Cover

(SUB FOR AT205806)

1шт.

9

9728032

Cover

(SUB FOR TH109671)

1шт.

10

19M8011

Cap Screw

M12 X 30

8шт.

11

12H301

Lock Washer

1/2"

8шт.

12

24M7047

Washer

13 X 24 X 2.500 mm

8шт.

13

14M7275

Nut

M12

2шт.

15

7030810

Cover

(SUB FOR AT205792)

1шт.

16

7031343

Cover

(SUB FOR AT206089)

1шт.

17

4203445

Plate

(SUB FOR TH109674)

1шт.

18

8044718R

Door

(SUB FOR TH112011, 8044718)

1шт.

24

19M7872

Cap Screw

M12 X 25

22шт.

25

24M7047

Washer

13 X 24 X 2.500 mm

22шт.

26

19M8761

Screw

M10 X 22

1шт.

27

12M7066

Lock Washer

10 mm

1шт.

28

24M7101

Washer

11 X 34 X 3 mm

1шт.

29

24M7051

Washer

21 X 37 X 3 mm

2шт.

33

6014084

Door

(SUB FOR AT206084)

1шт.

33A

Lock

(SUB AT214010)( AT206088 NOT AVAILABLE FOR SERVICE)

1шт.

35

14M7275

Nut

M12

4шт.

36

12H301

Lock Washer

1/2"

4шт.

37

4363243

Stop

(SUB FOR AT206074)

1шт.

38

12H301

Lock Washer

1/2"

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

19M8011

Cap Screw

M12 X 30

2шт.

41

3037786

Bracket

(SUB FOR TH109681)

1шт.

42

19M7932

Cap Screw

M8 X 16

2шт.

43

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

44

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

81

4168132

Cap

(SUB FOR TH110210)

1шт.

82

19M7872

Cap Screw

M12 X 25

2шт.

83

12H301

Lock Washer

1/2"

2шт.

84

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

85

7030782

Plate

(SUB FOR AT205790)

1шт.

86

19M8017

Cap Screw

M12 X 20

4шт.

87

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

94

4232654

Wire

(SUB FOR TH112009)

1шт.

95

19M7496

Cap Screw

M12 X 45

2шт.

96

14M7275

Nut

M12

4шт.
