Запчасти John Deere 92DLC 117 - CAR HEATER PIPINGS (010003 - ) 1830 HEATING AND AIR CONDITIONING

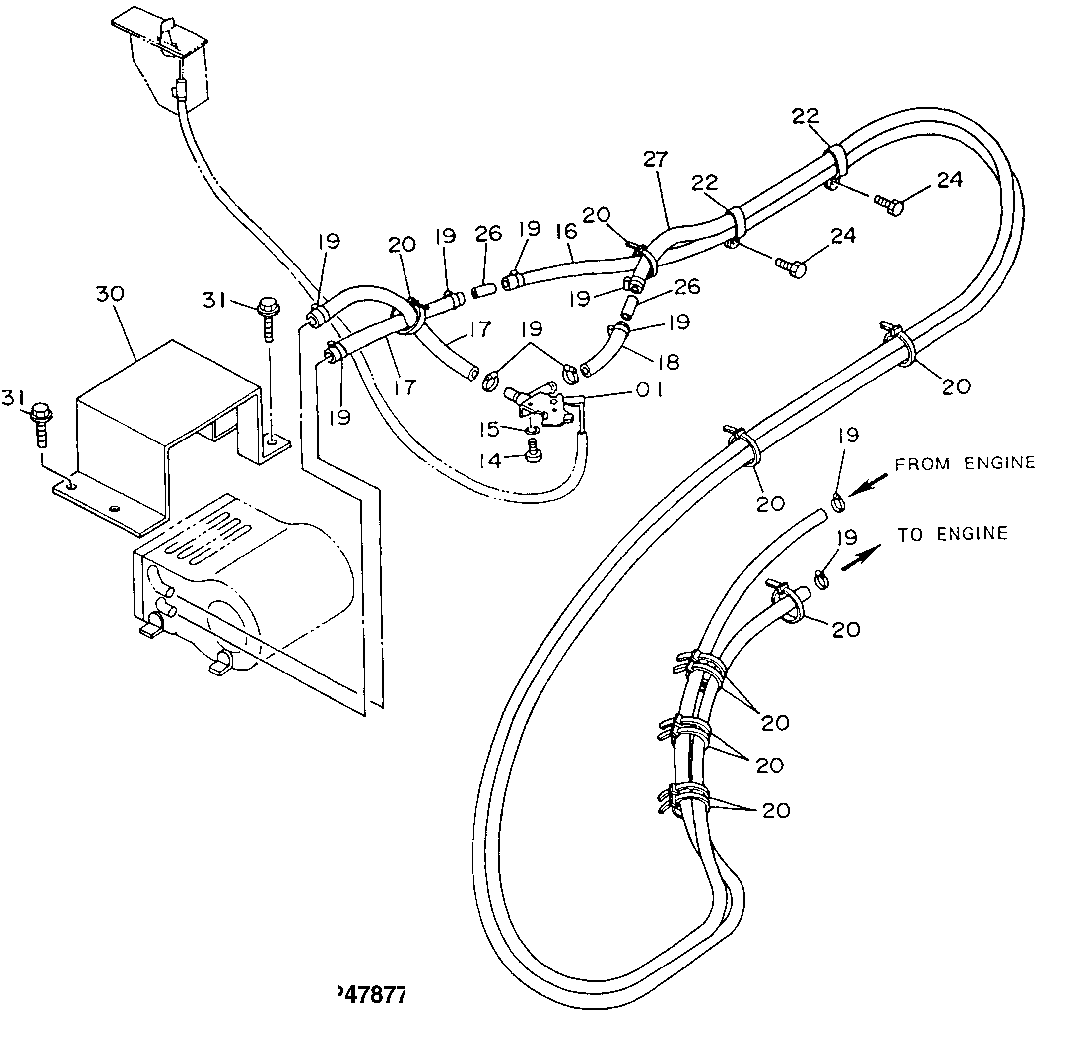

Схема запчастей John Deere 92DLC - 117 - CAR HEATER PIPINGS (010003 - ) 1830 HEATING AND AIR CONDITIONING

Артикул

Название

Примечание

Количество

1

4195823

Drain Valve

(SUB FOR TH108790)

1шт.

14

21M7252

Screw

M4 X 16

2шт.

15

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

2шт.

16

Hose

( AT206078 NOT AVAILABLE FOR SERVICE) (C UT TO LENGTH FROM TY22326 BULK MATERIAL)

1шт.

17

Hose

(CUT TO LENGTH FROM TY22326 BULK MATERIAL)

2шт.

18

Hose

( AT206079 NOT AVAILABLE FOR SERVICE) (C UT TO LENGTH FROM TY22326 BULK MATERIAL)

1шт.

19

WZ2141223

Hose Clamp

(SUB FOR AA34965)

10шт.

20

H77698

Tie Band

11шт.

22

4190266

Clip

(SUB FOR TH108793)

2шт.

24

12M7066

Lock Washer

10 mm

2шт.

19M3142

Cap Screw

M10 X 18

2шт.

26

4301728

Universal Joint

(SUB FOR AT205773)

2шт.

27

Hose

(CUT TO LENGTH FROM T60811 BULK MATERIAL)

1шт.

30

8064004

Cover

(SUB FOR AT173475)

1шт.

31

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

19M7402

Cap Screw

M10 X 25

4шт.

Выбрано товаров: 17
