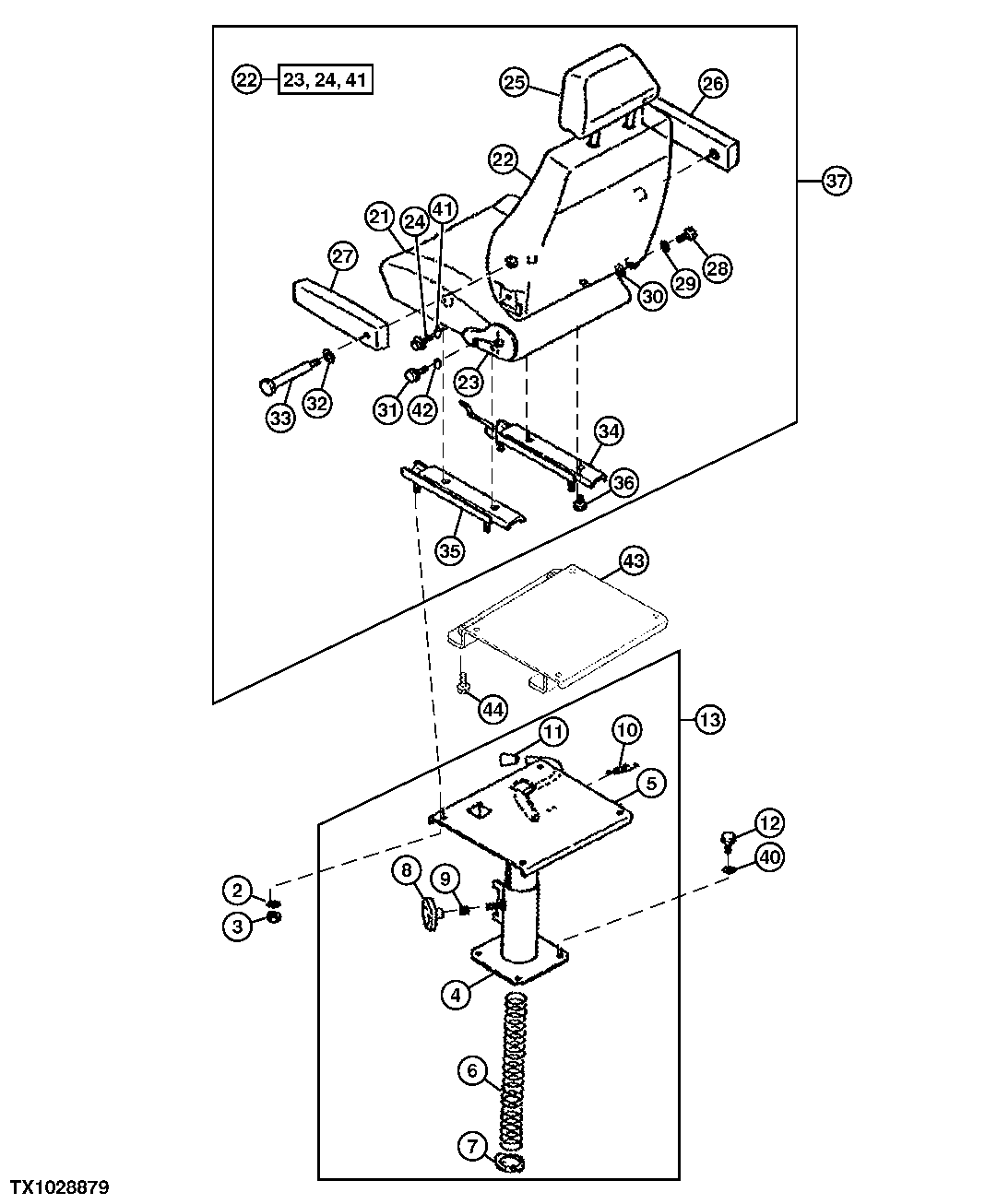

Запчасти John Deere 92DLC 112 - SEAT AND SEAT SUPPORT 1821 Seat And Seat Belts

2

12M7056

Lock Washer

8 mm SUB FOR 12M7065

4шт.

3

14M7273

Nut

M8

4шт.

4

Stand

SUB TH108740

1шт.

5

Support

SUB TH108740

1шт.

6

4206087

Spring

SUB FOR TH108741

1шт.

7

3039222

Plate

SUB FOR TH108742

1шт.

8

3039223

Knob

SUB FOR TH108743

1шт.

9

3039221

Spring

SUB FOR TH108744

1шт.

10

3030268

Extension Spring

SUB FOR TH101616

1шт.

11

3030267

Grip

SUB FOR TH101615

1шт.

12

19M7402

Cap Screw

M10 X 25

4шт.

13

4178550

Stand

SUB FOR TH108740

1шт.

21

0368101

Cushion

SUB FOR AT126054

1шт.

22

0368102

Seat Back

SUB FOR AT126055

1шт.

23

0340803

Adjuster

SUB FOR TH111648

1шт.

24

19M7402

Cap Screw

M10 X 25

2шт.

25

0368103

Head Restraint

SUB FOR AT126056

1шт.

26

0368104

Arm

SUB FOR AT126057

1шт.

27

0368105

Arm

SUB FOR AT126058

1шт.

28

Bolt

0262709 NLA, SUB FOR TH104153

1шт.

29

24M7434

Washer

13 X 20 X 2 mm SUB FOR 0262710 AND TH104154

1шт.

30

12M7056

Lock Washer

8 mm SUB FOR 12M7065

1шт.

31

19M7402

Cap Screw

M10 X 25

2шт.

32

24M7434

Washer

13 X 20 X 2 mm SUB FOR 0262710 AND TH104154

2шт.

33

0340807

Bolt

SUB FOR TH111652

2шт.

34

0368106

Adjuster

SUB FOR AT126059

1шт.

35

0304003

Adjuster

SUB FOR TH107001

1шт.

36

0340808

Screw

SUB FOR TH111653

4шт.

37

Seat

4230833 NLA, SUB FOR TH112076, SUB 46 79327 ALONG WITH (4) 19M7139, (4) 24M 7055, (1) 8112099 Cloth With Headrest

1шт.

4679327

Seat Assembly

1шт.

40

12M7066

Lock Washer

10 mm

4шт.

41

12M7066

Lock Washer

10 mm

2шт.

42

12M7066

Lock Washer

10 mm

2шт.

43

8112099

Bracket

1шт.

44

Screw With Washer

4шт.

19M7139

Cap Screw

M8 X 20 SUB FOR J900820

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

4шт.
