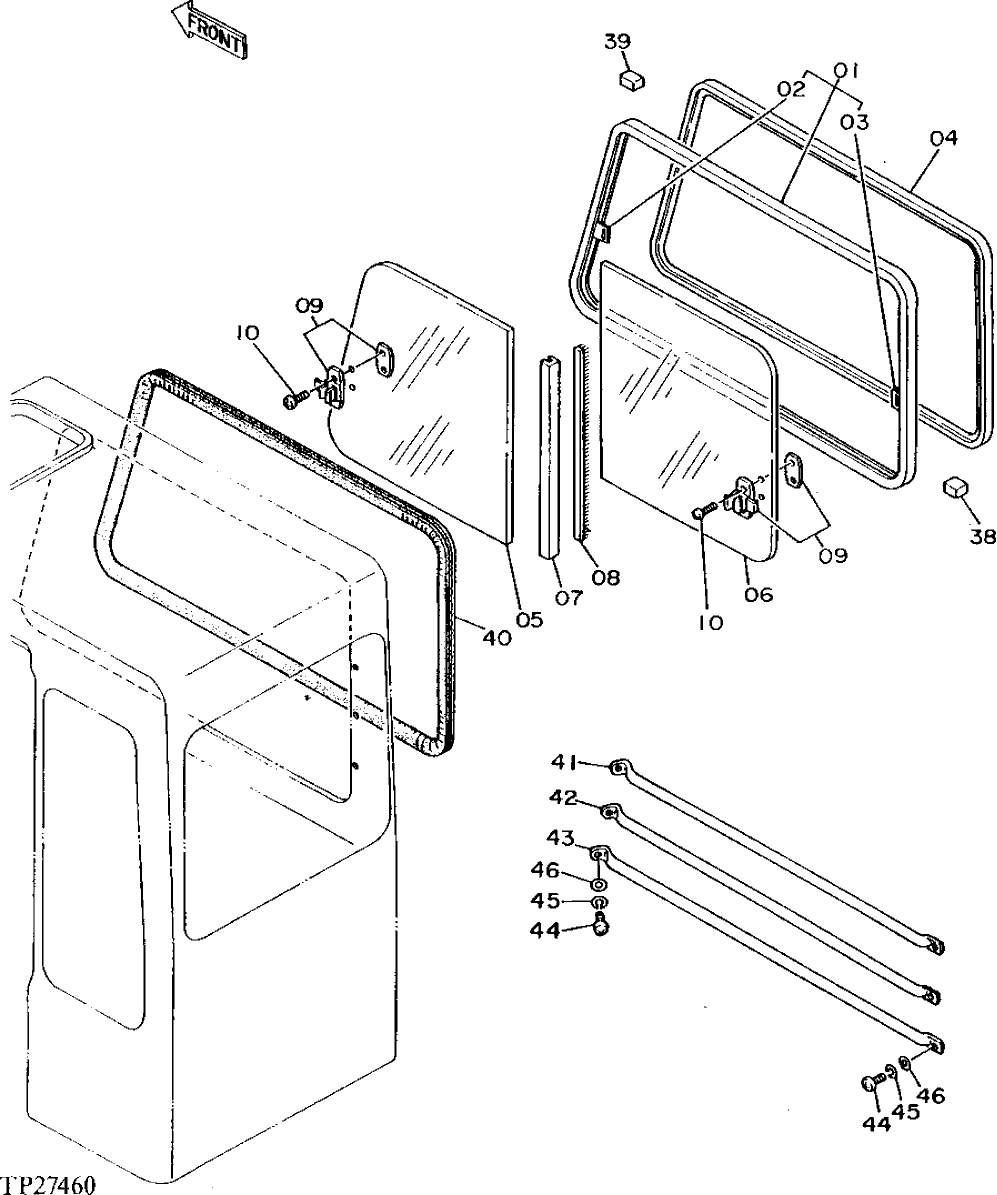

Запчасти John Deere 92DLC 109 - CAB WINDOW 1810 Operator Enclosure

1

4208949

Frame

(SUB FOR TH108731)

1шт.

2

Catch

(SUB TH108731)

1шт.

3

Catch

(SUB TH108731)

1шт.

4

4204635

Runner

(SUB FOR TH108733)

1шт.

5

TH108734

Windowpane

1шт.

6

TH108735

Windowpane

1шт.

7

4204638

Frame

(SUB FOR TH108736)

1шт.

8

4231414

Weatherstrip

(SUB FOR TH111881)

1шт.

9

4369653

Lock

(SUB FOR TH106626, 4295610 AND 4141713)

2шт.

10

4219753

Screw

(SUB FOR TH110774)

4шт.

38

4147896

Spacer

(SUB FOR TH108646)

9шт.

39

4204567

Spacer

(SUB FOR TH108647)

3шт.

40

4204585

Isolator

(SUB FOR TH108667)

1шт.

41

4204568

Guard

(SUB FOR TH108650)

1шт.

42

4204569

Guard

(SUB FOR TH108651)

1шт.

43

4204570

Guard

(SUB FOR TH108652)

1шт.

44

21M7291

Screw

M8 X 20

6шт.

45

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

6шт.

46

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.

50

Cab

( 4196647J NLA) (SUB FOR AT114976 (NOT ILLUS TRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADD ITONAL COMPONENTS LISTED ON PREVIOUS PAGES))

1шт.
