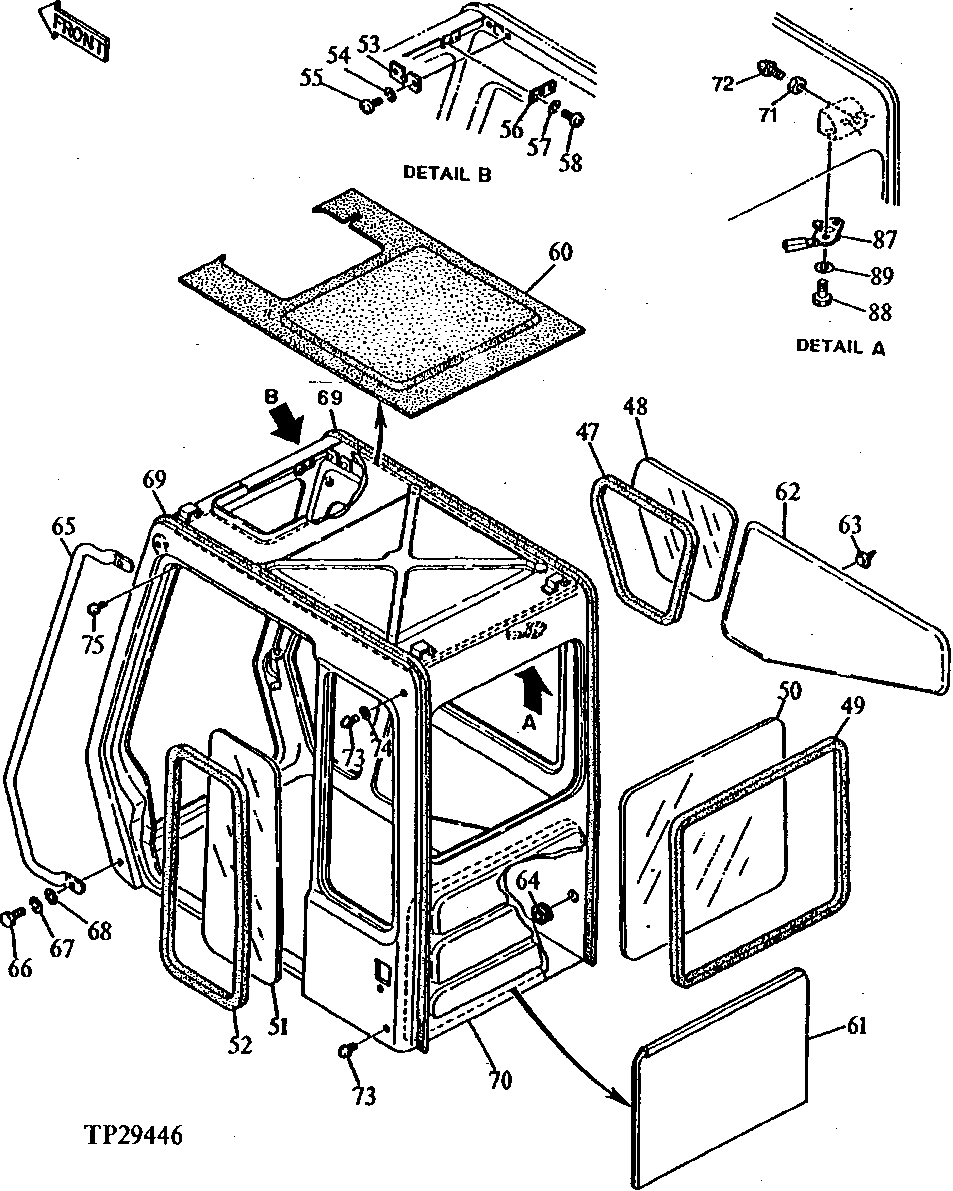

Запчасти John Deere 92DLC 104 - Cab 1810 Operator Enclosure

47

4204571

Isolator

(SUB FOR TH108653)

1шт.

48

TH108654

Windowpane

1шт.

49

4204573

Isolator

(SUB FOR TH108655)

1шт.

50

TH108656

Windowpane

1шт.

51

TH108657

Windowpane

1шт.

52

4204576

Isolator

(SUB FOR TH108658)

1шт.

53

4204599

Shim

(SUB FOR TH108682)

1шт.

54

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

2шт.

55

21M7396

Screw

M4 X 10

2шт.

56

4204600

Bracket

(SUB FOR TH108683)

1шт.

57

12H233

Lock Washer

1/8" (SUB FOR 12M7048)

2шт.

58

21M7394

Screw

M3 X 10

2шт.

60

4251702

Isolator

(SUB FOR AT128328 OR 4251703)

1шт.

61

4251704

Sealing Trim

(SUB FOR AT128327)(USE WITH ORIGINAL CAB)

1шт.

4251706

Sealing Trim

(SUB FOR AT128331)(USE WIT H AT114976 REPLACEMENT CAB)

1шт.

62

4204606

Pad

(SUB FOR TH108689)

1шт.

63

4204607

Clip

(SUB FOR TH108690)

10шт.

64

4473966

Bushing

(SUB FOR TH108691 OR 4204608)

1шт.

65

4248589J

Handrail

(SUB FOR AT128352 OR 4248589)

1шт.

66

19M7662

Cap Screw

M10 X 30

2шт.

67

12M7066

Lock Washer

10 mm

2шт.

68

24M7239

Washer

10.700 X 21 X 2.500 mm

1шт.

69

4204611

Isolator

(SUB FOR TH108694)

2шт.

70

Cab

(SUB AT114976)(CAB SHELL) (NOT AVAILABLE FOR SERVICE)

1шт.

71

14M7152

Nut

M10

1шт.

72

4204586

Bumper

(SUB FOR TH108668)

1шт.

73

4204586

Bumper

(SUB FOR TH108668)

2шт.

74

4204587

Washer

11 X 35 X 4.500 mm (SUB FOR TH108669)

1шт.

75

4172321

Bumper

(SUB FOR TH108666)

1шт.

87

4204594

Lock

(SUB FOR TH108677)

1шт.

88

19M7932

Cap Screw

M8 X 16

2шт.

89

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

90

Cab

( 4196647J NLA) (SUB FOR AT114976 (NOT ILLU STRATED) (ALSO ORDER AT148303 OUTER DOOR HAN DLE) (CONTAINS ALL ITEMS ON THIS PAGE, ADDIT ONAL COMPONENTS LISTED ON FOLLOWING PAGES))

1шт.
