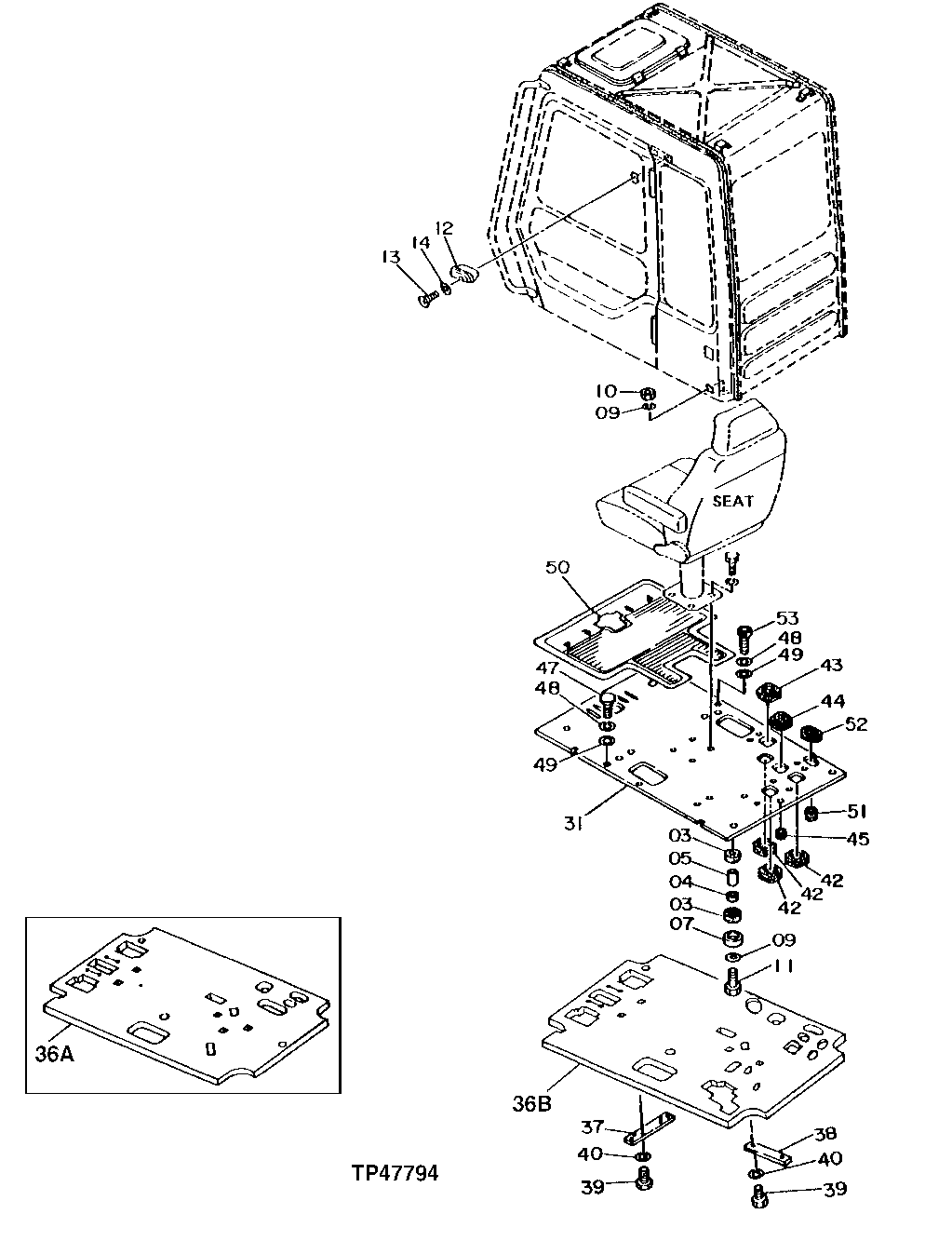

Запчасти John Deere 92DLC 103 - Cab Floor 1810 Operator Enclosure

3

4203877

Isolator

(SUB FOR TH109652)

8шт.

4

4200085

Isolator

(SUB FOR TH108604)

4шт.

5

4200086

Spacer

(SUB FOR TH108605)

4шт.

7

4203878

Stop

(SUB FOR TH109653)

4шт.

9

24M7338

Washer

17 X 30 X 3 mm

8шт.

10

14M7328

Lock Nut

M16

4шт.

11

4203189

Bolt

M16 X 103 (SUB FOR TH108608)

4шт.

12

4298985

Ashtray

(SUB FOR TH101096)

1шт.

13

21M7278

Screw

M5 X 10

2шт.

14

24M7027

Washer

5.300 X 10 X 1 mm

2шт.

31

6008585

Plate

(SUB FOR TH109654)

1шт.

36A

2038488

Pad

(SUB FOR TH108610)(USE IF AVAILABLE) (I F TH108610 NOT AVAILABLE, SUB AT174792)

1шт.

36B

2038488

Pad

(SUB FOR AT174792)

1шт.

37

4205043

Plate

(SUB FOR TH108611)

1шт.

38

4204646

Plate

(SUB FOR TH108612)

1шт.

39

19M7938

Cap Screw

M10 X 20

4шт.

40

12M7066

Lock Washer

10 mm

4шт.

42

4205080

Grommet

(SUB FOR TH108613)

3шт.

43

4205081

Grommet

(SUB FOR TH108614)

1шт.

44

4205082

Grommet

(SUB FOR TH108615)

1шт.

45

4205084

Grommet

(SUB FOR TH108616)

1шт.

47

19M7662

Cap Screw

M10 X 30

2шт.

48

12M7066

Lock Washer

10 mm

4шт.

49

24M7346

Washer

11 X 20 X 2 mm

4шт.

50

1011413

Mat

(SUB FOR TH108617)

1шт.

51

4209572

Grommet

(SUB FOR TH108618)

1шт.

52

4209956

Bushing

(SUB FOR TH108619)

1шт.

53

19M8337

Screw

M10 X 30

2шт.
