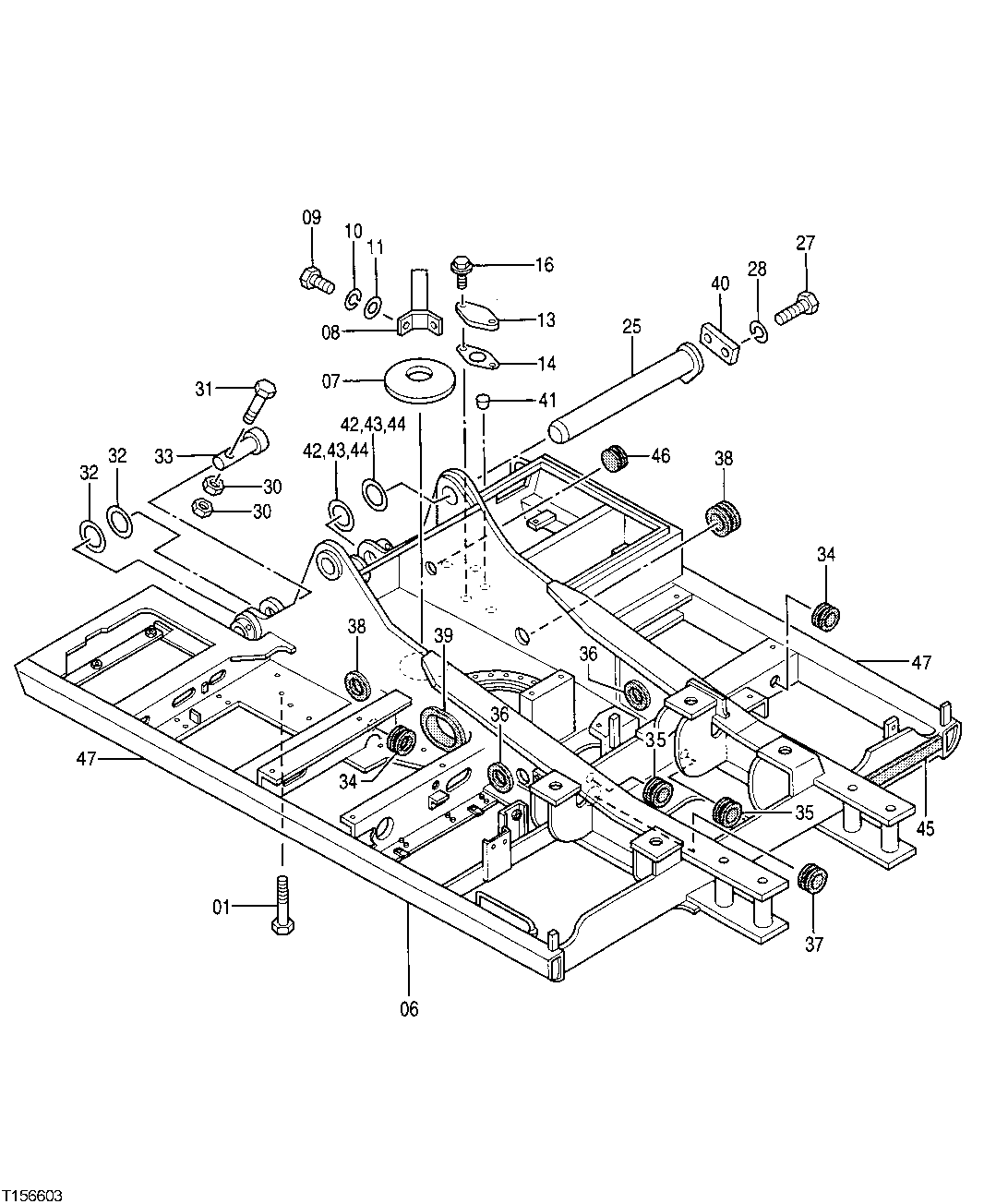

Запчасти John Deere 92DLC 100 - Frame 1740 Frame Installation

1

J932203

Bolt

(SUB FOR TH110082)

34шт.

6

Main Frame

(NOT AVAILABLE FOR SERVICE)

1шт.

7

4176863

Cover

(SUB FOR T107046)(ROTARY MANIFOLD)

1шт.

8

8033211

Stop

(SUB FOR AT107243)

1шт.

9

19M6332

Cap Screw

M14 X 35

2шт.

10

12H317

Lock Washer

9/16"

2шт.

11

4114404

Washer

15 X 36 X 4.500 mm (SUB FOR AT130666)

2шт.

13

4013896

Cover

(SUB FOR TH100633)

1шт.

14

4157713

Gasket

(SUB FOR TH100632)

1шт.

16

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

19M7402

Cap Screw

M10 X 25

2шт.

25

AT155544

Pin

(SUB FOR TH109394)

1шт.

27

19M7950

Cap Screw

M20 X 45

2шт.

28

12M7070

Lock Washer

20 mm

2шт.

30

14M7277

Nut

M20

4шт.

31

19M8503

Cap Screw

M20 X 160

2шт.

32

4217999

Washer

(SUB FOR AT205852)

4шт.

33

TH109395

Pin Fastener

90 X 230 mm

2шт.

34

4201995

Grommet

(SUB FOR TH109396)

2шт.

35

4200176

Grommet

(SUB FOR TH109397)

2шт.

36

4201749

Grommet

(SUB FOR TH108205)

2шт.

37

4201986

Grommet

(SUB FOR TH109398)

1шт.

38

4191977

Grommet

(SUB FOR TH109399)

2шт.

39

4191978

Grommet

(SUB FOR TH109400)

1шт.

40

4199833

Plate

(SUB FOR TH109401)

1шт.

41

99M7010

Plug

(SUB FOR TH109402)

1шт.

42

4144511

Washer

105 X 200 X 3.200 mm (SUB FOR TH102421)

1шт.

43

4144512

Washer

105 X 200 X 2.300 mm (SUB FOR TH102422)

1шт.

44

4144513

Washer

105 X 200 X 1.200 mm (SUB FOR TH102423)

2шт.

45

Belting

(NOT AVAILABLE FOR SERVICE)

1шт.

46

4207423

Plug

(SUB FOR TH111986)

1шт.

47

4455819

Line

1шт.
