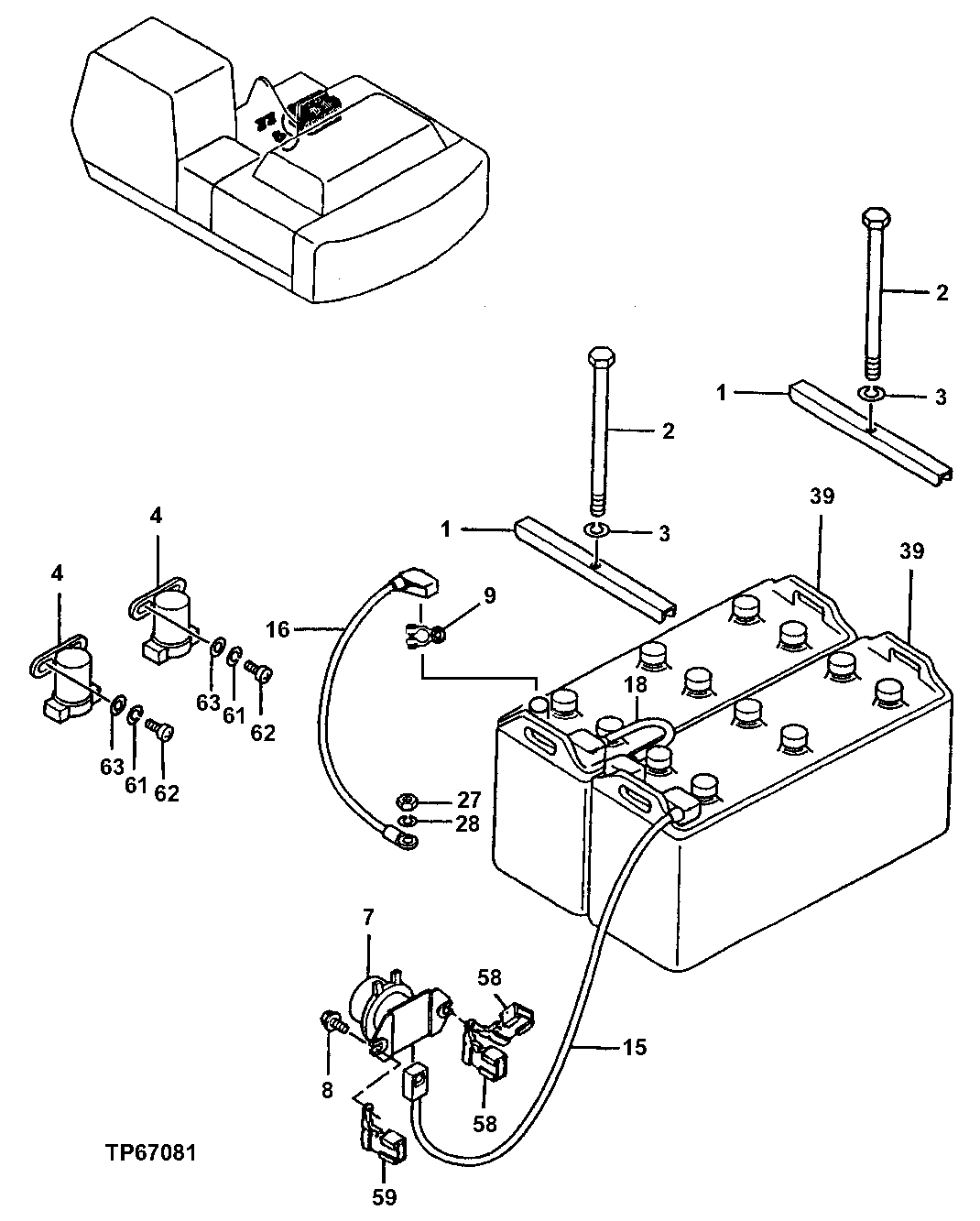

Запчасти John Deere 92DLC 92 - ELECTRIC PARTS 1674 Wiring Harness And Switches

1

4435074

Channel

SUB FOR TH104067

2шт.

2

4140208

Bolt

M10 X 270 SUB FOR TH102148

2шт.

3

12M7066

Lock Washer

10 mm

2шт.

4

AT145341

Relay

STARTER, ALSO REQUIRES (2) 14M7 165 NUTS FOR USE WITH EACH RELAY

2шт.

14M7165

Lock Nut

M6 NOT ILLUSTRATED

4шт.

7

4168218

Relay

SUB FOR 4S00204 AND TH109640, BATTERY

1шт.

8

12M7056

Lock Washer

8 mm SUB FOR 12M7065

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

19M7377

Cap Screw

M8 X 28

2шт.

9

AT219485

Clamp

BATTERY TERMINAL CLAMPS

4шт.

15

4358080

Wiring Harness

SUB FOR AT205777, BATTERY TO BATTERY RELAY

1шт.

16

4358081

Wiring Harness

SUB FOR AT205778, BATTERY TO GROUND

1шт.

18

4358083

Wiring Harness

SUB FOR AT205780

1шт.

27

14M7274

Nut

M10

1шт.

28

12M7066

Lock Washer

10 mm

1шт.

39

TY21754

Dry Charged Battery

SUB FOR TH109639, ALONG WITH (2) 19M7965, (2) T79470 AND T103409

2шт.

19M7965

Cap Screw

M10 X 240 NOT ILLUSTRATED

2шт.

T79470

Angle

BATTERY CLAMP, NOT ILLUSTRATED

2шт.

T103409

Strap

BETWEEN BATTERY CLAMP ANGLES, NOT ILLUSTRATED

1шт.

58

4270554

Fuse

SUB FOR AT160982, 40 AMP FUSABLE LI NK, BATTERY AND FUEL SHUT OFF, GREEN

2шт.

59

4270555

Fuse

SUB FOR AT160983, 50 AM P FUSABLE LINK, STARTER

1шт.

61

12M7006

Lock Washer

6 mm

4шт.

62

21M7267

Screw

M6 X 20

4шт.

63

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.
