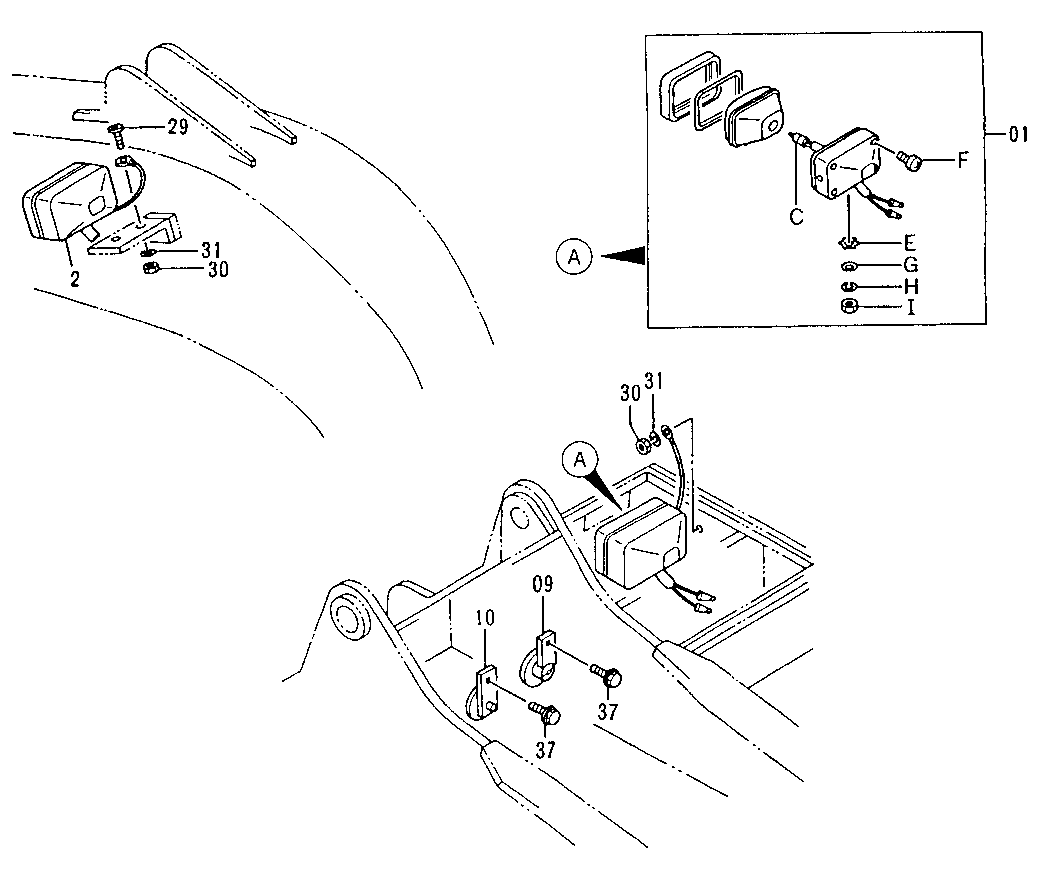

Запчасти John Deere 92DLC 90 - ELECTRIC PARTS 1674 Wiring Harness And Switches

1

4326800

Lamp

(SUB FOR AT176424)

1шт.

1C

AT135758

Bulb

(SUB FOR AT154990)

1шт.

1E

4307026

Washer

(SUB FOR T144361)

1шт.

1F

37H19

Screw

(SUB FOR T144362 OR 4307027)

1шт.

1G

24M7085

Washer

15 X 28 X 2.500 mm

1шт.

1H

12H317

Lock Washer

9/16"

1шт.

1I

14M7345

Nut

M14 (SUB FOR J952014 ) (SUB FOR TH103791)

1шт.

2

AT165110

Lamp

(SUB FOR AT176424, THIS APPLICATION)

1шт.

9

AT64237

Horn

1шт.

10

AT64237

Horn

1шт.

29

21M7285

Screw

M6 X 12

1шт.

30

14M7272

Nut

M6

2шт.

31

12M7006

Lock Washer

6 mm

2шт.

37

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

19M7163

Cap Screw

M8 X 25

2шт.
