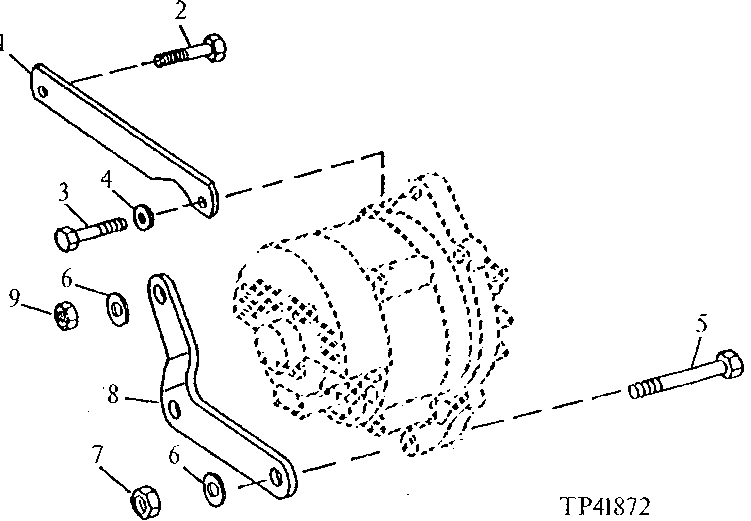

Запчасти John Deere 90ELC 56 - ALTERNATOR MOUNTING BRACKETS AND ADJUSTING STRAPS 0423 Alternator And Generator Mounting 6068TT005 6068TT005

1

R108821

Strap

1шт.

2

19H3217

Cap Screw

3/8" X 1-3/4"

1шт.

3

19M7513

Cap Screw

M8 X 30 (SUB FOR 19M7288)

1шт.

4

12H303

Lock Washer

5/16"

1шт.

24H1621

Washer

11/32" X 1" X 0.220"

1шт.

5

19M8197

Cap Screw

M10 X 85

1шт.

6

12M7066

Lock Washer

10 mm

ARшт.

24H1822

Washer

11/32" X 7/8" X 1/16"

ARшт.

7

14M7274

Nut

M10

1шт.

8

R108743

Bracket

1шт.

9

N10215

Lock Nut

9.525 mm (SUB FOR 14H1 076, THIS APPLICATION)

2шт.
