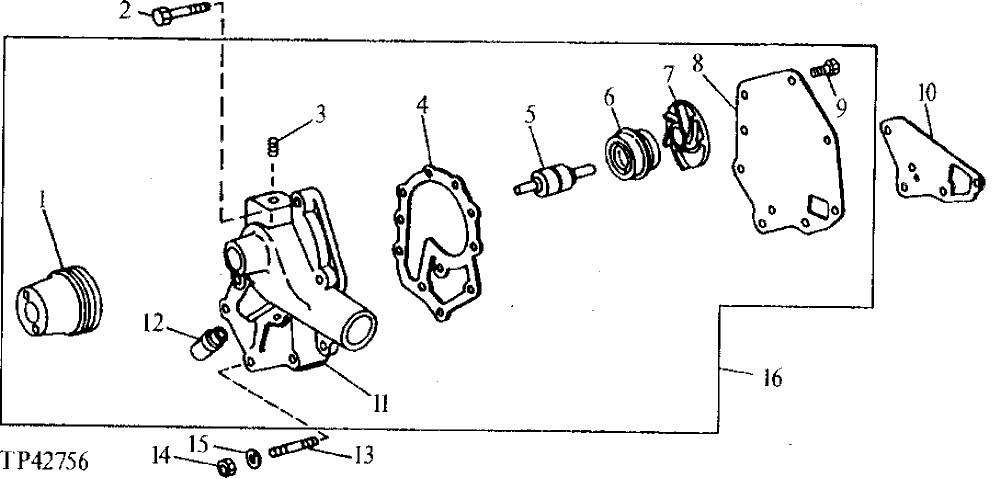

Запчасти John Deere 90ELC 48 - Water Pump 0417 Water Pump 6068TT005 6068TT005

1

R107200

Pulley

1шт.

2

19H3031

Cap Screw

3/8" X 2-1/2"

1шт.

19H3217

Cap Screw

3/8" X 1-3/4"

1шт.

19H3743

Screw

3/8" X 2-7/8"

1шт.

3

15H584

Pipe Plug

1/2"

1шт.

4

R56809

Gasket

1шт.

5

JD8643

Bearing

1шт.

6

AR101549

Seal Kit

WATER PUMP SEAL

1шт.

7

R56812

Impeller

1шт.

8

R56811

Cover

1шт.

9

19H2633

Cap Screw

3/8" X 1-1/2"

4шт.

10

T20243

Gasket

1шт.

19H1726

Cap Screw

3/8" X 2-1/4"

1шт.

19H2676

Cap Screw

3/8" X 1"

1шт.

11

Housing

1шт.

12

R34985

Line

1шт.

13

T25701

Stud

1шт.

14

N10215

Lock Nut

9.525 mm (SUB FOR 14H1 076, THIS APPLICATION)

1шт.

15

12H304

Lock Washer

3/8"

ARшт.

16

RE41897

Water Pump

(MARKED R104648 ) (ALSO ORDER T20243)

1шт.
