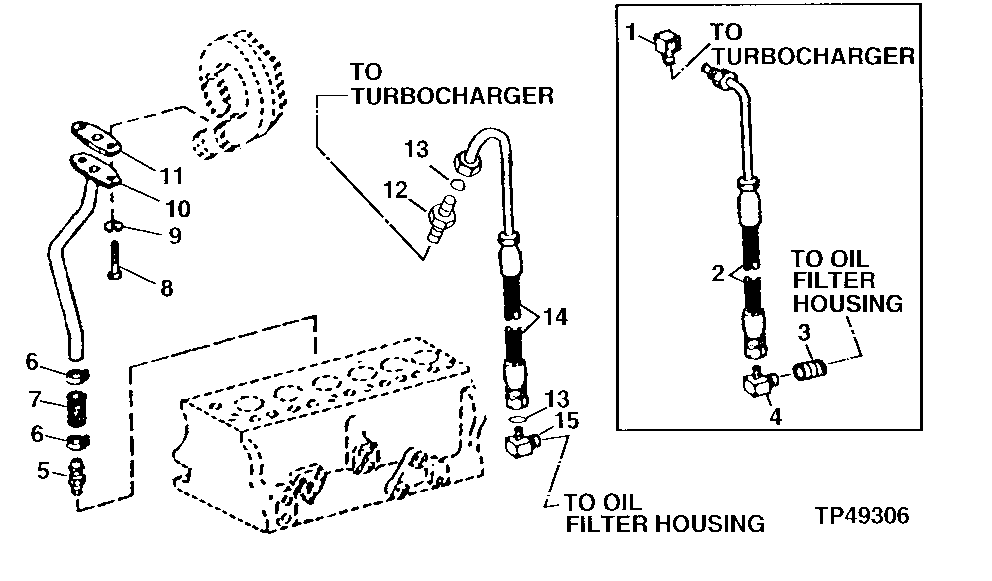

Запчасти John Deere 90ELC 47 - Turbocharger Oil Lines 0416 Turbocharger 6068TT005 6068TT005

1

T11180

Elbow Fitting

1шт.

2

RE45421

Hydraulic Hose

1шт.

RE503214

Hose

(SUB M87733, R87907 AND (2) R6354 8 ) (SUB FOR RE62385 AND RE60584)

1шт.

3

15H619

Pipe Bushing

3/8"

1шт.

15H642

Pipe Bushing

1/4"

1шт.

4

M42830

Elbow Fitting

1шт.

AR26708

Fitting

1шт.

5

R39503

Fitting

1шт.

RE54885

Hose Fitting

(SUB FOR R120757)

1шт.

6

AR21837

Hose Clamp

2шт.

RE65978

Clamp

(SUB FOR RE62322)

2шт.

7

Hose

(MAKE FROM R120013)(CUT TO LENGTH)

1шт.

8

19H2284

Cap Screw

3/8" X 7/8"

2шт.

R124277

Cap Screw

2шт.

9

12H304

Lock Washer

3/8"

2шт.

10

RE43378

Oil Line

(SUB RE62100 AND (2) R124277)

1шт.

RE62100

Oil Line

1шт.

11

R105346

Gasket

1шт.

12

M87733

Adapter Fitting

1шт.

13

R63548

O-Ring

2шт.

14

RE503214

Oil Line

(SUB FOR RE62385)

1шт.

15

R87907

Elbow Fitting

1шт.
