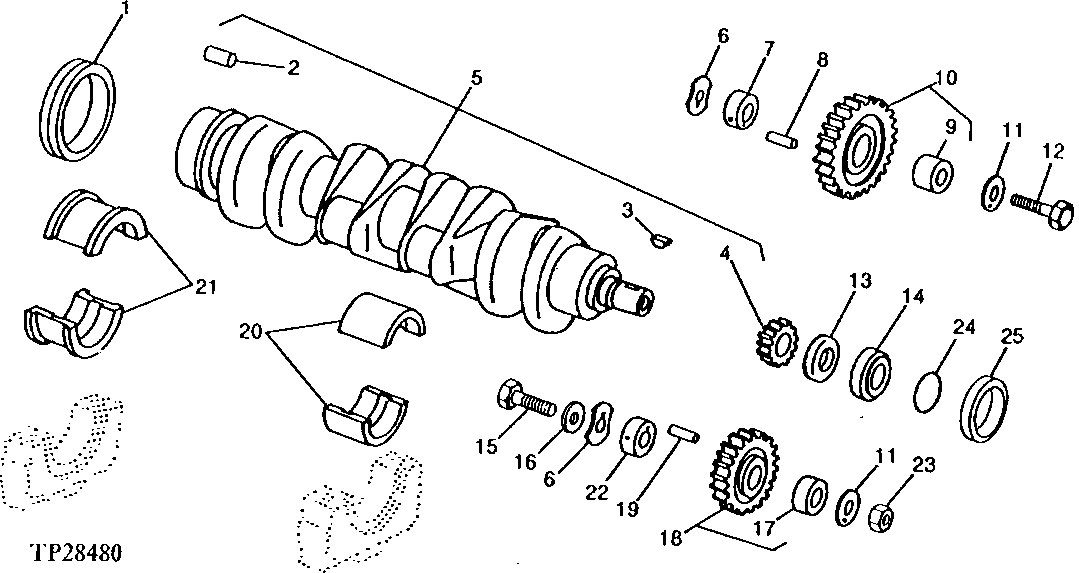

Запчасти John Deere 90ELC 22 - CRANKSHAFT, IDLER GEAR AND MAIN BEARINGS 0401 CRANKSHAFT AND MAIN BEARINGS 6068TT005 6068TT005

1

RE44574

Seal

(USE IF AVAILABLE)

1шт.

2

R48685

Dowel Pin

(SUB FOR A120R)

1шт.

3

26H72

Shaft Key

1/8" X 5/8"

1шт.

4

T20094

Helical Gear

(24 TEETH)

1шт.

5

Crankshaft

RE45517, MARKED R104523 NO LONGER AVAILABLE (SUB FOR RE33687, MARKED R54619) SUB RE502191 CRANKSHAFT KIT

1шт.

RE502191

Crankshaft

1шт.

SE501648

Crankshaft Reman

(A) (REMAN FOR RE502191)

1шт.

6

T26324

Thrust Washer

2шт.

7

R109863

Shaft

1шт.

8

34H283

Spring Pin

3/16" X 1-1/8"

1шт.

9

T20034

Bushing

1шт.

10

AR91660

Gear

(55 TEETH), (MARKED R70182)

1шт.

11

T26326

Thrust Washer

2шт.

12

T26327

Screw

1шт.

13

T20046

Oil Slinger

1шт.

14

AR67942

Seal

1шт.

15

19H3183

Cap Screw

1/2" X 2-1/8" HS, SAE 8, 1/2" X 2-1/8"

1шт.

16

R100105

Washer

1шт.

17

T26321

Bushing

1шт.

18

AT24252

Gear

(45 TEETH), (MARKED T26322)

1шт.

19

34H286

Spring Pin

3/16" X 1-1/2"

1шт.

20

RE27352

Bearing Kit

(SUB FOR AT21140)STAND ARD (SET OF (2) T23214)

6шт.

AT21108

Bearing

0.05 MM (.002") UNDERS IZE (SET OF (2) T23552)

6шт.

RE27353

Bearing Kit

(SUB FOR AT21110)0.25 MM (0.10" ) UNDERSIZE (SET OF (2) T23554)

6шт.

RE27360

Bearing

(SUB FOR AT21112)0.51 MM (.020" ) UNDERSIZE (SET OF (2) T23556)

6шт.

RE27368

Bearing

(SUB FOR AT21114)0.76 MM (.030" ) UNDERSIZE (SET OF (2) T23558)

6шт.

21

R78598

Thrust Washer

(SUB FOR AT21139)STAND ARD (SET OF (2) T23215)

1шт.

Bearing

( AT21130 NO LONGER AVAILABLE) 0.05 MM (.002") UNDERSIZE (SET OF (2) T23574)

1шт.

R78598

Thrust Washer

(SUB FOR AT21132)0.25 MM ( .010") (SET OF (2) R130574)

1шт.

AT21134

Bearing

0.51 MM (.020") UNDERS IZE (SET OF (2) T23578)

1шт.

AT21136

Bearing

0.76 MM (.030") UNDERS IZE (SET OF (2) T23580)

1шт.

22

R109863

Shaft

1шт.

R89824

Shaft

1шт.

23

E69392

Nut

1шт.

24

H35244

Ring

1шт.

25

R81989

Sleeve

1шт.
