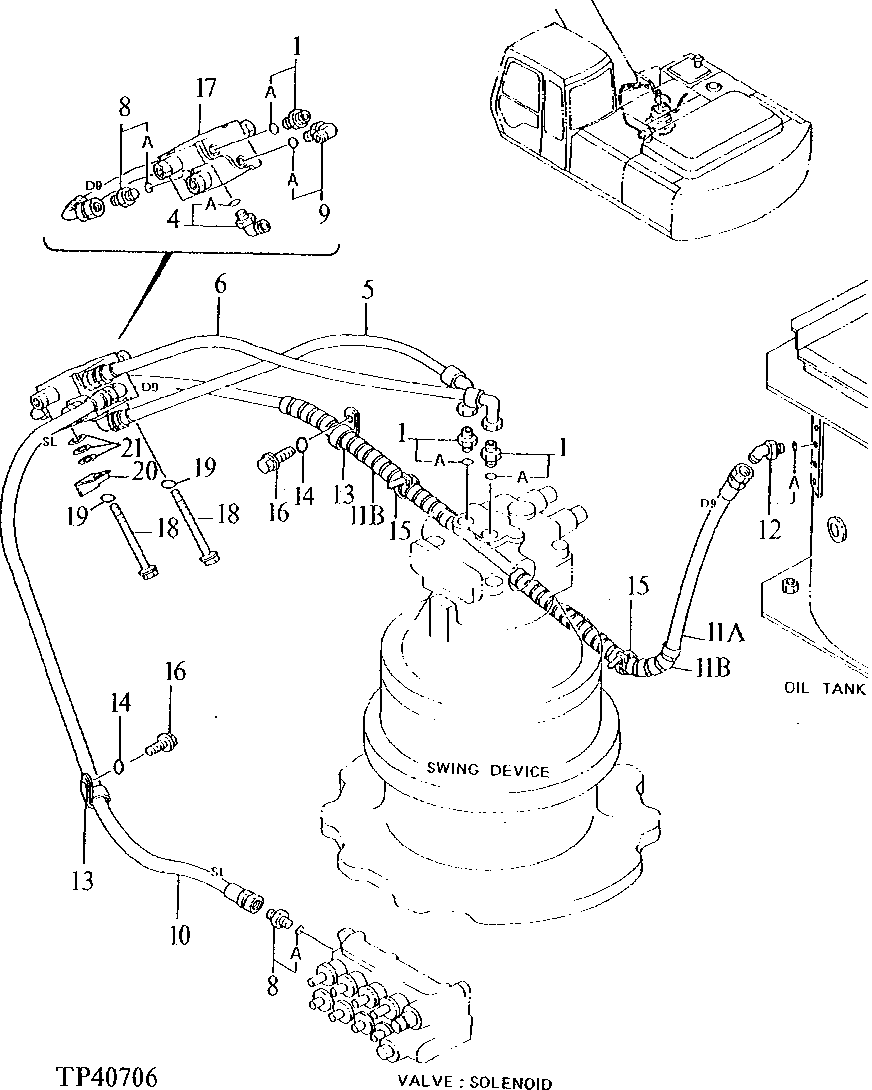

Запчасти John Deere 90ELC 302 - SWING PIPINGS 4360 HYDRAULIC SYSTEM

1

4200465

Adapter Fitting

SUB FOR TH108328

3шт.

1A

M800650

Packing

1шт.

4

4154670

Elbow Fitting

SUB FOR TH100951

1шт.

4A

M800650

Packing

1шт.

5

AT155332

Hydraulic Hose

Fabricate

1шт.

6

AT155333

Hydraulic Hose

Fabricate

1шт.

8

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

8A

M800650

Packing

1шт.

9

4154670

Elbow Fitting

SUB FOR TH100951

1шт.

9A

M800650

Packing

1шт.

10

AH96002

Hydraulic Hose

SUB FOR 4284079, ALSO ORDER 4190272 Fabricate

1шт.

11A

4284080

Hose

SUB FOR AT155335

1шт.

11B

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

2шт.

12

4200470

Elbow Fitting

SUB FOR AT131737

1шт.

12A

CH11570

O-Ring

1шт.

13

AH79175

Clip

SUB FOR TH109649, THIS APPLICAT ION, SUB FOR TH108600 OR 4190272

2шт.

14

12M7066

Lock Washer

10 mm

2шт.

15

H77698

Tie Band

2шт.

16

19M7938

Cap Screw

M10 X 20

2шт.

17

4288149

Flow Control Hyd. Valve

SUB FOR AT155368

1шт.

18

19M8093

Cap Screw

M10 X 100

2шт.

19

12M7066

Lock Washer

10 mm

2шт.

20

4257159

Bracket

SUB FOR AT154243

1шт.

21

24M7028

Washer

10.500 X 20 X 2 mm

3шт.
