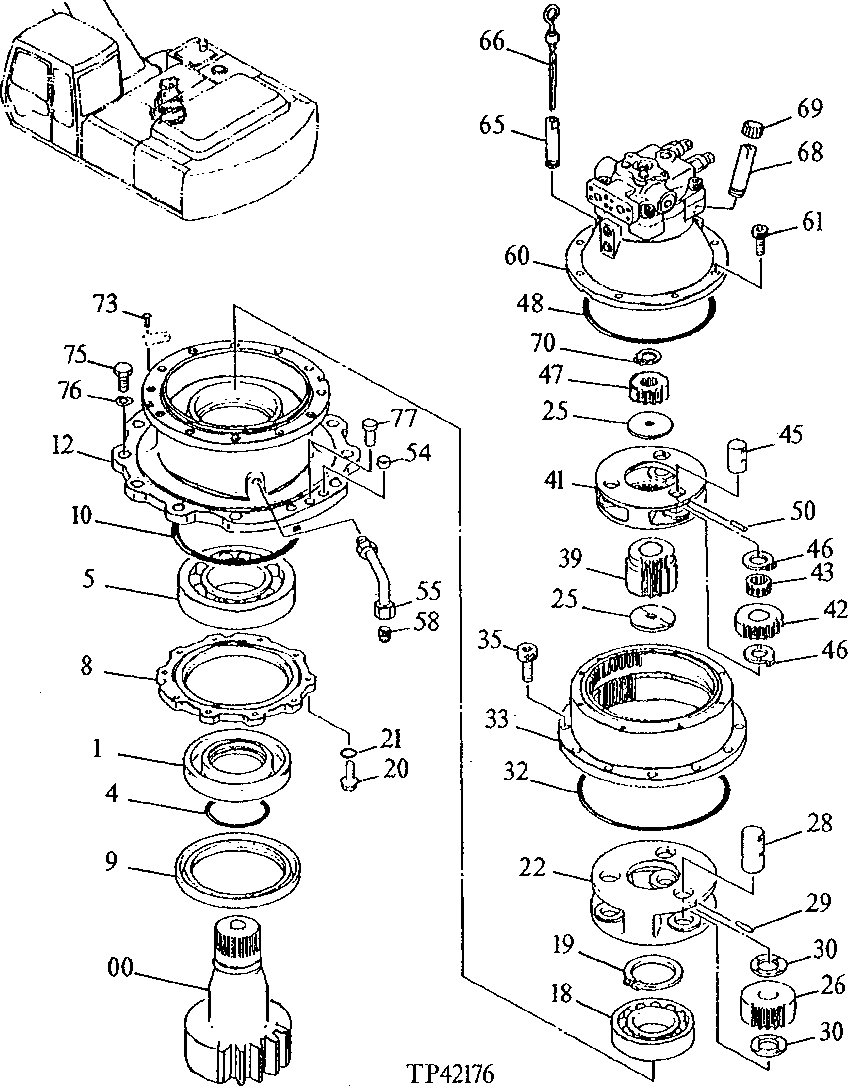

Запчасти John Deere 90ELC 300 - SWING DRIVE 4360 HYDRAULIC SYSTEM

0

2028849

Shaft

(SUB FOR AT154654)

1шт.

1

4253309

Sleeve

(SUB FOR AT154729)

1шт.

4

AT264224

O-Ring

(SUB FOR TH100029, AT122159)

1шт.

5

AT154725

Spherical Roller Bearing

1шт.

8

3060561

Cover

(SUB FOR AT154673 OR 3050048)

1шт.

9

4424511

Seal

1шт.

10

AT154714

O-Ring

275 X 3 mm

1шт.

12

Housing

(SUB AT158508)

1шт.

1017263

Housing

(SUB FOR AT158508)

1шт.

18

TH109489

Spherical Roller Bearing

1шт.

19

40M7193

Snap Ring

1шт.

20

19M7493

Cap Screw

M12 X 40

10шт.

21

12H301

Lock Washer

1/2"

10шт.

22

1014562

Planet Pinion Carrier

(SUB FOR AT154638)

1шт.

25

4642361

Plate

(SUB FOR TH109479 OR 4187590)

2шт.

26

9744934

Gear

(SUB FOR AT154873 ) (SUB FOR AT217910)

3шт.

28

4253311

Pin

(SUB FOR AT154730)

3шт.

29

34M5564

Spring Pin

6 X 70 mm (SUB FOR TH109482)

3шт.

30

4266934

Plate

(SUB FOR AT154772)

6шт.

32

4271596

O-Ring

325 X 3.530 mm (SUB FOR AT131752)

1шт.

33

1014483

Ring Gear

(SUB FOR AT154630)

1шт.

35

M341850

Bolt

(SUB FOR AT131557)

12шт.

39

3050047

Sun Gear

(SUB FOR AT154672)

1шт.

41

1014563

Planet Pinion Carrier

(SUB FOR AT154639)

1шт.

42

3050050

Gear

(SUB FOR AT154674)

3шт.

43

4354748

Needle Bearing

(SUB FOR TH108830 ) (SUB FOR AT217768)

3шт.

45

4246249

Pin

(SUB FOR AT154706)

3шт.

46

4269482

Plate

(SUB FOR AT154774)

6шт.

47

3050046

Sun Gear

(SUB FOR AT154671)

1шт.

48

4252835

O-Ring

299.400 X 3.100 mm (SUB FOR AT154726)

1шт.

50

4144020

Spring Pin

(SUB FOR TH108833)

3шт.

54

99M7010

Plug

(SUB FOR TH109402)

2шт.

55

8050212

Pipe

(SUB FOR AT154836)

1шт.

58

94-2013

Fitting Plug

(SUB FOR TH100648)

1шт.

60

4255503

Hydraulic Motor

NLA, (ORDER 4255503EX)

1шт.

AT154747

Hydraulic Motor

NLA, (ORDER 4255503EX)

1шт.

4255503EX

Hydraulic Motor Reman

(REMAN FOR 4255503 OR AT154747)

1шт.

61

19M8168

Screw

M12 X 25

8шт.

65

4264452

Tube

(SUB FOR AT154293)

1шт.

66

3074223

Dipstick

(SUB FOR AT154129 ) (SUB FOR AT213790)

1шт.

68

4262343

Line

(SUB FOR AT154767)

1шт.

69

4343365

Cap

(SUB FOR AT154766 ) (SUB FOR AT204965)

1шт.

70

40M7046

Snap Ring

1шт.

73

37H99

Screw

0.100" X 1/4"

2шт.

75

T214405

Bolt

(SUB FOR TH101870, J932270)

12шт.

76

T56006

Washer

23.825 X 44.450 X 6.350 mm

12шт.

77

4080398

Pin Fastener

(SUB FOR TH101880)

2шт.
