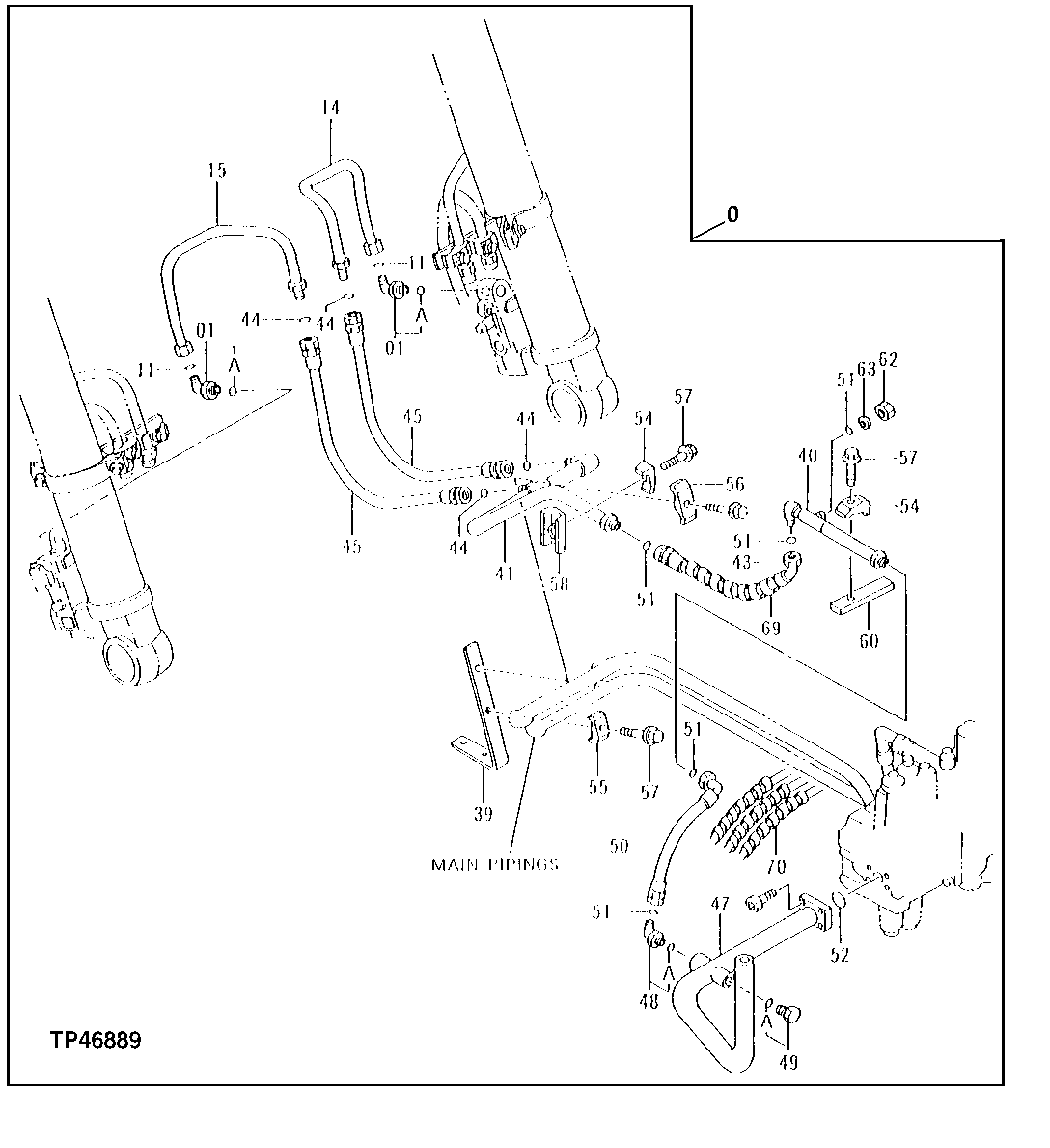

Запчасти John Deere 90ELC 298 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3360 HYDRAULIC SYSTEM

0

Kit

( AT171160 NO LONGER AVAILABLE) (BOO M CYLINDER LOAD LOWERING VALVE) (CONTA INS ALL ITEMS ON THIS PAGE - ADDITIONA L COMPONENTS LISTED ON PREVIOUS PAGES)

1шт.

1

A853388

Elbow Fitting

(SUB FOR TH108325 OR 4198799)

2шт.

1A

TH101926

O-Ring

28.700 X 3.500 mm

1шт.

11

T76938

O-Ring

23.520 X 1.780 mm

2шт.

14

8060460

Oil Line

(SUB FOR AT173721)

1шт.

15

8060462

Oil Line

(SUB FOR AT173722)

1шт.

39

9732450

Support

(SUB FOR AT173723)

1шт.

40

Oil Line

( 9741133 NLA) (SUB FOR AT173724)

1шт.

41

Oil Line

( 8057154 NLA) (SUB FOR AT173725)

1шт.

43

Hydraulic Hose

(SUB FOR AT173726 OR 4217348)

1шт.

44

T77858

O-Ring

18.771 X 1.778 mm

4шт.

45

4301059

Hydraulic Hose

(SUB FOR AT173727)

2шт.

47

8056825

Line

(SUB FOR AT202477)

1шт.

48

4205391

Elbow Fitting

(SUB FOR AT127606)

1шт.

48A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

49

4174541

Fitting

(SUB FOR TH110477)

1шт.

49A

4506418

O-Ring

(SUB FOR U46489)

1шт.

50

Hydraulic Hose

( 4318819 NLA) (SUB FOR AT173728)

1шт.

51

T76938

O-Ring

23.520 X 1.780 mm

5шт.

52

A811040

O-Ring

39.400 X 3.100 mm (SUB FOR TH102992)

1шт.

54

4190127

Clamp

(SUB FOR TH108313)

2шт.

55

4190126

Clamp

(SUB FOR TH109830)

1шт.

56

4189860

Clamp

(SUB FOR TH108314)

1шт.

57

19M8348

Cap Screw

M12 X 65

3шт.

58

9735916

Channel

(SUB FOR AT157648)

1шт.

60

Support

( AT173729 NOT AVAILABLE FOR SERVICE)

1шт.

62

Nut

(SUB FOR AT173730)( 4188138 NLA)

1шт.

63

Cap

(SUB FOR AT173731)( 4189095 NLA)

1шт.

69

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222 ( TH100996 NOT AVAILABLE FOR SERVICE) )

1шт.

70

Cover

( AT154951 NOT AVAILABLE FOR SERVICE)

6шт.
