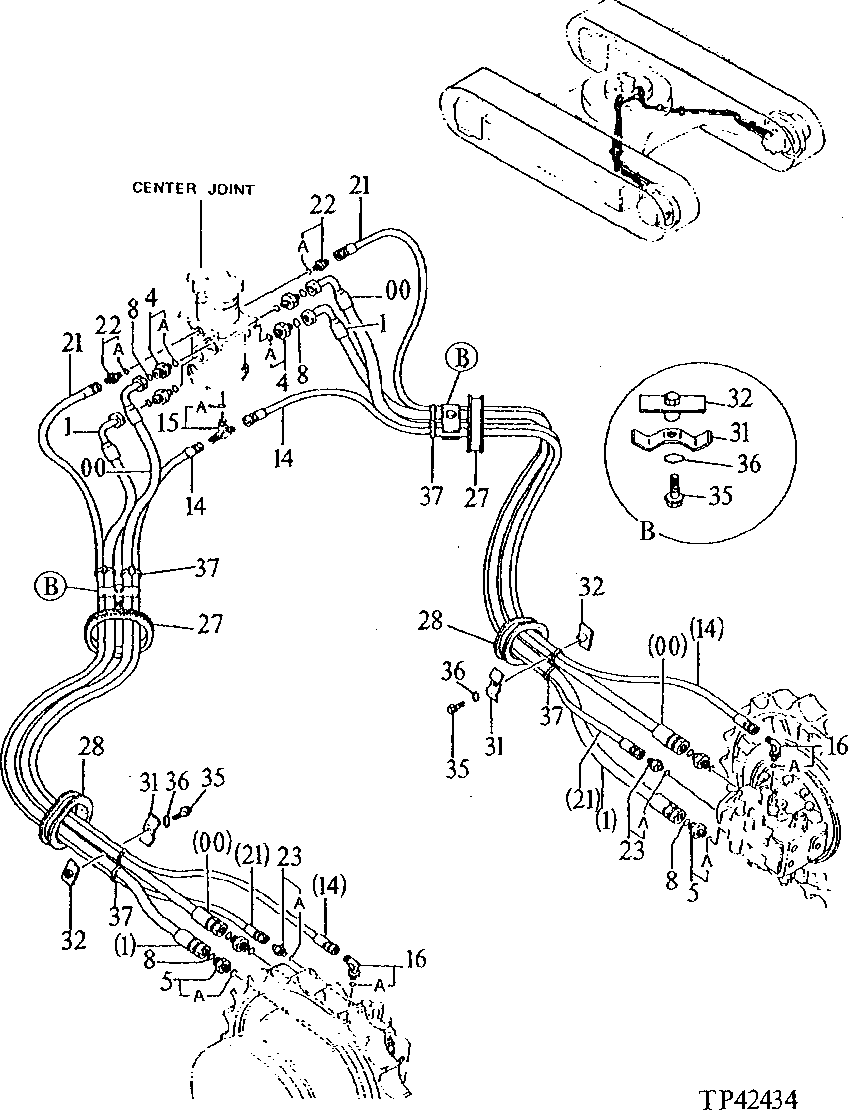

Запчасти John Deere 90ELC 20 - TRAVEL PIPINGS 0260 HYDRAULIC SYSTEM

0

AT155275

Hydraulic Hose

(REVERSE)

2шт.

1

AT155276

Hydraulic Hose

(FORWARD)

2шт.

4

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

4шт.

4A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

5

AT318016

Adapter Fitting

(SUB FOR 4189537, TH110496)

4шт.

5A

TH101926

O-Ring

1шт.

8

T77858

O-Ring

8шт.

14

AT155295

Hydraulic Hose

(DRAIN)

2шт.

15

4221224

Tee Fitting

(SUB FOR AT318018 AND AT154156)

1шт.

15A

4506418

O-Ring

(SUB FOR U46489)

1шт.

16

4154672

Elbow Fitting

(SUB FOR TH101008)

2шт.

16A

4506418

O-Ring

(SUB FOR U46489)

1шт.

21

AT155300

Hose

(PILOT)

2шт.

22

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

22A

M800650

Packing

1шт.

23

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

23A

M800650

Packing

1шт.

27

4191978

Grommet

(SUB FOR TH109400)

2шт.

28

Bushing

(AT214429 NOT AVAILABLE FOR SERVICE)

2шт.

31

4202103

Clamp

(SUB FOR TH108302)

4шт.

4202103

Clamp

(SUB FOR TH108302)

2шт.

32

9727822

Clamp

(SUB FOR TH109556)

4шт.

9727822

Clamp

(SUB FOR TH109556)

2шт.

35

19M7361

Cap Screw

4шт.

19M7361

Cap Screw

2шт.

36

12H301

Lock Washer

4шт.

37

H77698

Tie Band

8шт.

H77698

Tie Band

4шт.
