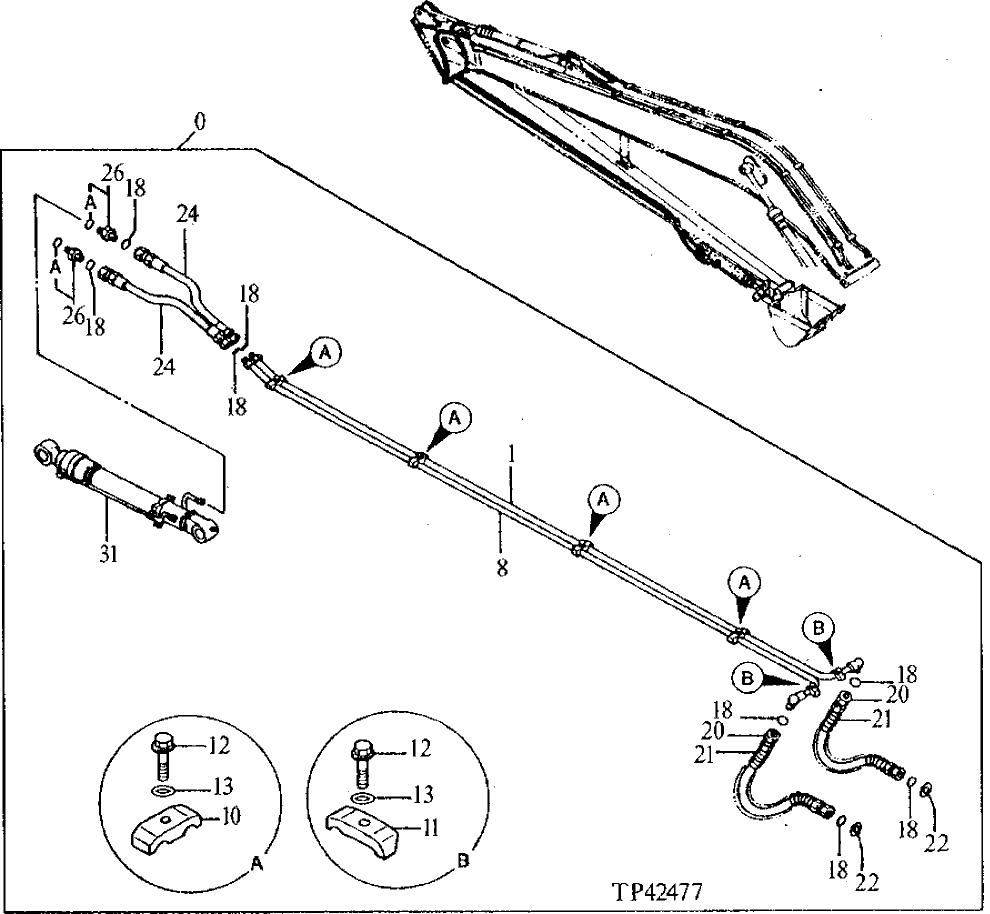

Запчасти John Deere 90ELC 286 - SUPER LONG FRONT 3360 HYDRAULIC SYSTEM

0

AT159517

Mounting Parts

WHOLEGOODS (SUPER LONG FRONT) (CONTAINS A LL ITEMS ON THIS PAGE - ADDITIONAL COMPONE NTS LISTED ON PREVIOUS AND FOLLOWING PAGES )

1шт.

1

8053319

Line

(SUB FOR AT159604)

1шт.

8

8053320

Line

(SUB FOR AT159605)

1шт.

10

4285723

Clamp

(SUB FOR TH109071 OR 4189859)

4шт.

11

4190126

Clamp

(SUB FOR TH109830)

2шт.

12

19M7363

Cap Screw

M12 X 60

6шт.

13

12H301

Lock Washer

1/2"

6шт.

18

T77858

O-Ring

8шт.

20

AT131293

Hydraulic Hose

2шт.

21

4053610

Hose Guard

(SUB FOR TH104495)

2шт.

22

4203220

Washer

(SUB FOR TH109827)

2шт.

24

AT168311

Hydraulic Hose

(SUB FOR AT155257, THIS APPLICATION)

2шт.

26

4197530

Adapter Fitting

(SUB FOR TH101006, OR X8-10F5OXTHI S APPLICATION ) (SUB FOR TH109595)

2шт.

26A

4506418

O-Ring

(SUB FOR U46489)

1шт.

31

Cylinder

(BUCKET) (SEE SEPARATE PAGE FOR DETAIL)

1шт.
