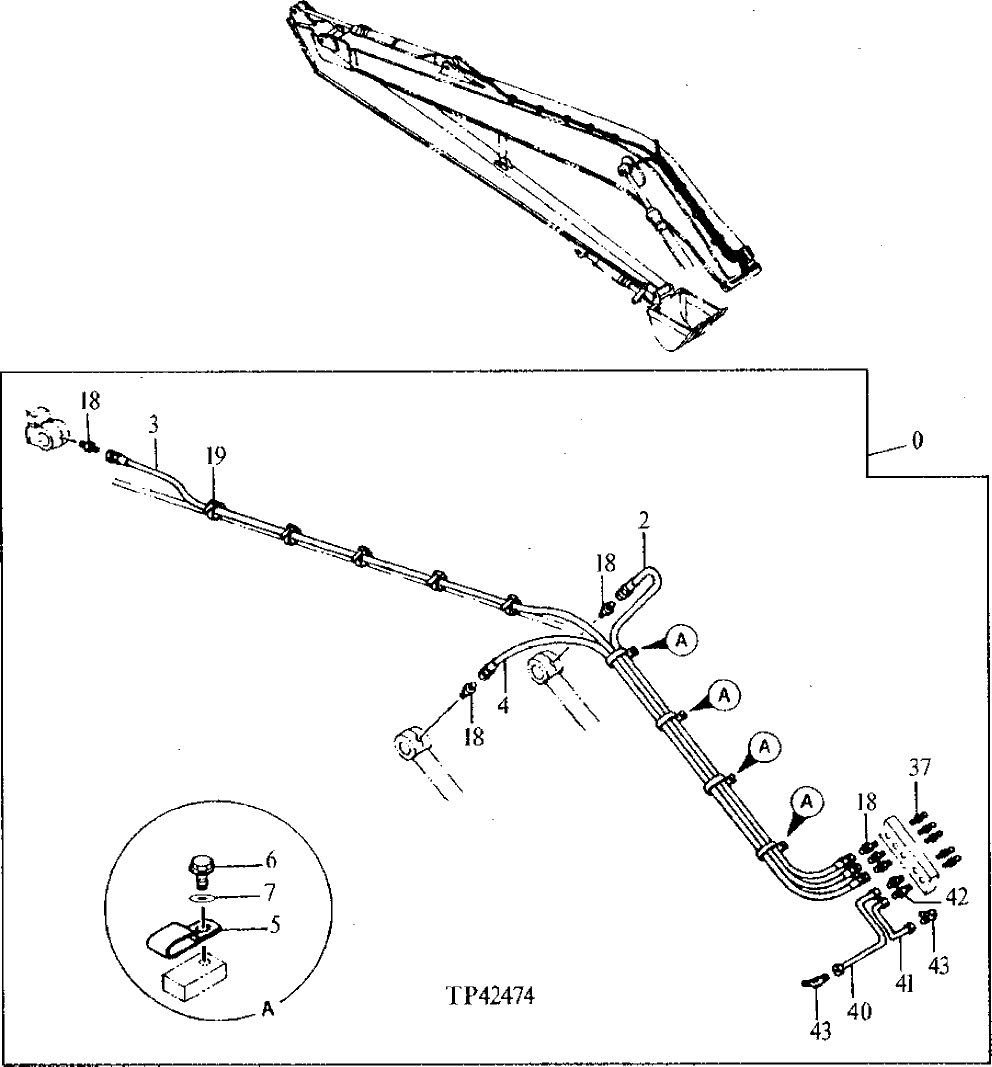

Запчасти John Deere 90ELC 283 - SUPER LONG FRONT 3360 HYDRAULIC SYSTEM

0

AT159517

Mounting Parts

WHOLEGOODS (SUPER LONG FRONT) (CONTAINS A LL ITEMS ON THIS PAGE - ADDITIONAL COMPONE NTS LISTED ON PREVIOUS AND FOLLOWING PAGES )

1шт.

2

AT64661

Hydraulic Hose

(SUB FOR AA29066)

1шт.

3

AT159576

Hydraulic Hose

1шт.

4

AT64661

Hydraulic Hose

(SUB FOR AA29066)

1шт.

5

T152608

Clamp

(SUB FOR AT154207)

4шт.

6

19M8324

Cap Screw

4шт.

7

12M7058

Lock Washer

(SUB FOR 12M7067)

4шт.

18

4154651

Adapter Fitting

(SUB FOR TH100963)

6шт.

19

H77698

Tie Band

(SUB FOR M88199)

5шт.

37

JD7769

Lubrication Fitting

(SUB FOR TH100364)

5шт.

40

4362212

Oil Line

(SUB FOR AT176815)(SUB FOR AT154739 , ALONG WITH AT176256 AND AT176258)

1шт.

41

4362211

Oil Line

(SUB FOR AT176816)(SUB FOR AT154740 , ALONG WITH AT176256 AND AT176258)

1шт.

42

4360981

Adapter Fitting

(SUB FOR TH101391, THIS APPL ICATION ) (SUB FOR AT176256)

2шт.

43

4345297

Elbow Fitting

(SUB FOR TH103262, THIS APPL ICATION ) (SUB FOR AT176258)

2шт.
