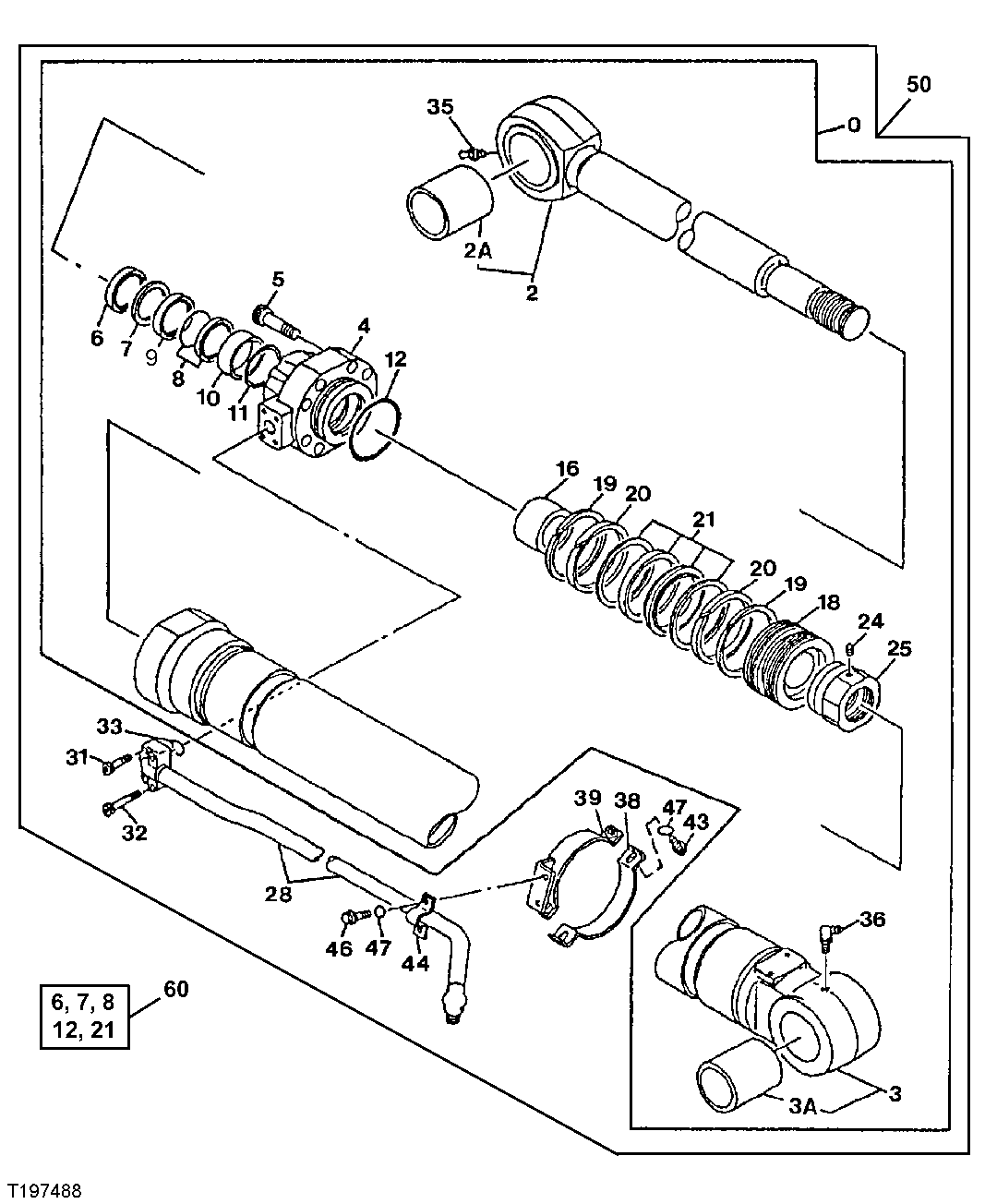

Запчасти John Deere 90ELC 279 - Bucket Cylinder 3360 HYDRAULIC SYSTEM

0

Cylinder

SUB AT182459 REPLACEMENT BUCKET CYLINDER

1шт.

2

4645896

Piston

SUB FOR 4645899, AT154813 OR 7021846

1шт.

2A

3031789

Bushing

SUB FOR TH110072

1шт.

3

4645993

Tube

SUB FOR AT154815 OR 9121234

1шт.

3A

3031788

Bushing

SUB FOR TH110045

1шт.

4

1023340

Cylinder Head

SUB FOR AT154636; SUB FOR AT181249; ALS O ORDER AT217758 DUST SEAL AND AT181252 RETAINING RING - SEE REPLACEMENT BUCKET CYLINDER PAGE FOR SEAL AND RING LOCATIO NS

1шт.

5

M342280

Screw

SUB FOR TH110086

8шт.

6

Seal

(K)

1шт.

7

AT264269

Seal

(K)

1шт.

8

Ring

(K)

1шт.

9

T205296

Seal

1шт.

10

AT264272

Bushing

SUB FOR T108019, AT154778, 4272960

1шт.

11

4272974

Snap Ring

SUB FOR AT154781

1шт.

12

AT264271

O-Ring

SUB FOR AT154736

1шт.

16

4253558

Ring

SUB FOR AT154731

1шт.

18

3050116

Piston

SUB FOR AT154678

1шт.

19

AT264265

Ring

SUB FOR AT154700

2шт.

20

AT264270

Wear Ring

SUB FOR AT154735

2шт.

21

4375665

Seal

SUB FOR AT154699, AT218147

1шт.

24

4201805

Set Screw

SUB FOR TH110037

1шт.

25

3050115

Nut

SUB FOR AT154677

1шт.

28

8046951

Line

SUB FOR AT154825

1шт.

31

19M8341

Screw

M12 X 45

2шт.

32

19M8444

Screw

M12 X 60

2шт.

33

AT264324

O-Ring

SUB FOR TH100044

1шт.

35

TH100074

Lubrication Fitting

1шт.

36

T116334

Lubrication Fitting

SUB FOR TH100075

1шт.

38

3050114

Clamp

SUB FOR AT154676

1шт.

39

8046957

Clamp

SUB FOR AT154829

1шт.

43

19M7550

Cap Screw

M10 X 35

2шт.

44

4194152

Clamp

SUB FOR TH110029

1шт.

46

19M7402

Cap Screw

M10 X 25

2шт.

47

12M7066

Lock Washer

10 mm

4шт.

50

AT175751

Arm

WHOLEGOODS; INCLUDES SHORT ARM, BUCKET CYLINDER AND LINKAGE; (NOT ILLUSTRATED ); CONTAINS ALL ITEMS ON THIS PAGE - AD DITIONAL COMPONENTS LISTED ON OTHER PAG ES

1шт.

AT175813

Arm

WHOLEGOODS; INCLUDES STANDARD ARM, BUCK ET CYLINDER AND LINKAGE; (NOT ILLUSTRATE D); CONTAINS ALL ITEMS ON THIS PAGE - AD DITIONAL COMPONENTS LISTED ON OTHER PAGE S

1шт.

AT176026

Arm

WHOLEGOODS; INCLUDES LONG ARM, BUCKET CYLINDER AND LINKAGE; (NOT ILLUSTRATED) ; CONTAINS ALL ITEMS ON THIS PAGE - ADD ITIONAL COMPONENTS LISTED ON OTHER PAGE S

1шт.

60

AT196468

Seal Kit

SUB FOR AT154869 AND 9103844; INCLUDES ALL PARTS MARKED (K)

1шт.
