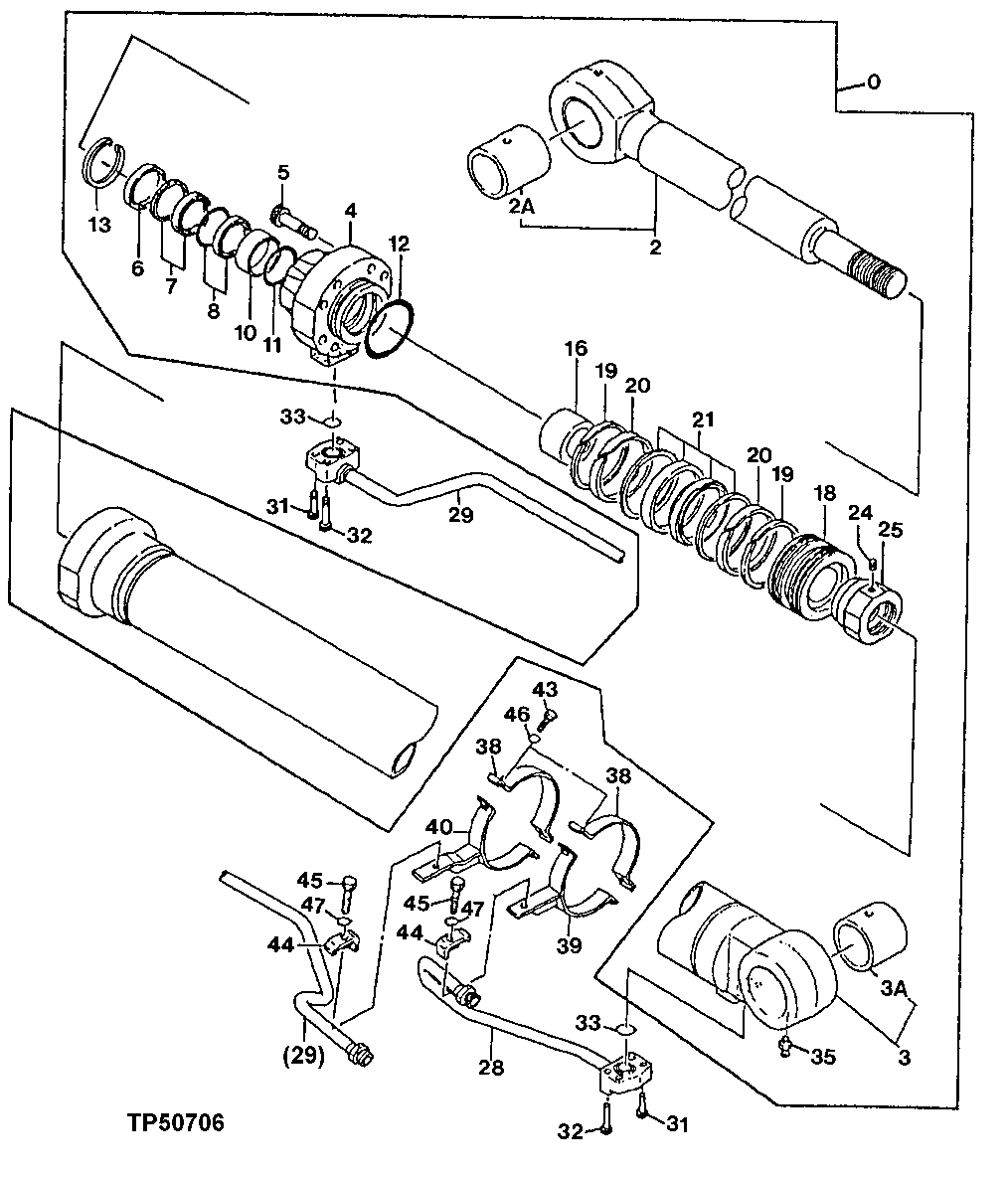

Запчасти John Deere 90ELC 275 - Right Boom Cylinder 3360 HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
0
AT264214
Hydraulic Cylinder Reman
USE IF AVAILABLE SUB AT 185406; SUB FOR AT154864
1шт.
2
Compressor Rod
AT154812 AND 7021845 NLA
1шт.
2A
3054062
Bushing
SUB FOR AT154689
1шт.
3
4645991
Tube
SUB FOR AT154814 OR 9121232
1шт.
3A
3054062
Bushing
SUB FOR AT154689
1шт.
4
1023338
Hydr. Cylinder Rod Guide
SUB FOR AT154635; ALSO ORDER AT181 238 AND AT181239; SUB FOR AT181237
1шт.
5
M342280
Screw
SUB FOR TH110086
8шт.
6
T204375
Seal
(K) SUB FOR AT181238 AND AT264293; SUB FOR TH110017, THIS APPLICATION
1шт.
7
AT264395
Seal
(K) SUB FOR TH110018
1шт.
8
Ring
(K)
1шт.
10
AT264321
Bushing
(K) SUB FOR AT154779 OR AT264273
1шт.
11
4264983
Snap Ring
SUB FOR AT131251
1шт.
12
AT264271
O-Ring
(K) SUB FOR AT154736
1шт.
13
4369507
Ring
RETAINING SUB FOR AT181239
1шт.
16
4371498
Spacer
SUB FOR AT154737; SUB FOR AT217812
1шт.
18
3050116
Piston
SUB FOR AT154678
1шт.
19
AT264265
Ring
SUB FOR AT154700
2шт.
20
AT264270
Wear Ring
SUB FOR AT154735
2шт.
21
Ring
(K)
1шт.
24
4201805
Set Screw
SUB FOR TH110037
1шт.
25
3050115
Nut
SUB FOR AT154677
1шт.
28
8046949
Line
SUB FOR AT154823
1шт.
29
8046953
Line
SUB FOR AT154827
1шт.
31
19M8341
Screw
M12 X 45
4шт.
33
AT264324
O-Ring
(K) SUB FOR TH100044
2шт.
35
TH100074
Lubrication Fitting
1шт.
38
3050114
Clamp
WHEN USED WITH AT154635 OR AT181237 CYLINDE R HEAD ORDER (2) AT154676; SUB FOR AT154676
1шт.
39
8063900
Clamp
SUB FOR AT154822, THIS APP LICATION; SUB FOR AT181241
1шт.
40
8052651
Clamp
SUB FOR AT154843
1шт.
43
Cap Screw
M10 X 35 WHEN USED WITH AT154635 OR AT 181237 CYLINDER HEAD) ORDER (4) 19M7550
2шт.
44
4363058
Clamp
WHEN USED WITH AT154635 OR AT181237 CYLI NDER HEAD SUB FOR TH100947, THIS APPLICAT ION; ORDER (2) AT181242 SUB FOR AT181242
1шт.
45
Cap Screw
M12 X 65 WHEN USED WITH AT154635 OR AT 181237 CYLINDER HEAD ORDER (2) 19M8348
1шт.
47
12H301
Lock Washer
1/2"
2шт.
48
AT196466
Seal Kit
MARKED WITH K; NOT ILLUSTRATED
1шт.
Выбрано товаров: 36
