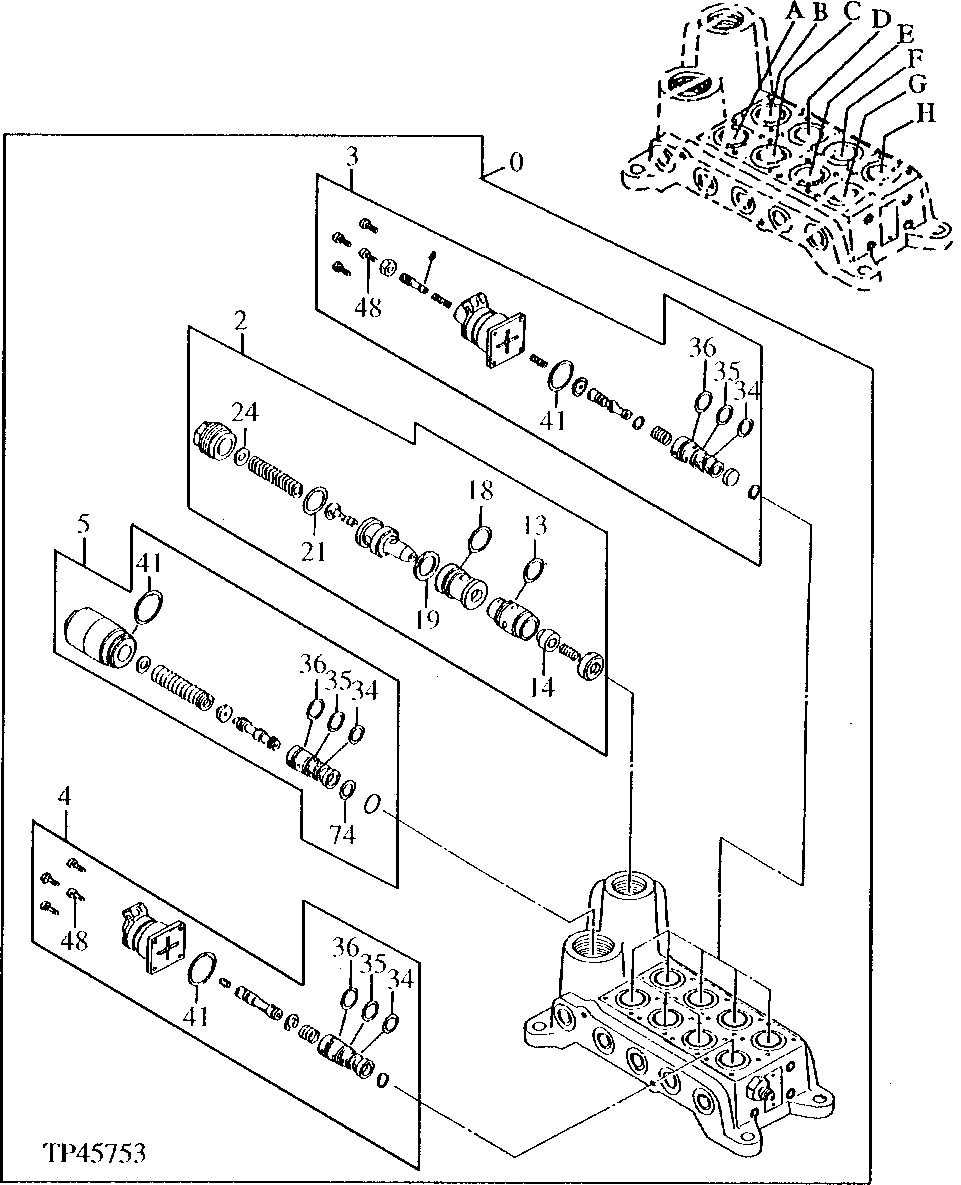

Запчасти John Deere 90ELC 268 - Solenoid Valve (015000 - ) 3360 HYDRAULIC SYSTEM

0

4328003

Solenoid Valve

(SUB FOR AT202460)

1шт.

0A

Section

(SWING)

1шт.

0B

Section

(BUCKET)

1шт.

0C

Section

(PROPEL)

1шт.

0D

Section

(BOOM)

1шт.

0E

Section

(POWER BOOST)

1шт.

0F

Section

(ARM)

1шт.

0G

Section

(SWING BRAKE RELEASE)

1шт.

0H

Section

(SPEED CHANGE)

1шт.

2

4289288

Pressure Relief Valve

(SUB FOR AT154417)

1шт.

3

4288336

Solenoid Valve

(SUB FOR AT154415)

1шт.

4

4288337

Solenoid Valve

(SUB FOR AT154416)

1шт.

5

9241274

Flow Control Hyd. Valve

(SUB FOR AT159436 OR 4308987)

1шт.

13

4201993

O-Ring

(SUB FOR AT204778 OR 0601201)

1шт.

14

0605001

Check Valve

(SUB FOR AT204779)

1шт.

18

CH11563

Packing

(SUB FOR AT153900)

1шт.

19

4487648

Gasket

(SUB FOR TH109252 OR 0308704)

1шт.

21

0308705

O-Ring

23 X 2.500 mm (SUB FOR TH109253 OR 0308705)

1шт.

24

9228867

Shim

(SUB FOR 4293211 OR AT204792 OR AT159437)

1шт.

34

4185600

O-Ring

(SUB FOR AT153902 ) (SUB FOR AT153902)

1шт.

35

R99052

O-Ring

14.800 X 1.900 mm

1шт.

36

0408411

O-Ring

16.800 X 1.900 mm (SUB FOR A T153904, 0408411 OR TH106081)

1шт.

41

0408412

O-Ring

27.500 X 2 mm (SUB FOR AT153905)

1шт.

48

0408413

Screw

(SUB FOR AT153906)

4шт.

74

4506412

Packing

(SUB FOR CH10568)

1шт.
