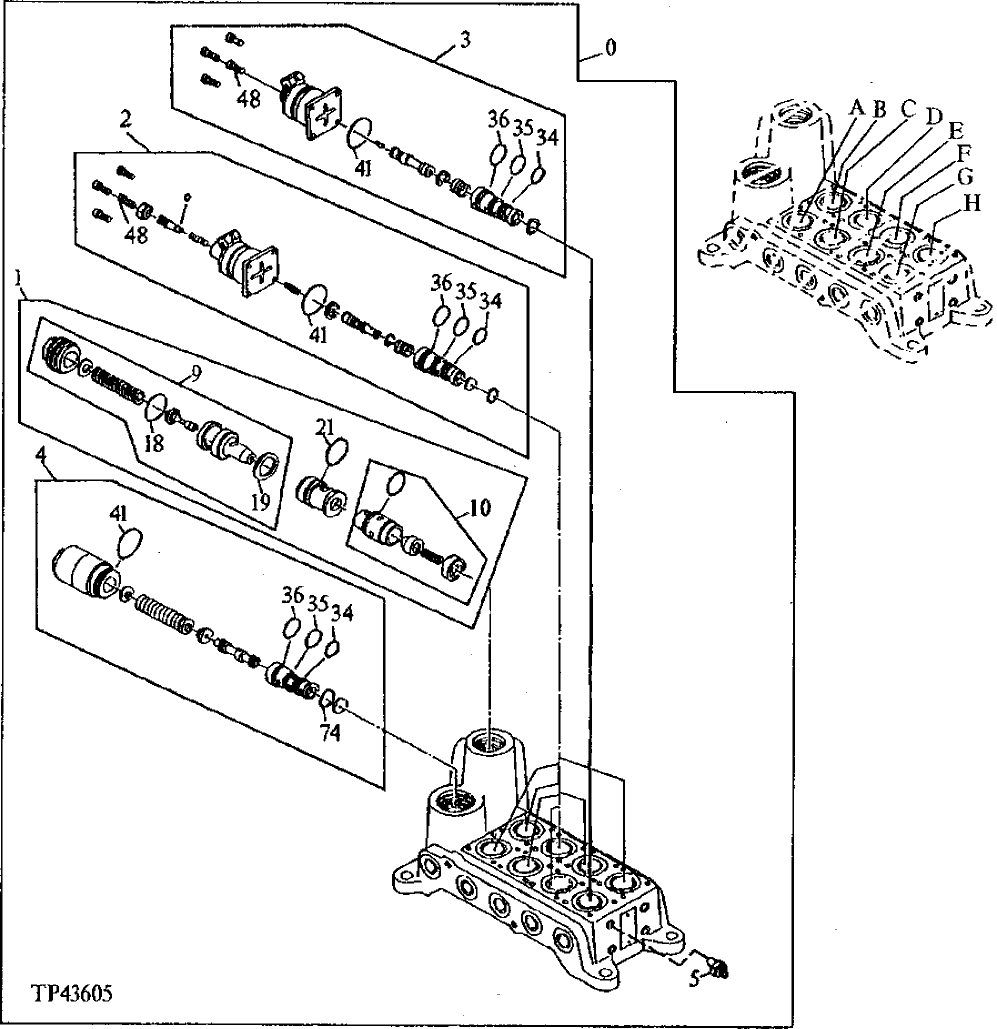

Запчасти John Deere 90ELC 267 - Solenoid Valve ( - 014999) 3360 HYDRAULIC SYSTEM

0

4299959

Solenoid Valve

(SUB FOR AT158394)

1шт.

0A

Section

(SWING)

1шт.

0B

Section

(BUCKET)

1шт.

0C

Section

(PROPEL)

1шт.

0D

Section

(BOOM)

1шт.

0E

Section

(POWER BOOST)

1шт.

0F

Section

(ARM)

1шт.

0G

Section

(SWING BRAKE RELEASE)

1шт.

0H

Section

(SPEED CHANGE)

1шт.

1

4289288

Pressure Relief Valve

(SUB FOR AT154417)

1шт.

2

4288336

Solenoid Valve

(SUB FOR AT154415)

7шт.

3

4288337

Solenoid Valve

(SUB FOR AT154416)

1шт.

4

9241274

Flow Control Hyd. Valve

(SUB FOR AT159436 OR 4308987)

1шт.

5

0408414

Adapter Fitting

(SUB FOR AT134356)

1шт.

9

4309970

Pressure Relief Valve

(SUB FOR AT159438)(USE IF AVAILABLE) ( IF 4309970 NOT AVAILABLE, SUB 9218128)

1шт.

9218128

Solenoid Hydraulic Valve

(SUB FOR 4309970)(BREAKDOW N NOT CURRENTLY AVAILABLE)

1шт.

10

4309971

Check Valve

(SUB FOR AT159439)

1шт.

18

CH11563

Packing

(SUB FOR AT153900)

1шт.

19

4487648

Gasket

(SUB FOR TH109252 OR 0308704)

1шт.

21

4487138

O-Ring

(K) (SUB FOR TH109253 OR 0308705)

1шт.

34

4185600

O-Ring

(SUB FOR AT153902)

1шт.

35

R99052

O-Ring

(SUB FOR AT153903)

1шт.

36

4163873

O-Ring

(SUB FOR AT153904, 0408411 OR TH106081)

1шт.

41

0408412

O-Ring

(SUB FOR AT153905)

1шт.

48

0408413

Screw

(SUB FOR AT153906)

ARшт.

74

4506412

Packing

(SUB FOR CH10568)

1шт.
