264 - FRONT PIPINGS FOR STANDARD ARM

Запчасти John Deere 90ELC 264 - FRONT PIPINGS FOR STANDARD ARM 3360 HYDRAULIC SYSTEM

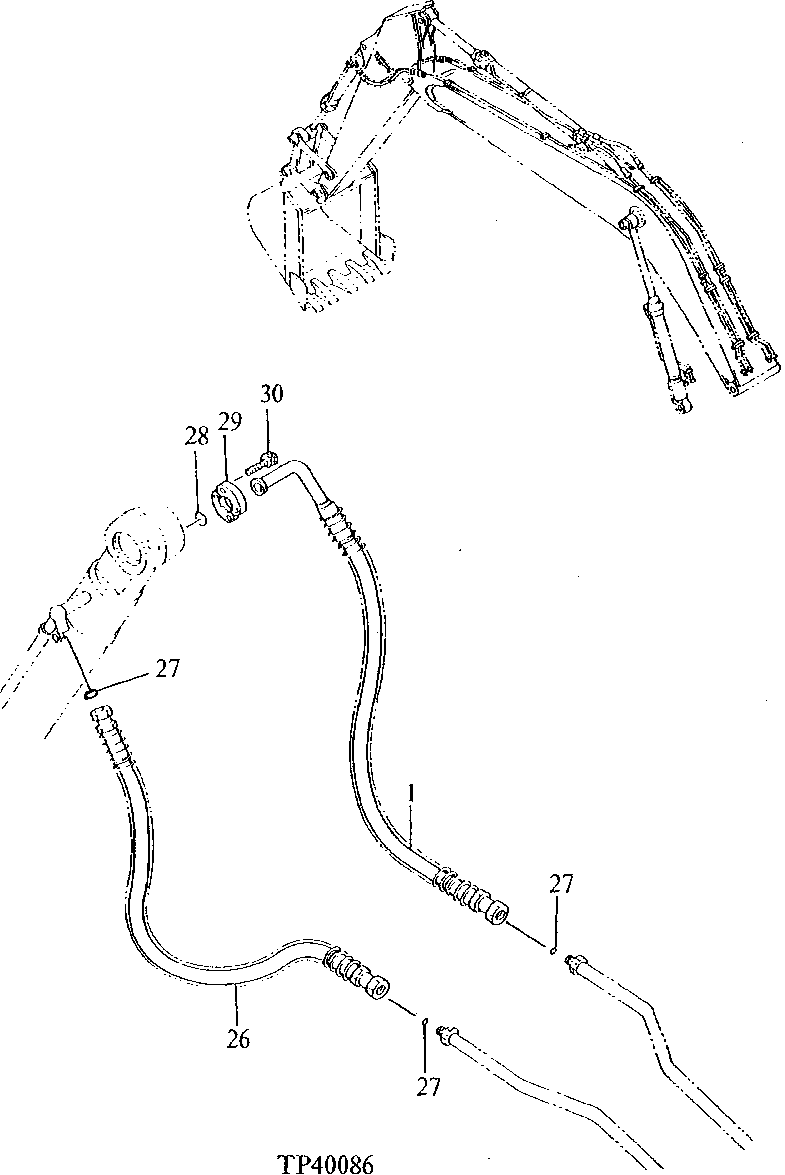

Схема запчастей John Deere 90ELC - 264 - FRONT PIPINGS FOR STANDARD ARM 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT155740

Hydraulic Hose

1шт.

26

AT155741

Hydraulic Hose

1шт.

27

T77858

O-Ring

3шт.

28

T78313

O-Ring

1шт.

29

4085560

Flange Fitting

(SUB FOR TH101960)

2шт.

30

19M8395

Screw

M12 X 40

4шт.

40

AT175813

Arm

WHOLEGOODS (INCLUDES STANDARD ARM, BUCK ET CYLINDER AND LINKAGE) (NOT ILLUSTRATE D) (CONTAINS ALL ITEMS ON THIS PAGE - AD DITIONAL COMPONENTS LISTED ON OTHER PAGE S)

1шт.
