263 - FRONT PIPINGS FOR SHORT ARM

Запчасти John Deere 90ELC 263 - FRONT PIPINGS FOR SHORT ARM 3360 HYDRAULIC SYSTEM

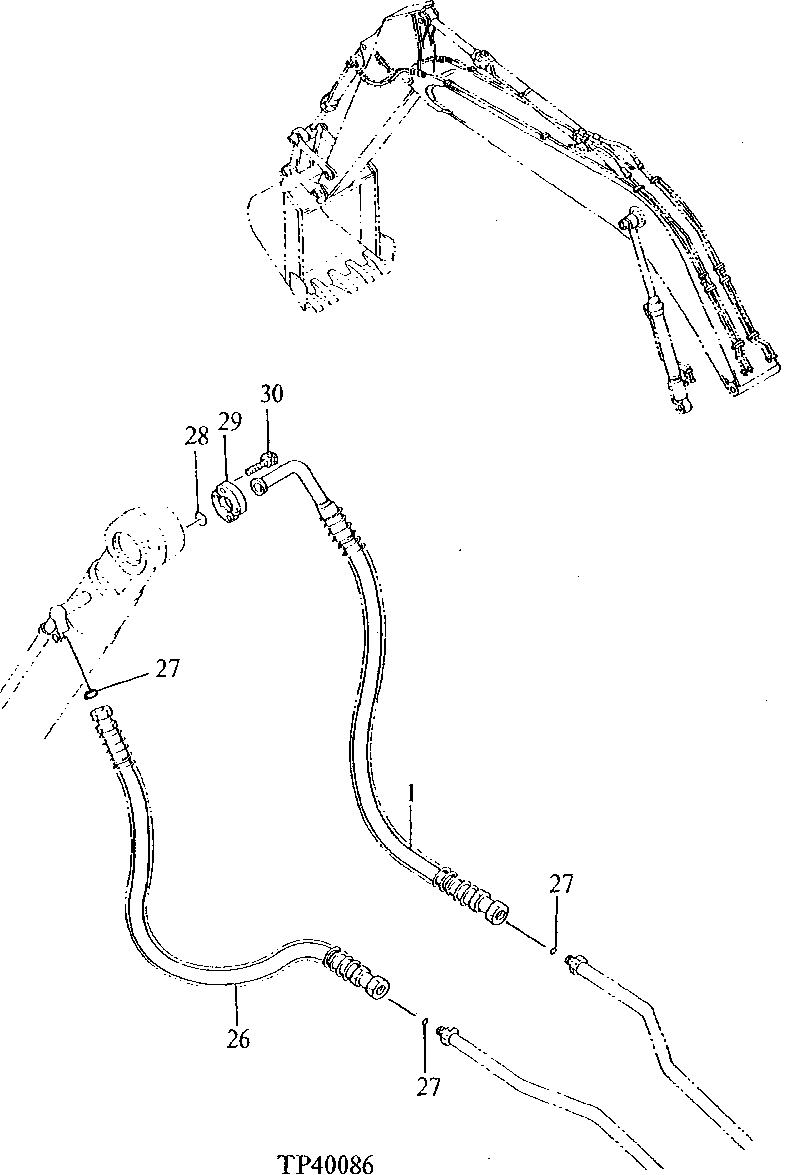

Схема запчастей John Deere 90ELC - 263 - FRONT PIPINGS FOR SHORT ARM 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT155740

Hydraulic Hose

1шт.

26

AT155742

Hydraulic Hose

1шт.

27

T77858

O-Ring

3шт.

28

T78313

O-Ring

1шт.

29

4085560

Flange Fitting

(SUB FOR TH101960)

2шт.

30

19M8395

Screw

M12 X 40

4шт.

40

AT175751

Arm

WHOLEGOODS (INCLUDES SHORT ARM, BUCKET CYLINDER AND LINKAGE) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDIT IONAL COMPONENTS LISTED ON OTHER PAGES)

1шт.
