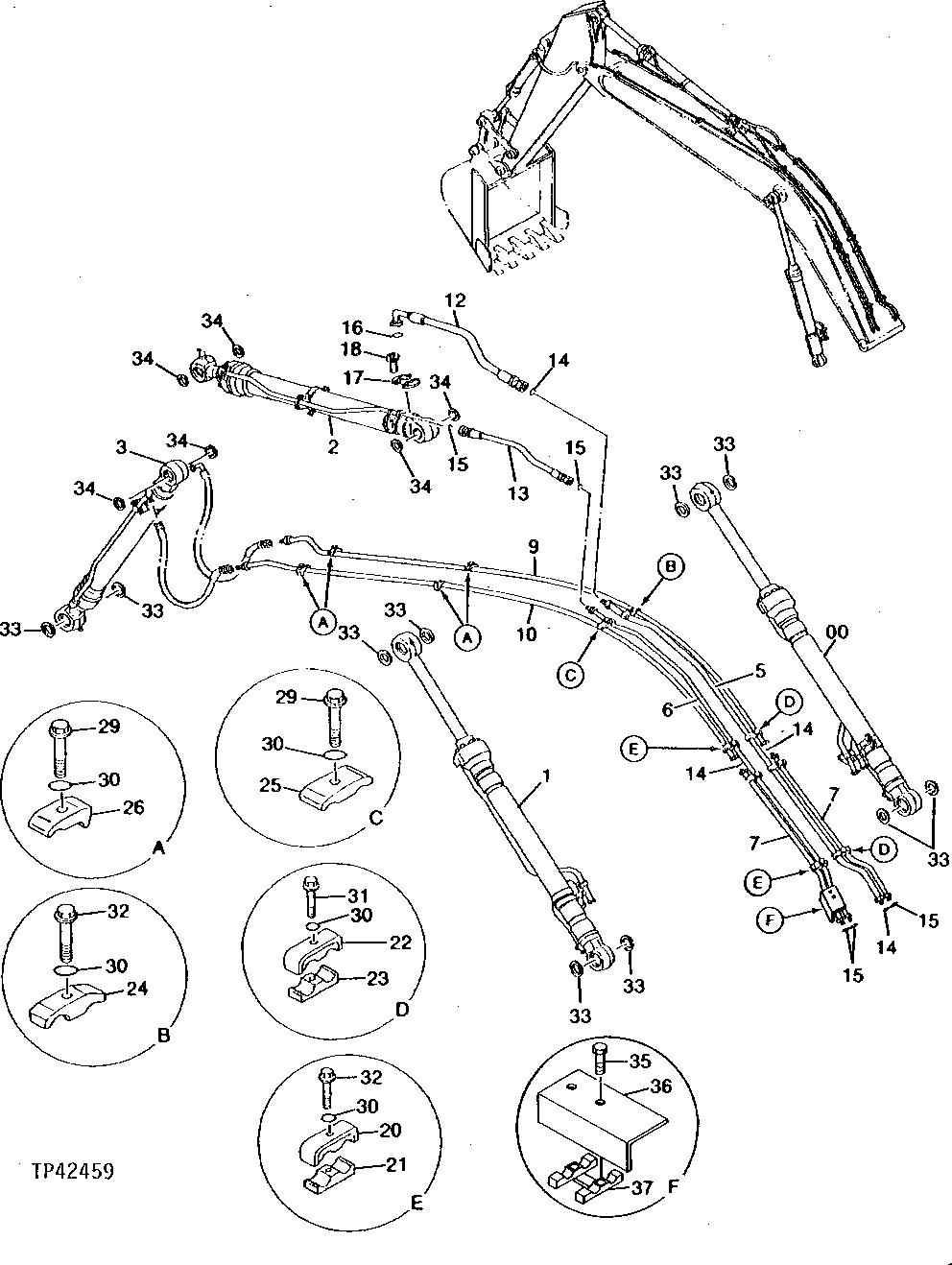

Запчасти John Deere 90ELC 262 - FRONT PIPINGS 3360 HYDRAULIC SYSTEM

0

Cylinder

(RIGHT BOOM) (SEE SEPARATE PAGE FOR DETAIL)

1шт.

1

Cylinder

(LEFT BOOM) (SEE SEPARATE PAGE FOR DETAIL)

1шт.

2

Cylinder

(ARM) (SEE SEPARATE PAGE FOR DETAIL)

1шт.

3

Cylinder

(BUCKET) (SEE SEPARATE PAGE FOR DETAIL)

1шт.

5

8048307

Line

(SUB FOR AT154833)

1шт.

6

8048306

Line

(SUB FOR AT154832)

1шт.

7

9735233

Line

(SUB FOR AT154874)

2шт.

9

8048305

Line

(SUB FOR AT154831)

1шт.

10

8048304

Line

(SUB FOR AT154830)

1шт.

12

AT131302

Hydraulic Hose

1шт.

13

AT131303

Hydraulic Hose

1шт.

14

T76938

O-Ring

4шт.

15

T77858

O-Ring

5шт.

16

T78313

O-Ring

1шт.

17

4085560

Flange Fitting

(SUB FOR TH101960)

2шт.

18

19M8395

Screw

M12 X 40

4шт.

20

4285723

Clamp

(SUB FOR AT155738)

3шт.

21

AT318021

Clamp

(SUB FOR 4285722, AT155739)

3шт.

22

4285725

Clamp

(SUB FOR AT155351)

3шт.

23

AT309596

Clamp

(SUB FOR AT155350, 4285724)

3шт.

24

4153488

Clamp

(SUB FOR TH103780)

1шт.

25

4285723

Clamp

(SUB FOR TH109071 OR 4189859)

1шт.

26

4190126

Clamp

(SUB FOR TH109830)

4шт.

29

19M7363

Cap Screw

M12 X 60

5шт.

30

12H301

Lock Washer

1/2"

12шт.

31

19M8088

Cap Screw

M12 X 75

3шт.

32

19M7753

Cap Screw

M12 X 70

4шт.

33

TH102445

Seal

(I.D. 100 MM - O.D. 115 MM)

10шт.

34

TH102446

Seal

(I.D. 80 MM - O.D. 95 MM)

6шт.

35

19M7808

Screw

M10 X 65

2шт.

19M8348

Cap Screw

M12 X 65

2шт.

36

9738027

Cover

(SUB FOR AT159995)

1шт.

37

9738026

Clamp

(SUB FOR AT159996)

1шт.
