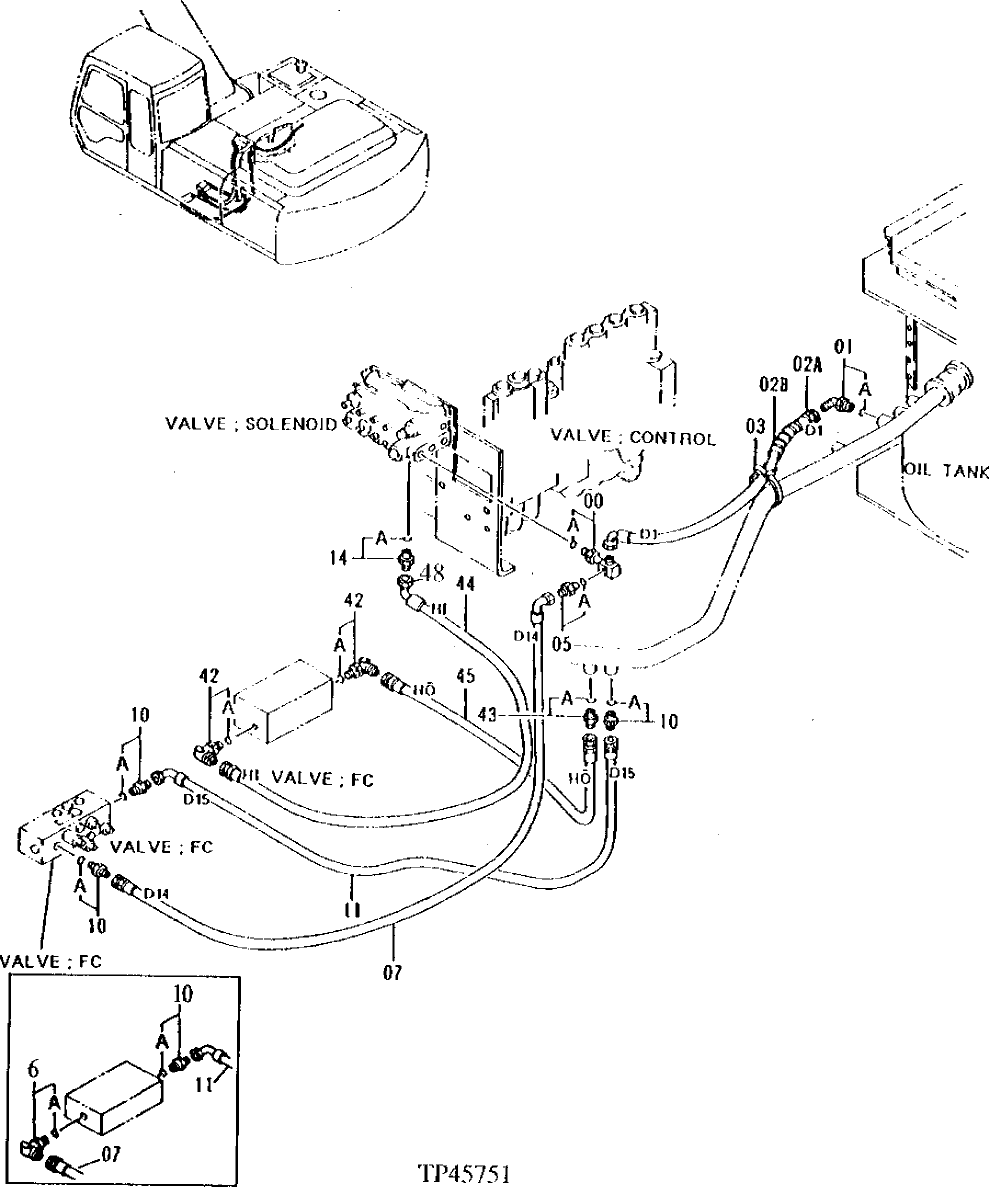

Запчасти John Deere 90ELC 259 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

0

4284063

Adapter Fitting

(SUB FOR AT155330)

1шт.

0A

4506418

O-Ring

(SUB FOR U46489)

1шт.

1

4154672

Elbow Fitting

(SUB FOR TH101008)

1шт.

1A

4506418

O-Ring

(SUB FOR U46489)

1шт.

2A

4284081

Hose

(SUB FOR AT155336)

1шт.

2B

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

1шт.

3

H77698

Tie Band

1шт.

5

4261938

Fitting

(SUB FOR AT154285)(FILTER INSIDE FITTING)

1шт.

5A

CH11570

O-Ring

1шт.

6

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

6A

CH11570

O-Ring

1шт.

7

4447637

Hydraulic Hose

(SUB FOR 4330801 OR AT71731)(RETU RN OIL) (ALSO ORDER AE24616 ELBOW)

1шт.

AT72803

Hydraulic Hose

(SUB FOR AT204823)

1шт.

10

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

4200466

Adapter Fitting

(SUB FOR TH108320)

3шт.

10A

CH11570

O-Ring

1шт.

11

AT155339

Hydraulic Hose

1шт.

14

4261938

Fitting

(SUB FOR AT154285)(FILTER INSIDE FITTING)

1шт.

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

14A

CH11570

O-Ring

1шт.

42

4200471

Elbow Fitting

(SUB FOR TH108399)

2шт.

42A

4506418

O-Ring

(SUB FOR U46489)

1шт.

43

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

43A

M800650

Packing

1шт.

44

AT48434

Hydraulic Hose

1шт.

45

AT57860

Hydraulic Hose

1шт.

48

AU43156

Elbow Fitting

1шт.
