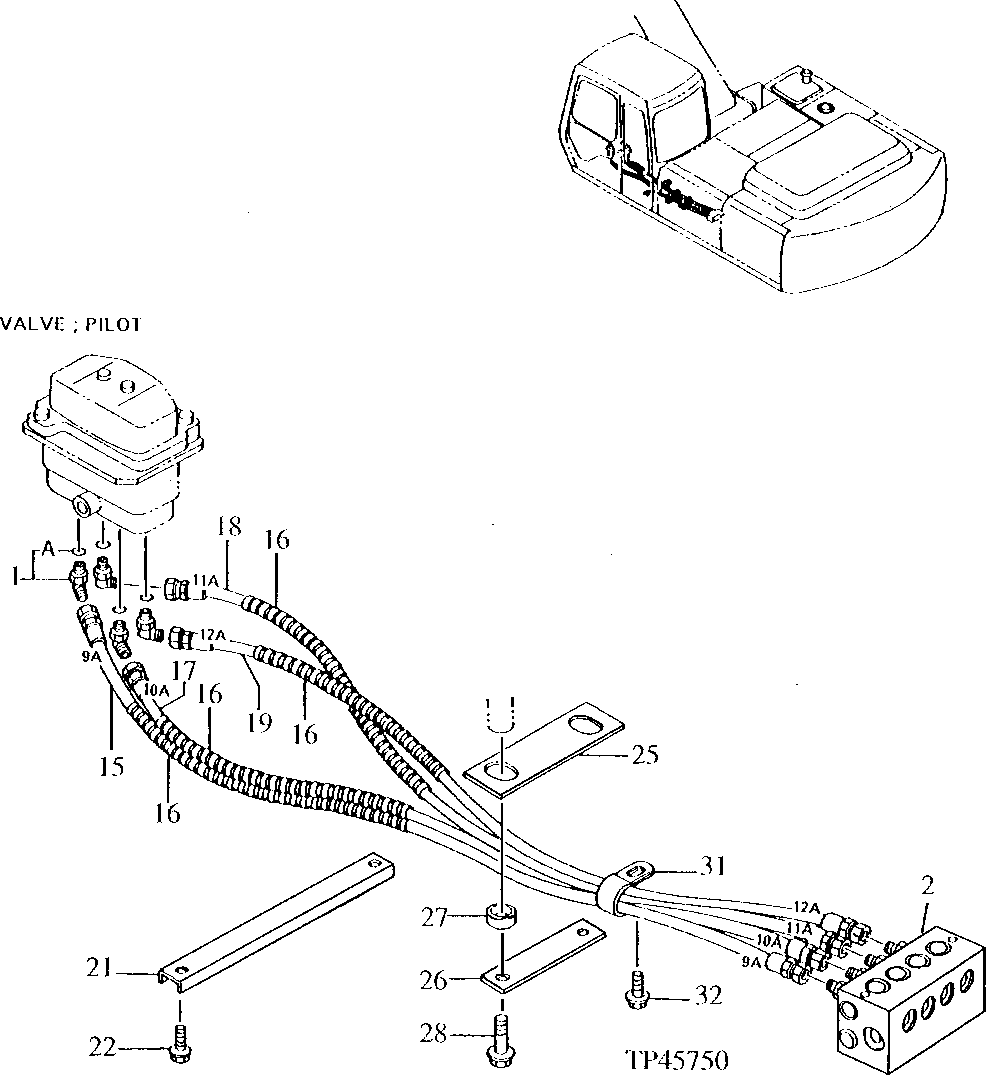

Запчасти John Deere 90ELC 257 - PILOT PIPINGS (015000 - ) 3360 HYDRAULIC SYSTEM

1

AT318014

Elbow Fitting

SUB FOR 4156434, SUB FOR TH101930

4шт.

1A

M800650

Packing

1шт.

2

4325812

Flow Control Hyd. Valve

SUB FOR AT202457

1шт.

15

4330135

Hydraulic Hose

SUB FOR AT204830

1шт.

16

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

4шт.

17

4364423

Hydraulic Hose

SUB FOR AT204831 AND 4330136

1шт.

18

4330137

Hydraulic Hose

SUB FOR AT204832

1шт.

19

4330136

Hydraulic Hose

SUB FOR AT204833 AND 4330138

1шт.

21

4323723

Channel

SUB FOR AT201277

1шт.

22

19M8324

Cap Screw

M10 X 16

2шт.

12M7066

Lock Washer

10 mm

2шт.

25

4270771

Plate

SUB FOR AT154311

1шт.

26

9736384

Plate

SUB FOR AT154544

1шт.

27

R54204

Half Sleeve

SUB FOR AT154312 OR 4270773

2шт.

28

19M8324

Cap Screw

M10 X 16

2шт.

12M7066

Lock Washer

10 mm

2шт.

31

AT121321

Hose Clamp

1шт.

32

19M7881

Screw

M8 X 20

1шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.
