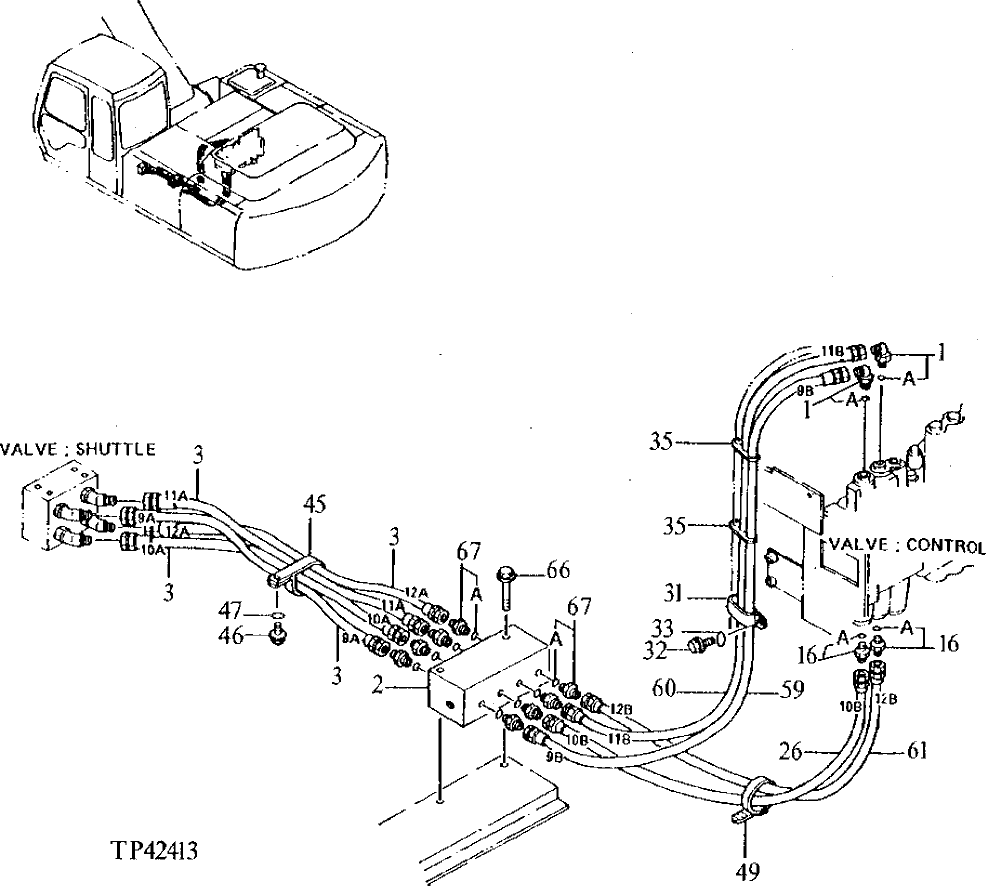

Запчасти John Deere 90ELC 254 - PILOT PIPINGS ( - 014999) 3360 HYDRAULIC SYSTEM

1

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

2шт.

1A

CH11570

O-Ring

1шт.

2

4295125

Hyd Actuated Control Valve

(SUB FOR AT158445)(FLOW CON TROL - PROPEL PILOT CIRCUIT)

1шт.

3

AR86055

Hydraulic Hose

4шт.

16

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

16A

CH11570

O-Ring

1шт.

26

AT48434

Hydraulic Hose

(RIGHT REVERSE)

1шт.

31

Clip

(NOT AVAILABLE FOR SERVICE)

1шт.

32

19M7402

Cap Screw

1шт.

33

12M7066

Lock Washer

1шт.

35

4203210

Clamp

(SUB FOR TH109599)

2шт.

45

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

46

19M7402

Cap Screw

1шт.

47

12M7066

Lock Washer

1шт.

49

H77698

Tie Band

1шт.

59

AT48422

Hydraulic Hose

(RIGHT FORWARD)

1шт.

60

AT48422

Hydraulic Hose

(LEFT FORWARD)

1шт.

61

AT48434

Hydraulic Hose

(LEFT REVERSE)

1шт.

66

4305337

Screw With Washer

(SUB FOR AT159662)

2шт.

67

4200466

Adapter Fitting

(SUB FOR TH108320)

8шт.

67A

CH11570

O-Ring

1шт.
