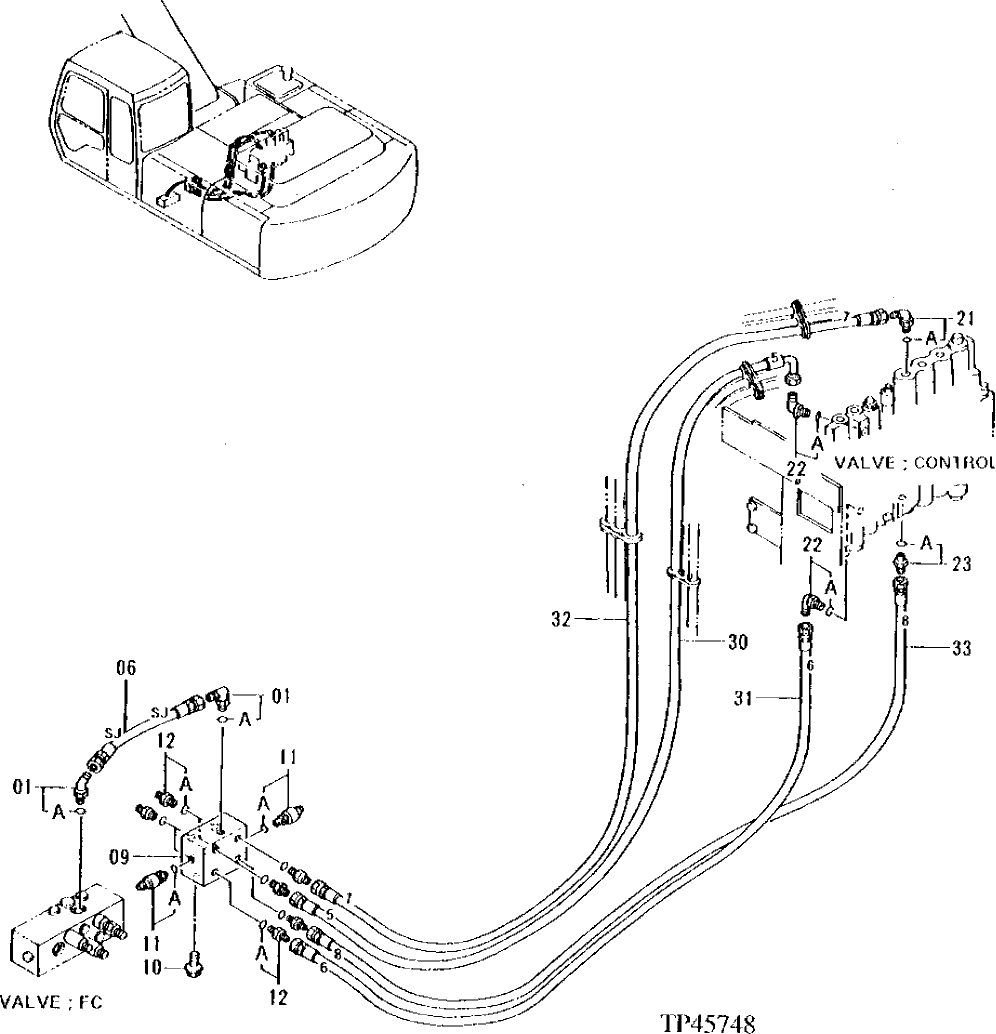

Запчасти John Deere 90ELC 253 - PILOT PIPINGS (01500 - ) 3360 HYDRAULIC SYSTEM

1

4154670

Elbow Fitting

(SUB FOR TH100951)

2шт.

1A

M800650

Packing

1шт.

6

AR101376

Hydraulic Hose

1шт.

9

4254613

Flow Control Hyd. Valve

(SUB FOR AT154218)

1шт.

10

19M7932

Cap Screw

2шт.

12M7056

Lock Washer

(SUB FOR 12M7065)

2шт.

11

4254563

Pressure Switch

(SUB FOR AT154212)

2шт.

11A

CH19111

O-Ring

1шт.

12

4200466

Adapter Fitting

(SUB FOR TH108320)

8шт.

12A

CH11570

O-Ring

1шт.

21

4208913

Adapter Fitting

(SUB FOR AT126458)

1шт.

21A

CH11570

O-Ring

1шт.

22

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

2шт.

22A

CH11570

O-Ring

1шт.

23

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

23A

CH11570

O-Ring

1шт.

30

AT68899

Hydraulic Hose

1шт.

31

4447637

Hydraulic Hose

(SUB FOR AT71731)

1шт.

32

4203024

Hydraulic Hose

(SUB FOR TH108468)

1шт.

33

AR103791

Hose

1шт.
