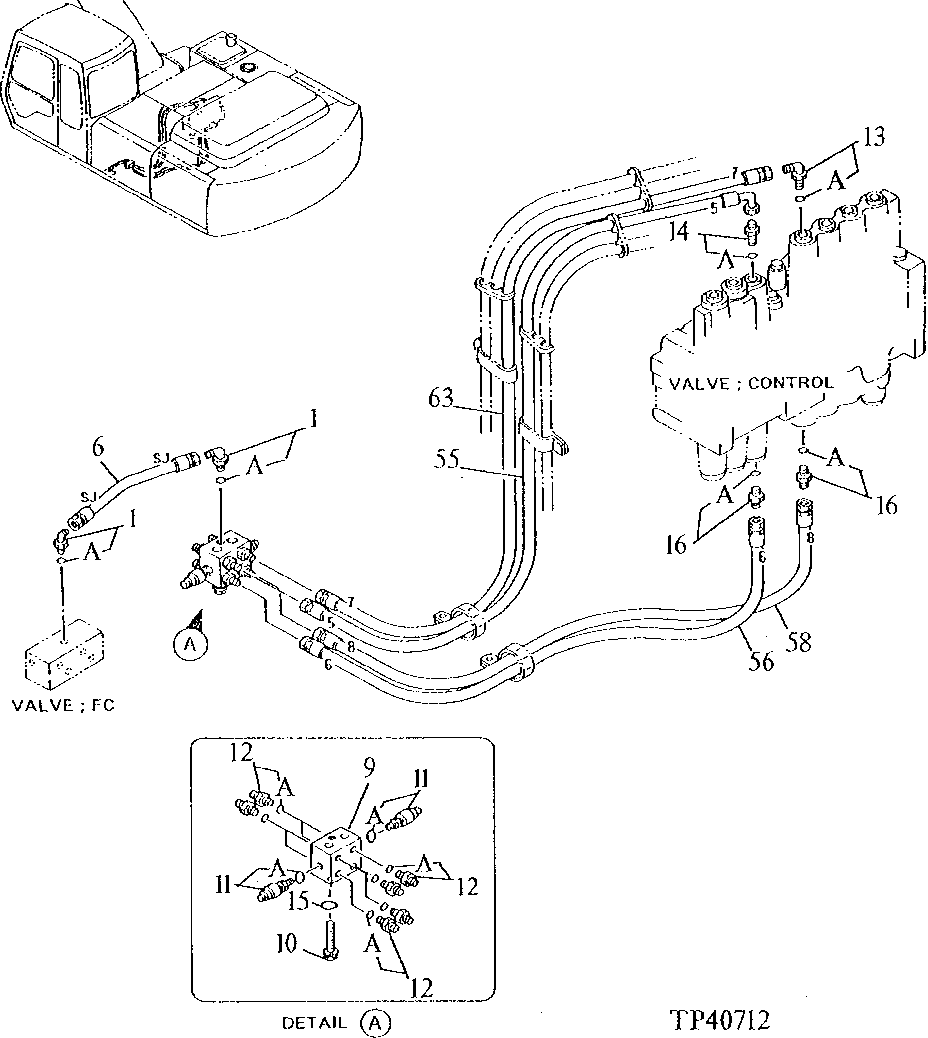

Запчасти John Deere 90ELC 252 - PILOT PIPINGS ( - 014999) 3360 HYDRAULIC SYSTEM

1

4154670

Elbow Fitting

(SUB FOR TH100951)

2шт.

1A

M800650

Packing

1шт.

6

AR101376

Hydraulic Hose

1шт.

9

4254613

Flow Control Hyd. Valve

(SUB FOR AT154218)

1шт.

10

19M7932

Cap Screw

2шт.

11

4254563

Pressure Switch

(SUB FOR AT154212)

2шт.

11A

CH19111

O-Ring

1шт.

12

4200466

Adapter Fitting

(SUB FOR TH108320)

8шт.

12A

CH11570

O-Ring

1шт.

13

4208913

Adapter Fitting

(SUB FOR AT126458)

1шт.

13A

CH11570

O-Ring

1шт.

14

4202422

Adapter Fitting

(SUB FOR TH108440)

1шт.

14A

CH11570

O-Ring

1шт.

15

12M7056

Lock Washer

(SUB FOR 12M7065)

2шт.

16

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

16A

CH11570

O-Ring

1шт.

55

AT68899

Hydraulic Hose

1шт.

56

4447637

Hydraulic Hose

(SUB FOR AT71731)

1шт.

58

AR103791

Hose

1шт.

63

4203024

Hydraulic Hose

(SUB FOR TH108468)

1шт.
