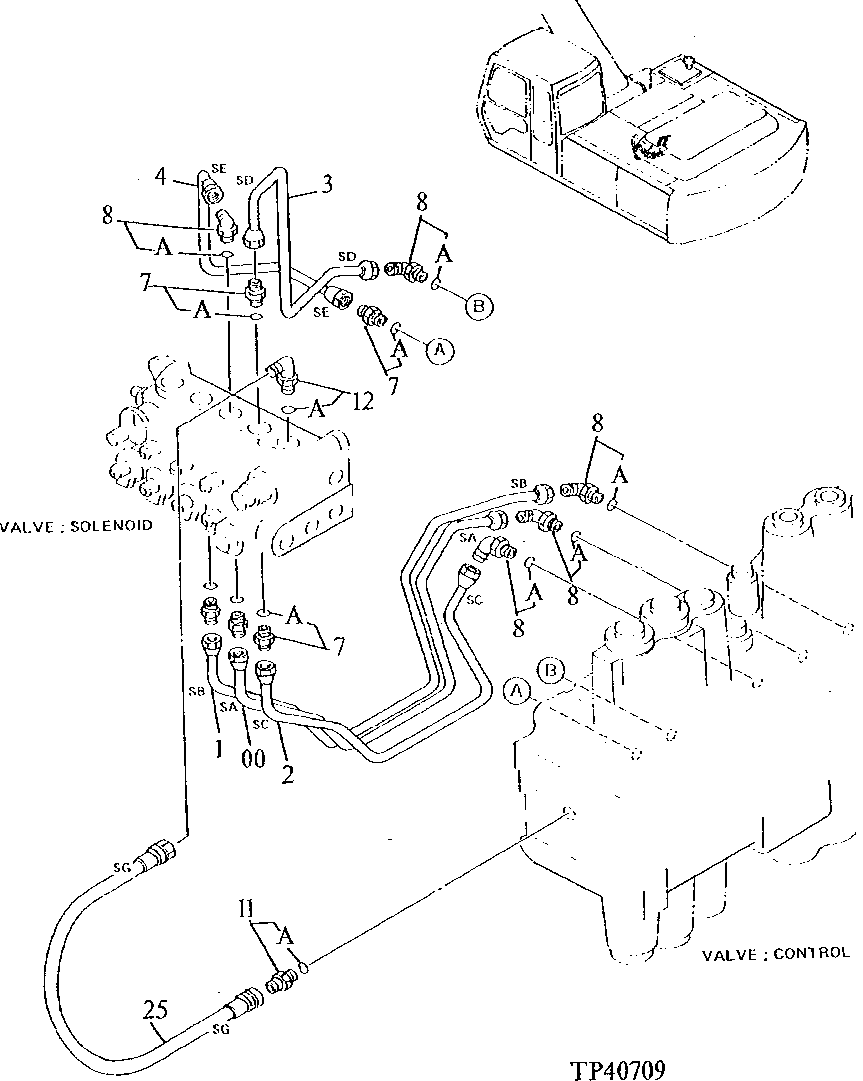

Запчасти John Deere 90ELC 245 - PILOT PIPINGS ( - 014999) 3360 HYDRAULIC SYSTEM

0

3051820

Line

(SUB FOR AT155228)

1шт.

1

3051821

Line

(SUB FOR AT155229)

1шт.

2

3051822

Line

(SUB FOR AT155230)

1шт.

3

3051823

Line

(SUB FOR AT155231)

1шт.

4

3051824

Line

(SUB FOR AT155232)

1шт.

7

4255304

Fitting

(SUB FOR AT155270)

5шт.

7A

M800650

Packing

1шт.

8

4293950

Fitting

(SUB FOR TH109468 OR AT160584)

5шт.

8A

M800650

Packing

1шт.

11

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

11A

M800650

Packing

1шт.

12

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

1шт.

12A

M800650

Packing

1шт.

25

AR86055

Hydraulic Hose

1шт.
