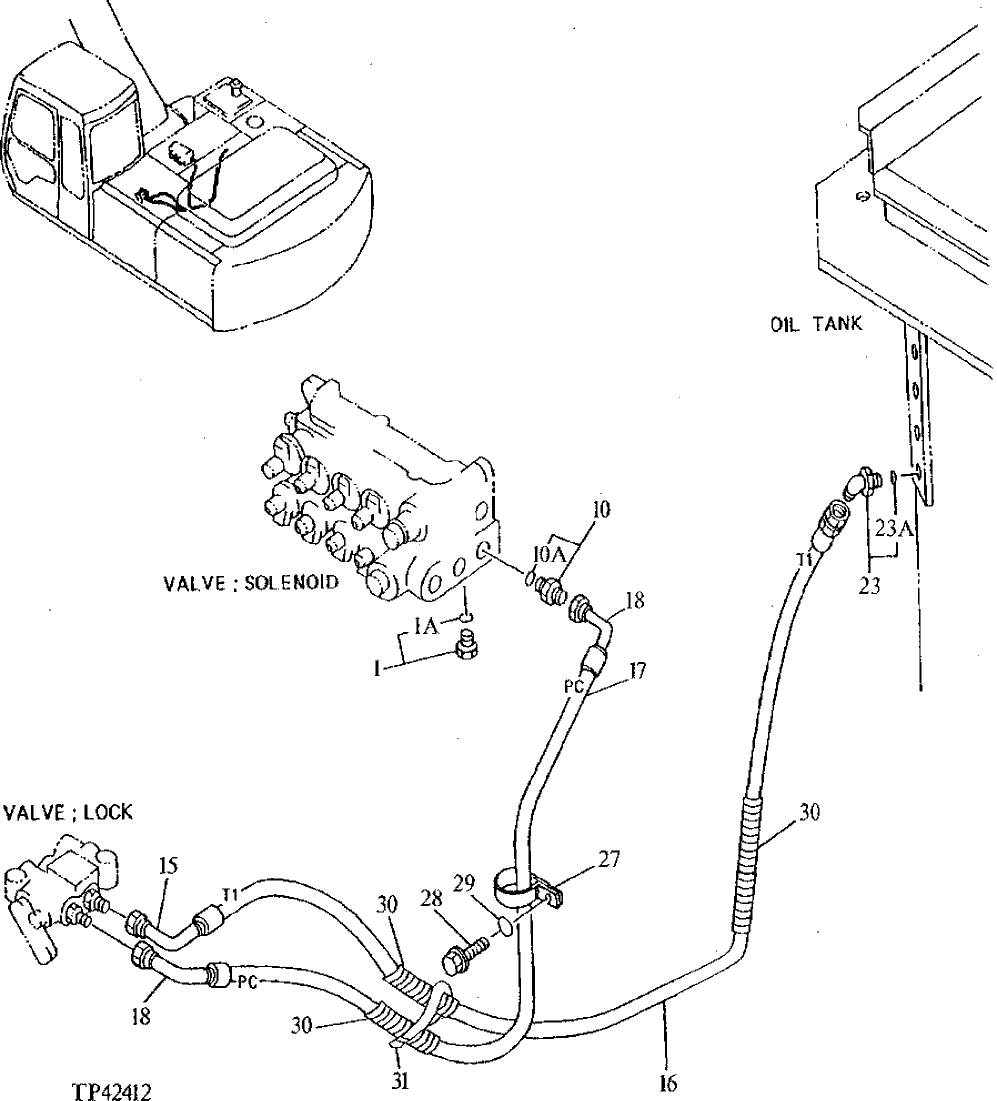

Запчасти John Deere 90ELC 244 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

AT318013

Drain Plug

SUB FOR 4093624, SUB FOR TH103949, SUB FOR TH102536

1шт.

1A

M800650

Packing

1шт.

10

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

10A

CH11570

O-Ring

1шт.

15

AE24616

Elbow Fitting

1шт.

16

AE42066

Hydraulic Hose

1шт.

17

AE42000

Hydraulic Hose

1шт.

18

AE24616

Elbow Fitting

2шт.

23

A852333

Elbow Fitting

SUB FOR TH101047, SUB FOR 4154671

1шт.

23A

CH11570

O-Ring

1шт.

27

XCL-19

Hose Clamp

SUB FOR TH108459 OR 4192035

1шт.

28

19M7938

Cap Screw

1шт.

29

12M7066

Lock Washer

1шт.

30

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

3шт.

31

H77698

Tie Band

1шт.
