Запчасти John Deere 90ELC 243 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

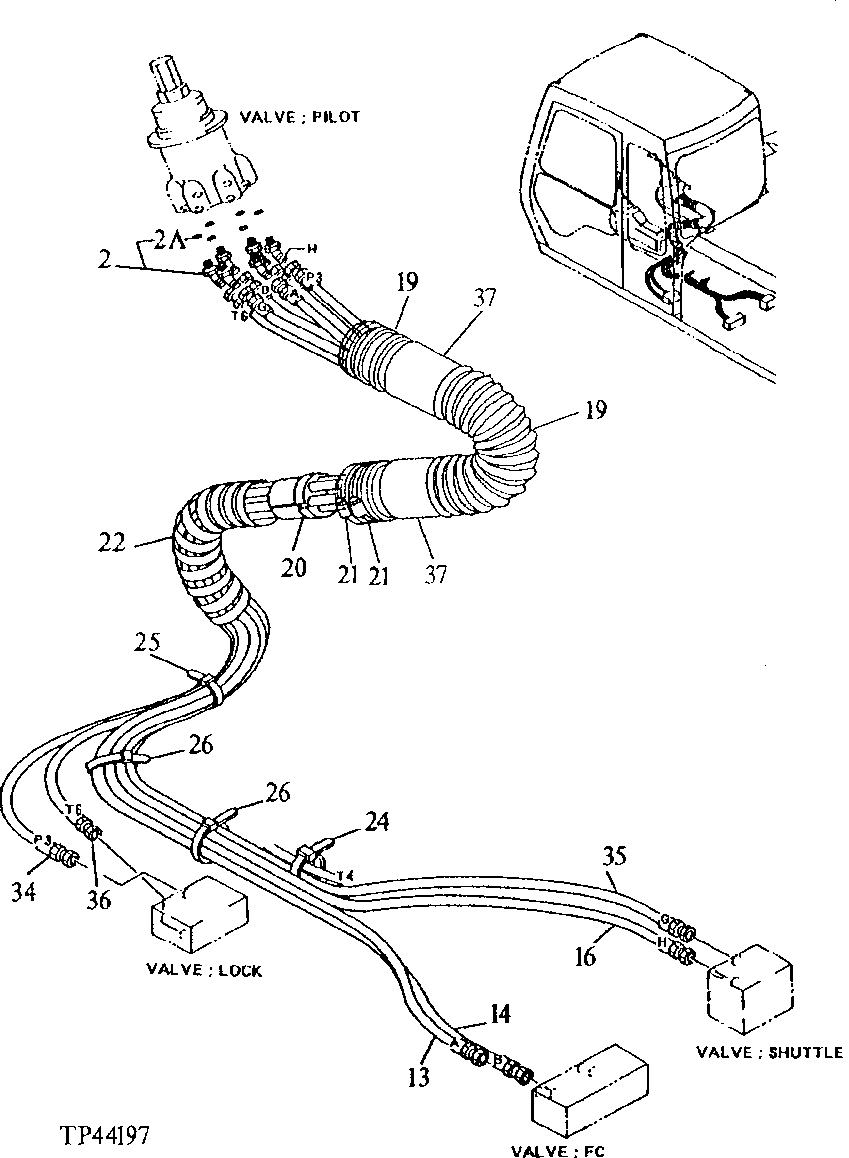

Схема запчастей John Deere 90ELC - 243 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

2

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

2A

M800650

Packing

1шт.

13

AT161996

Hydraulic Hose

(SUB FOR AE42000, THIS APPLICATION)

1шт.

14

AT161996

Hydraulic Hose

(SUB FOR AT130683, THIS APPLICATION)

1шт.

16

AT161996

Hydraulic Hose

(SUB FOR AE42000, THIS APPLICATION)

1шт.

19

4319234

Conduit

(SUB FOR AT154270)

1шт.

4333133

Tube

(SUB FOR AT202463)

1шт.

20

3056040

Stop

(SUB FOR AT154140)

1шт.

21

TY22472

Clamp

(SUB FOR AT145651)

2шт.

22

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

1шт.

24

H77698

Tie Band

(SUB FOR M88199)

1шт.

25

H77698

Tie Band

1шт.

26

H77698

Tie Band

2шт.

34

AT161995

Hydraulic Hose

(SUB FOR AT71731, THIS APPLICATION)

1шт.

35

AT161996

Hydraulic Hose

(SUB FOR AT130683, THIS APPLICATION)

1шт.

36

AT161995

Hydraulic Hose

(SUB FOR AT71731, THIS APPLICATION)

1шт.

37

4317953

Tube

(SUB FOR AT201250)

1шт.

4329965

Tube

(SUB FOR AT202328)

1шт.

Выбрано товаров: 18
