Запчасти John Deere 90ELC 242 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

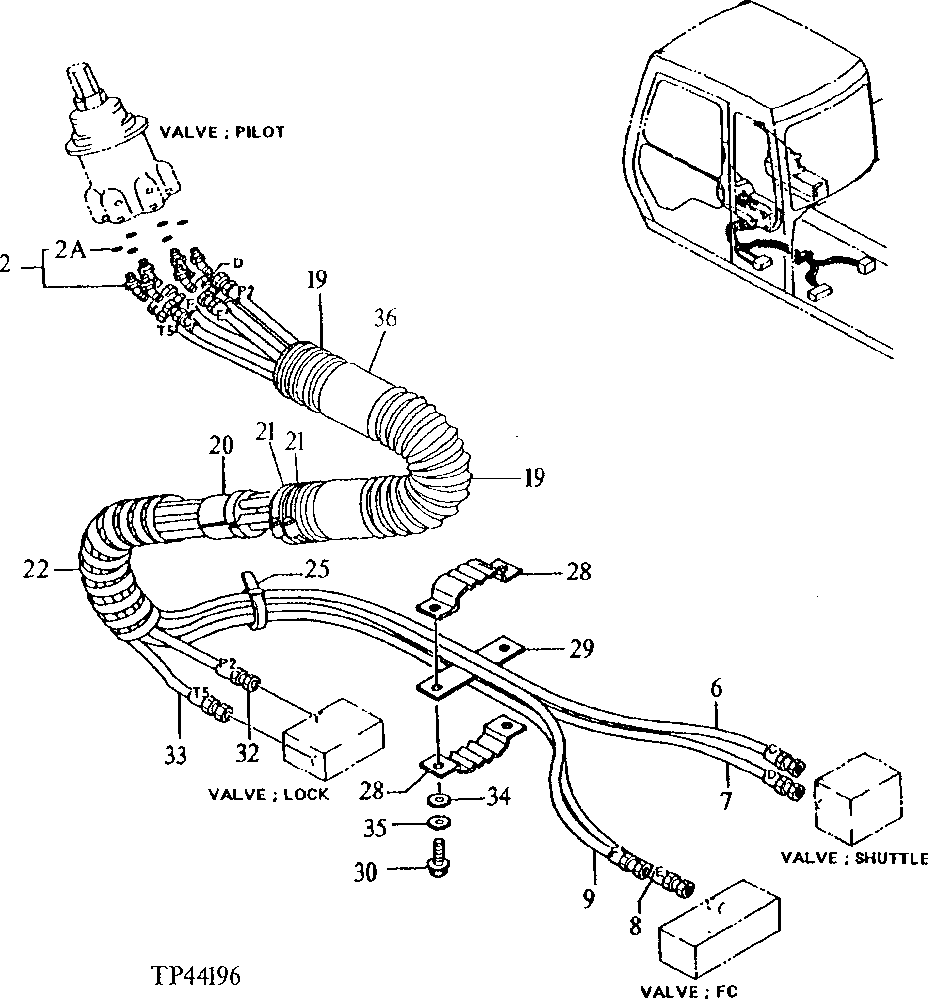

Схема запчастей John Deere 90ELC - 242 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

2

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

2A

M800650

Packing

1шт.

6

AT172468

Hydraulic Hose

(SUB FOR TH108468, THIS APPL ICATION ) (SUB FOR AT161992)

1шт.

7

AT172468

Hydraulic Hose

(SUB FOR TH108468, THIS APPL ICATION ) (SUB FOR AT161992)

1шт.

8

AT172468

Hydraulic Hose

(SUB FOR TH108468, THIS APPL ICATION ) (SUB FOR AT161992)

1шт.

9

AT172468

Hydraulic Hose

(SUB FOR TH108468, THIS APPL ICATION ) (SUB FOR AT161992)

1шт.

19

4319234

Conduit

(SUB FOR AT154270)

1шт.

4333133

Tube

(SUB FOR AT202463)

1шт.

20

3056040

Stop

(SUB FOR AT154140)

1шт.

21

TY22472

Clamp

(SUB FOR AT145651)

2шт.

22

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

1шт.

25

H77698

Tie Band

1шт.

28

9727638

Hose Clamp

(SUB FOR AT130505)

2шт.

29

9727636

Plate

(SUB FOR AT130504)

1шт.

30

19M7550

Cap Screw

2шт.

32

AT161994

Hose

(SUB FOR AT48717, THIS APPLICATION)

1шт.

33

AT161994

Hose

(SUB FOR AT46299, THIS APPLICATION)

1шт.

34

12M7066

Lock Washer

2шт.

35

24M7028

Washer

2шт.

36

4317953

Tube

(SUB FOR AT201250)

1шт.

4329965

Tube

(SUB FOR AT202328)

1шт.

Выбрано товаров: 21
