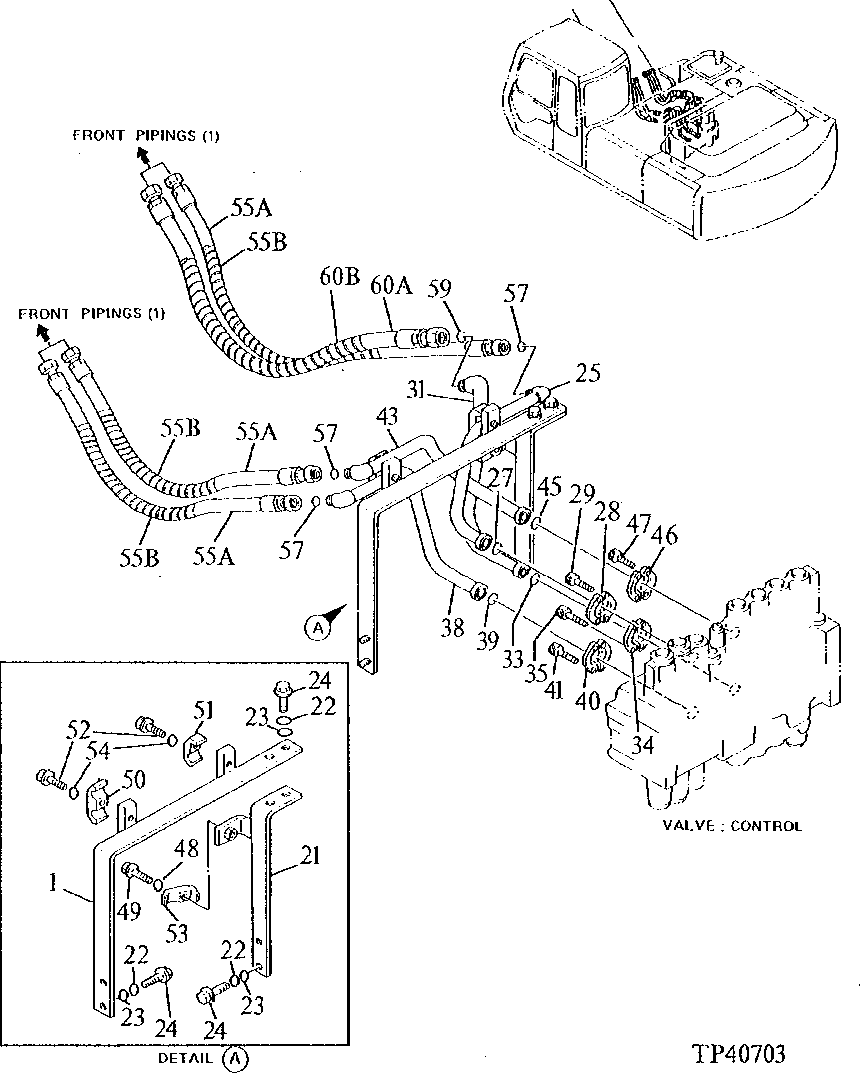

Запчасти John Deere 90ELC 238 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

1

8049203

Support

(SUB FOR AT155551)

1шт.

21

8049204

Support

(SUB FOR AT155552)

1шт.

22

12H301

Lock Washer

1/2"

6шт.

23

24M7047

Washer

13 X 24 X 2.500 mm

6шт.

24

19M7403

Cap Screw

M12 X 35

6шт.

25

8049205

Line

(SUB FOR AT155553)

1шт.

27

T59014

O-Ring

1шт.

28

R29424

Flange Fitting

2шт.

29

19M8337

Screw

M10 X 30

4шт.

31

8049206

Line

(SUB FOR AT155554)

1шт.

33

T78313

O-Ring

1шт.

34

H61354

Flange Fitting

2шт.

35

19M8337

Screw

M10 X 30

4шт.

38

8046757

Line

(SUB FOR AT155543)

1шт.

39

T59014

O-Ring

1шт.

40

R29424

Flange Fitting

2шт.

41

19M8337

Screw

M10 X 30

4шт.

43

8049207

Line

(SUB FOR AT155555)

1шт.

45

T59014

O-Ring

1шт.

46

R29424

Flange Fitting

2шт.

47

19M8337

Screw

M10 X 30

4шт.

48

12H301

Lock Washer

1/2"

1шт.

49

19M7753

Cap Screw

M12 X 70

1шт.

50

4285723

Clamp

(SUB FOR TH109071 OR 4189859)

1шт.

51

4190126

Clamp

(SUB FOR TH109830)

1шт.

52

19M7362

Cap Screw

M12 X 55

2шт.

53

4190127

Clamp

(SUB FOR TH108313)

1шт.

54

12H301

Lock Washer

1/2"

2шт.

55A

AT154876

Hydraulic Hose

(2 - BUCKET CYLINDER, 1 - ARM CYLINDER ROD END)

3шт.

55B

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

6шт.

57

T77858

O-Ring

3шт.

59

T76938

O-Ring

1шт.

60A

AT154877

Hydraulic Hose

(ARM CYLINDER HEAD END)

1шт.

60B

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

2шт.
